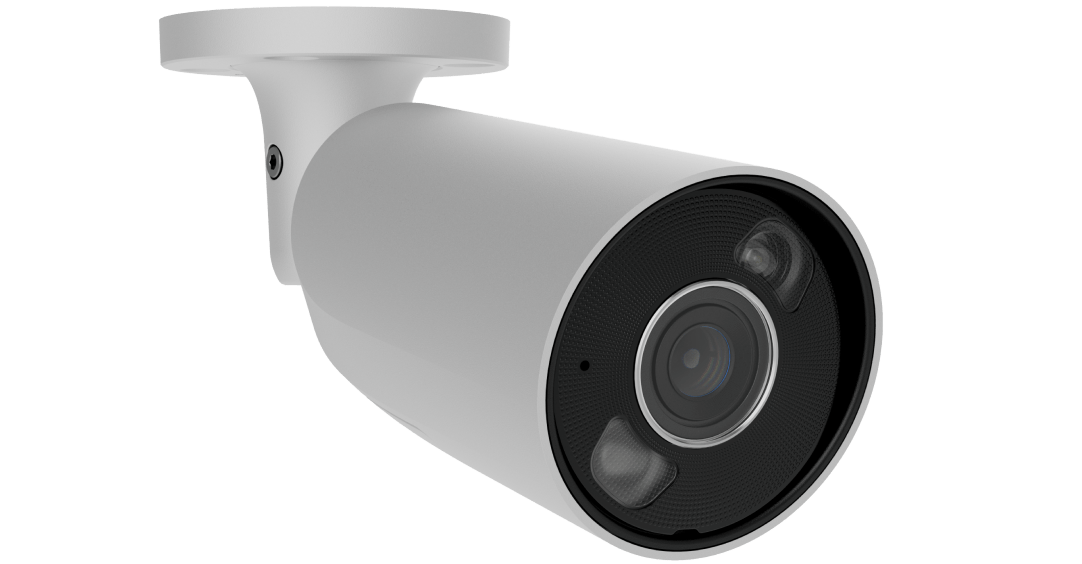

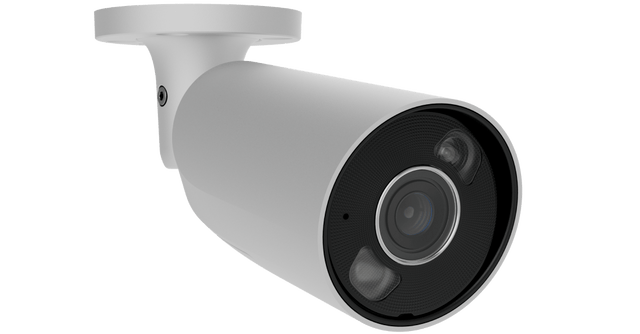

Ajax 126257.217.WH1 BulletCam HL Wired AI-powered IP Camera, 8MP, 2.8mm
About this product
The Ajax BulletCam HL (8 Mp/2.8 mm) is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. It records up to 8 MP (3840 × 2160) and its AI object detection recognises people, pets and vehicles.
Key features
- 8 MP CMOS image sensor, 1/2.7" type, with up to 8 MP (3840 × 2160) resolution
- 2.8 mm fixed lens, f/1.6, horizontal field of view 100–110°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m, with intelligent lighting control
- 120 dB (True WDR)
- AI object detection of people, pets and vehicles
- Built-in microphone that can record audio at the scene with the corresponding settings
- PoE (802.3at/af) or 12 V power
- IP66, IK08 enclosure, operating from −30 °C to +60 °C
Frequently asked questions
How far can the BulletCam HL (8 Mp/2.8 mm) see at night?
Its maximum illumination distance is up to 50 m with the white LED and up to 50 m with the IR LED. Intelligent lighting control adjusts the intensity of IR and white LEDs in real time to prevent overexposure.
Can it be powered over PoE?
Yes. It supports PoE standard 802.3at/af, with PoE power consumption of maximum: up to 8.1 W and average: up to 7.0 W. It can also run from a 12 V ± 20%, 1 A power supply unit.
Where are recordings stored?
On a microSD card in the camera or on an Ajax NVR. The camera supports microSD up to 256 GB, Class V30 or faster; the card is not included in the complete set.
What can the AI detect?
AI object detection recognises people, pets and vehicles, and the camera detects motion using software image frame analysis.
Is it suitable for outdoor installation?
Yes. It is for outdoor and indoor use, with protection class IP66, IK08 and an operating temperature range from −30 °C to +60 °C.
Does it record sound?
It has a built-in microphone; with the corresponding settings, the camera can record audio at the scene.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126257.217.WH1 |
| Manufacturer Part Number (MPN) | 126257.217.WH1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | Fixed |
| Lens focal type | Fixed |
| Field of view | Horizontal: 100–110°; vertical: 50–60°; diagonal: 125–135° |
| DORI distance | Detection: 90 m; Observation: 36 m; Recognition: 18 m; Identification: 9 m |
| Maximum illumination distance | White LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | Color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | More than 52 dB |
| Resolution (maximum) | 8 MP (3840 × 2160) |
| Frame rate | Up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | Conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | Maximum: up to 8.1 W; average: up to 7.0 W |
| Power supply unit | 12 V ± 20%, 1 A |
| 12 V DC power consumption | Maximum: up to 7.0 W; average: up to 6.0 W |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | From −30 °C to +60 °C |
| Operating humidity | Up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam HL (8 Mp/2.8 mm), installation template, installation kit, quick start guide |
| Colour | White |
