Ajax 126259.217.WH1 BulletCam HL Wired AI-powered IP Camera, 8MP, 4mm
Free Delivery
Save £36.31
About this product

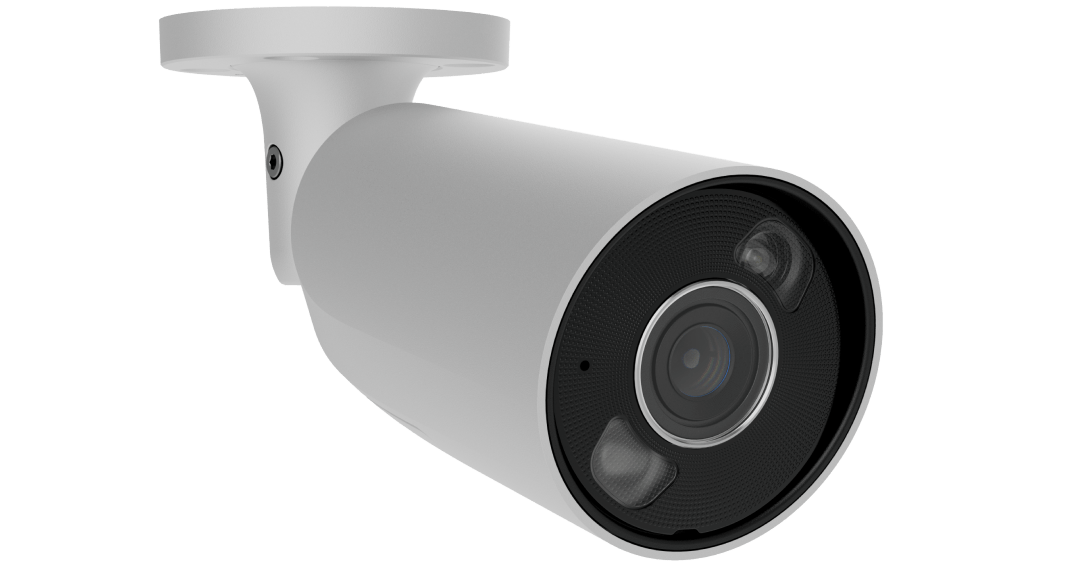

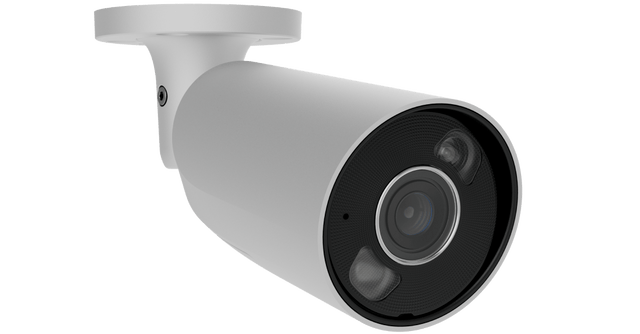

The Ajax 126259.217.WH1 is the BulletCam HL (8 Mp/4 mm) in White: a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. It has an 8 MP CMOS, 1/2.7" type sensor with a 4 mm lens, detects people, pets and vehicles with AI object detection, and has IR LED and white LED illumination up to 50 m.
Key features
- 8 MP CMOS, 1/2.7" type sensor with 4 mm fixed lens and f/1.6 maximum aperture
- Field of view horizontal: 75–85°, vertical: 40–50°
- Hybrid illumination: IR LED up to 50 m and white LED up to 50 m
- AI object detection for people, pets and vehicles
- 120 dB True WDR
- Built-in microphone: with the corresponding settings, the camera can record audio at the scene
- PoE (802.3at/af) or 12 V power supply
- IP66, IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How is the BulletCam HL (8 Mp/4 mm) powered?
Over PoE (802.3at/af) or from a 12 V⎓ ± 20%, 1 А power supply unit.
How far does its illumination reach?
Maximum illumination distance is up to 50 m with the IR LED and up to 50 m with the white LED.
What storage does it support?
Storage options are microSD and Ajax NVR. The camera supports microSD up to 256 GB, Class V30 or faster; the card is not included in the complete set.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with IP66, IK08 protection and an operating temperature range from −30 °C to +60 °C.
What can the AI object detection recognise?
People, pets and vehicles.
Does it support ONVIF?
Yes. The camera is conformant with ONVIF® Profile G and S.
Technical Details
Specifications
Brand
Ajax
Model
126259.217.WH1
Manufacturer Part Number (MPN)
126259.217.WH1
Image sensor
8 MP CMOS, 1/2.7" type
Lens focal length
4 mm
Maximum aperture
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115°
DORI distance
Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m
Maximum illumination distance
white LED: up to 50 m; IR LED: up to 50 m
Minimum illumination
color: 0.005 lx; B/W: 0 lx
Signal-to-noise ratio (SNR)
more than 52 dB
Resolution
8 MP (3840 × 2160); 6 MP (3072 × 1728); 5 MP (2592 × 1944); 5 MP (2944 × 1656); 5 MP (2880 × 1620); 4 MP (2560 × 1440); 3 MP (2304 × 1296); 2 MP (1920 × 1080); 0.6 MP (1024 × 576)
Frame rate
up to 20 fps
Image rotation
0°, 180°
Video codec
H.265, H.264
WDR
120 dB (True WDR)
Storage
microSD (up to 256 GB, Class V30 or faster, card not included); Ajax NVR
Audio codec
G711-ULAW, G711-ALAW, G726, G722
Motion detection
Software image frame analysis
AI object detection
People, Pets, Vehicles
Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
ONVIF®
conformant with ONVIF® Profile G and S
Video protocol
JetSparrow
Authentication
via Ajax Cloud
PoE standard
802.3at/af
PoE power consumption
maximum: up to 8.2 W; average: up to 7.0 W
Power supply unit
12 V⎓ ± 20%, 1 А
12 V DC power consumption
maximum: up to 7.2 W; average: up to 6.0 W
Dimensions
198 × 76 × 76 mm
Weight
550 g
Operating temperature range
from −30 °C to +60 °C
Operating humidity
up to 90%
Protection class
IP66, IK08
Complete set
BulletCam HL (8 Mp/4 mm); Installation template; Installation kit; Quick start guide
Colour
White
Specifications
| Brand | Ajax |
|---|---|
| Model | 126259.217.WH1 |
| Manufacturer Part Number (MPN) | 126259.217.WH1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160); 6 MP (3072 × 1728); 5 MP (2592 × 1944); 5 MP (2944 × 1656); 5 MP (2880 × 1620); 4 MP (2560 × 1440); 3 MP (2304 × 1296); 2 MP (1920 × 1080); 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| Motion detection | Software image frame analysis |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| Authentication | via Ajax Cloud |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 8.2 W; average: up to 7.0 W |
| Power supply unit | 12 V⎓ ± 20%, 1 А |
| 12 V DC power consumption | maximum: up to 7.2 W; average: up to 6.0 W |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam HL (8 Mp/4 mm); Installation template; Installation kit; Quick start guide |
| Colour | White |
