Ajax 126252.217.BL1 BulletCam HL Wired IP Camera, 5MP, 2.8mm
About this product

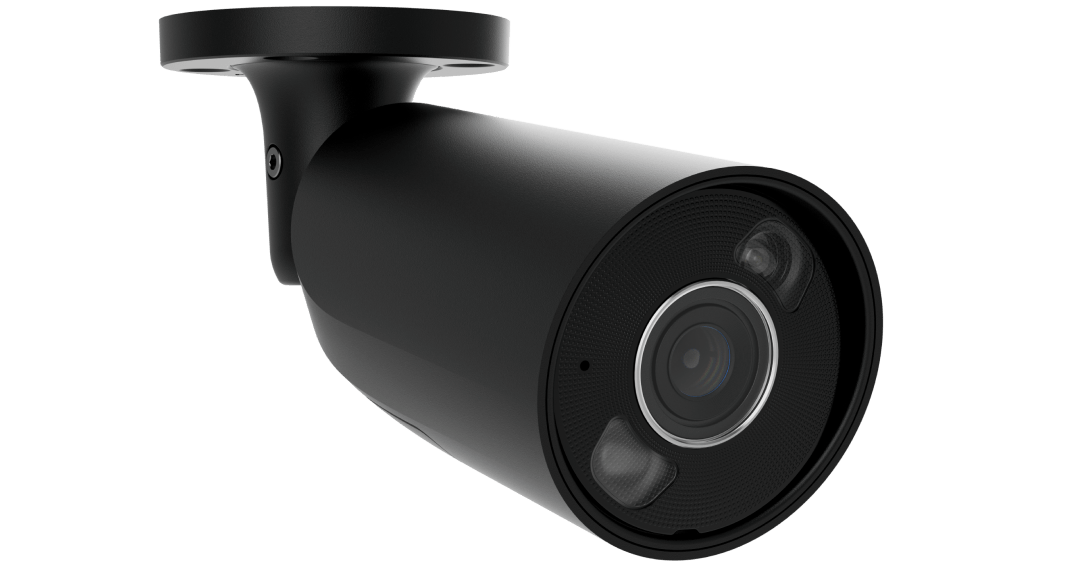

The Ajax BulletCam HL (5 Mp/2.8 mm) in black is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 5 MP (2880 × 1620) video, detects people, pets and vehicles with AI object detection, and stores footage on microSD or an Ajax NVR.
Key features
- 5 MP CMOS image sensor, 1/2.8" type, recording at 5 MP (2880 × 1620)
- 2.8 mm fixed lens, f/1.6 maximum aperture, horizontal field of view 100–110°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for recording audio at the scene, with the corresponding settings
- PoE (802.3at/af) or 12 V power supply
- IP66, IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How is the BulletCam HL (5 Mp/2.8 mm) powered?
It takes PoE (802.3at/af), with PoE power consumption of maximum up to 7.3 W, or a 12 V ± 20%, 1 A power supply unit.
Does it record to a memory card?
Yes. The camera supports microSD up to 256 GB; the card should be Class V30 or faster and is not included in the complete set. It can also record to an Ajax NVR.
How far can it see at night?
The maximum illumination distance is up to 50 m for the white LED and up to 50 m for the IR LED, and intelligent lighting control adjusts both in real time to prevent overexposure.
Can the camera record sound?
It has a built-in microphone; with the corresponding settings, the camera can record audio at the scene.
Does it work with ONVIF recorders?
The camera is conformant with ONVIF® Profile G and S.
What is in the box?
The complete set contains the BulletCam HL (5 Mp/2.8 mm), an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126252.217.BL1 |
| Manufacturer Part Number (MPN) | 126252.217.BL1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Resolution | 5 MP (2880 × 1620) |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 100–110°; vertical: 50–60°; diagonal: 125–135° |
| DORI distance | Detection: 65 m; Observation: 26 m; Recognition: 13 m; Identification: 6.5 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.3 W; average: up to 6.0 W |
| Power supply unit | 12 V ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 6.3 W; average: up to 5.1 W |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
