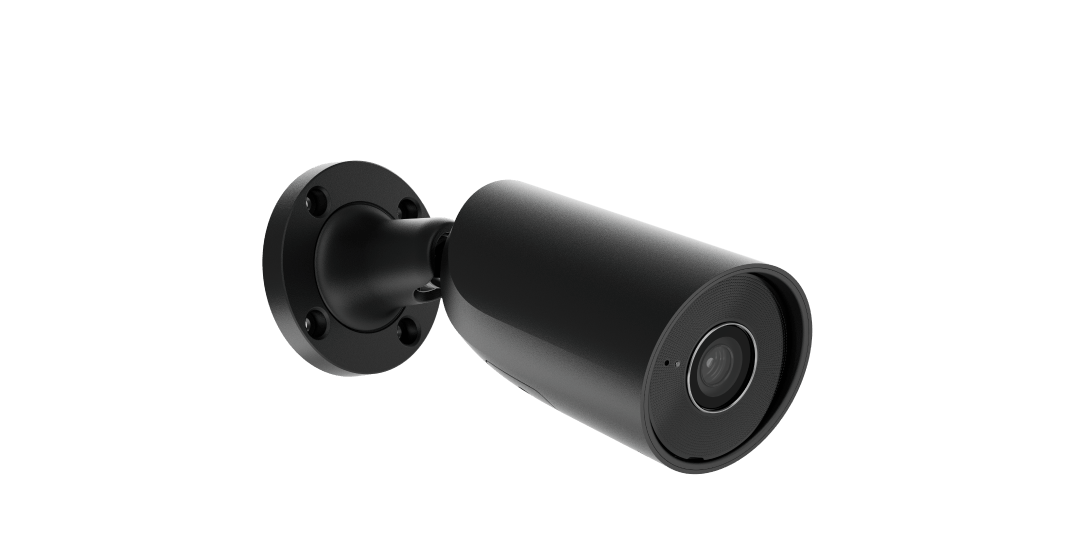

Ajax 79026.217.BL1 BulletCam Wired AI-powered IP Security Camera, 8MP, 2.8mm
About this product
The Ajax BulletCam (8 Mp/2.8 mm), article code 79026.217.BL1, is a wired AI-powered IP security camera with a 2.8 mm lens, IR illumination, True WDR, a microphone and PoE or 12 V power, for outdoor and indoor use. It records to a microSD card or an Ajax NVR, and Ajax detectors can trigger it to start recording through a configured scenario, with the event sent to the mobile or desktop monitoring app.
Key features
- 8 MP CMOS image sensor, 1/2.8" type, with resolution up to 8 MP (3840 × 2160)
- 2.8 mm fixed lens, f/1.6 maximum aperture, horizontal field of view 100–110°
- IR LED illumination up to 50 m with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V DC, 1 A power supply unit
- IP66, IK08 protection class
Frequently asked questions
Does the Ajax BulletCam (8 Mp/2.8 mm) support PoE?
Yes. It supports PoE to 802.3at/af, 36–57 V, Class 3, and can also run from a 12 V DC, 1 A power supply unit. Average power consumption is 12 W.
How far can the BulletCam see in the dark?
IR LED illumination reaches up to 50 m, and intelligent lighting control adjusts IR intensity in real time to prevent overexposure.
Where does the camera store video?
On a microSD card of up to 256 GB (Class V30 or faster) or on an Ajax NVR. The memory card is not included in the complete set.
Can the BulletCam be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What can the AI object detection recognise?
AI object detection covers people, pets and vehicles. Motion detection uses software image frame analysis.
What comes in the box?
The BulletCam (8 Mp/2.8 mm), an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 79026.217.BL1 |
| Manufacturer Part Number (MPN) | 79026.217.BL1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 90 m, Observation: 36 m, Recognition: 18 m, Identification: 9 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V DC, 1 A |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam (8 Mp/2.8 mm), installation template, installation kit, quick start guide |
