Ajax 79024.217.BL1 BulletCam Wired IP Security Camera, 5MP, 2.8mm
About this product

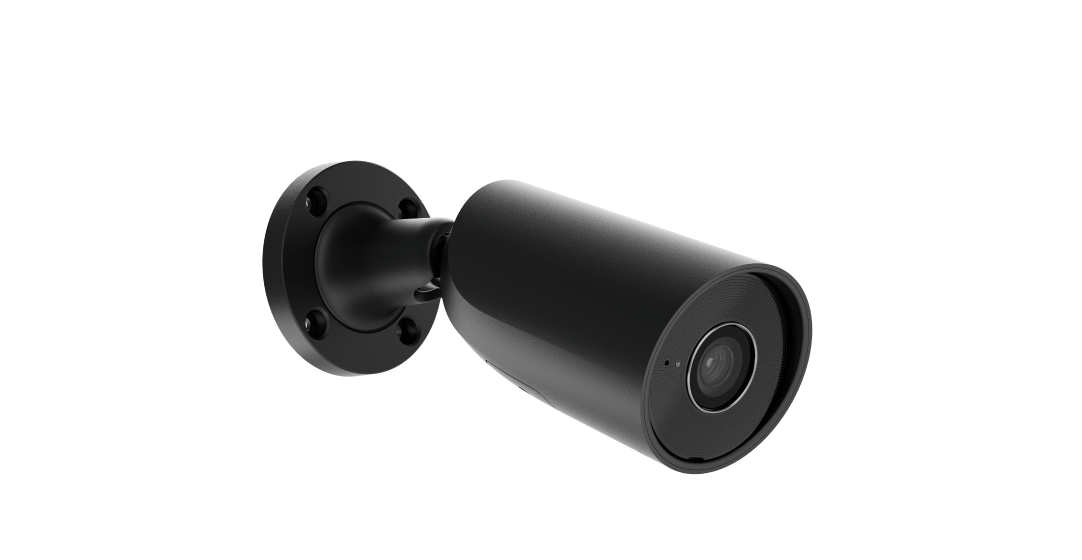

The Ajax BulletCam (5 Mp/2.8 mm) (79024.217.BL1, Black) is a wired AI-powered IP security camera with a 110° viewing angle, IR illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. In an Ajax system it can be set so that Ajax detectors trigger it to start recording, with the recorded event sent to the mobile or desktop monitoring app.
Key features
- 5 MP CMOS, 1/2.7" type image sensor with a 2.8 mm fixed lens, f/1.6
- Field of view horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135°
- IR LED maximum illumination distance up to 60 m, with smart IR illumination up to 50 m
- True WDR of 120 dB
- AI object detection of people, pets and vehicles
- Built-in microphone that can record audio at the scene, with the corresponding settings
- Powered by PoE (802.3at/af, 36–57 V, Class 3) or a 12 V power supply unit
- IP66, IK08 protection class
Frequently asked questions
How is the BulletCam (5 Mp/2.8 mm) powered?
By PoE (802.3at/af, 36–57 V, Class 3) or a power supply unit rated 12 V⎓, 1 А. Average power consumption is 12 W.
How far can it see in the dark?
Its maximum illumination distance is IR LED: up to 60 m. Smart IR illumination is rated up to 50 m and adjusts intensity automatically in real time to avoid overexposure.
Where are recordings stored?
On a microSD card or an Ajax NVR. The camera supports microSD up to 256 GB; the card should be Class V30 or faster and is not included in the complete set.
Can it be used outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
Does it work with Ajax alarm detectors?
Yes. A scenario can be configured so that Ajax detectors trigger selected cameras to start recording, and the recorded event is sent straight to the mobile or desktop monitoring app.
What is in the box?
The BulletCam (5 Mp/2.8 mm), an installation template, an installation kit and a quick start guide. A microSD card is not included.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 79024.217.BL1 |
| Manufacturer Part Number (MPN) | 79024.217.BL1 |
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 65 m, Observation: 26 m, Recognition: 13 m, Identification: 6.5 m |
| Maximum illumination distance | IR LED: up to 60 m |
| Smart IR illumination | up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620) / 4 MP (2560 × 1440) / 3 MP (2304 × 1296) / 2 MP (1920 × 1080) / 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| True WDR | 120 dB |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 А |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
