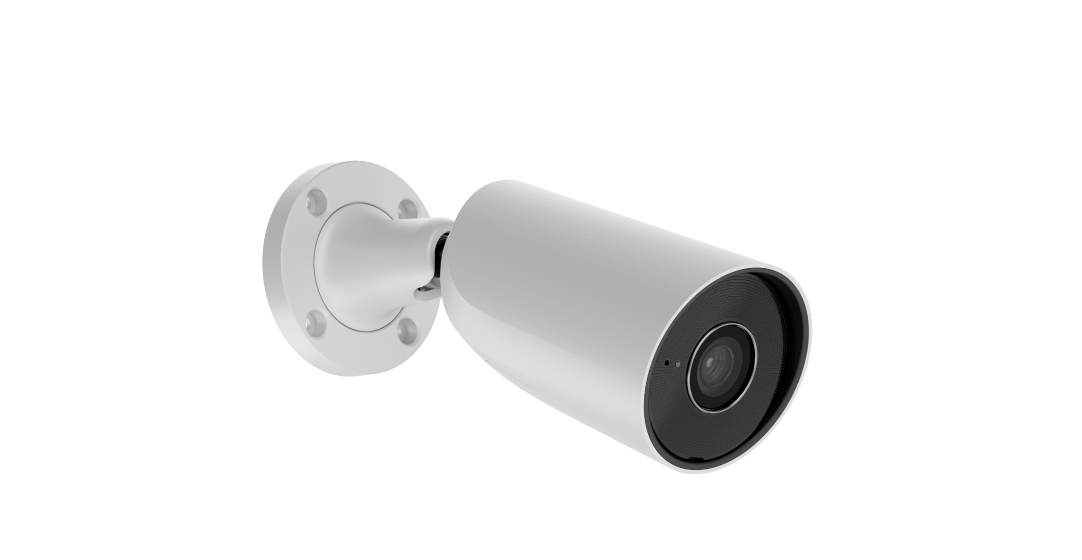

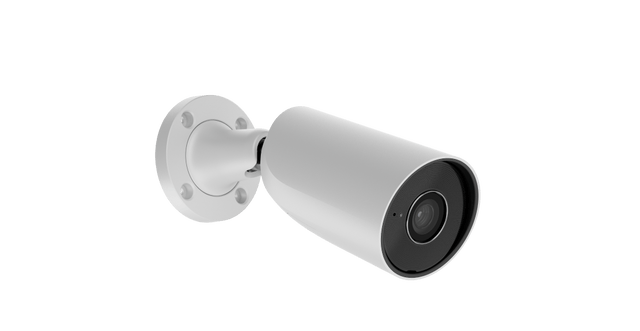

Ajax 79031.217.WH1 BulletCam Wired IP Security Camera, 8MP, 4mm
About this product
The Ajax BulletCam (8 Mp/4 mm) (79031.217.WH1) is a wired AI-powered IP security camera with an 85° viewing angle, IR illumination, True WDR, microphone and PoE/12 V, for outdoor and indoor use. It pairs an 8 MP CMOS sensor with a 4 mm fixed lens, detects people, pets and vehicles with AI object detection, and has IR LED illumination up to 50 m.
Key features
- 8 MP CMOS image sensor, 1/2.8" type
- 4 mm fixed lens, f/1.6 maximum aperture; horizontal field of view 75–85°
- IR LED illumination up to 50 m with smart intensity adjustment to avoid overexposure
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for recording audio at the scene, with the corresponding settings
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V DC, 1 A power supply unit
- IP66 and IK08 protection; works from −30 °C to +60 °C
Frequently asked questions
How far can it see at night?
IR LED illumination reaches up to 50 m, and the intensity adjusts automatically in real time to avoid overexposure.
How is it powered?
By PoE (802.3at/af, 36–57 V, Class 3) or a 12 V DC, 1 A power supply unit. Average power consumption is 12 W.
Where is the video stored?
On a microSD card up to 256 GB (Class V30 or faster) or on an Ajax NVR. The memory card is not included in the complete set.

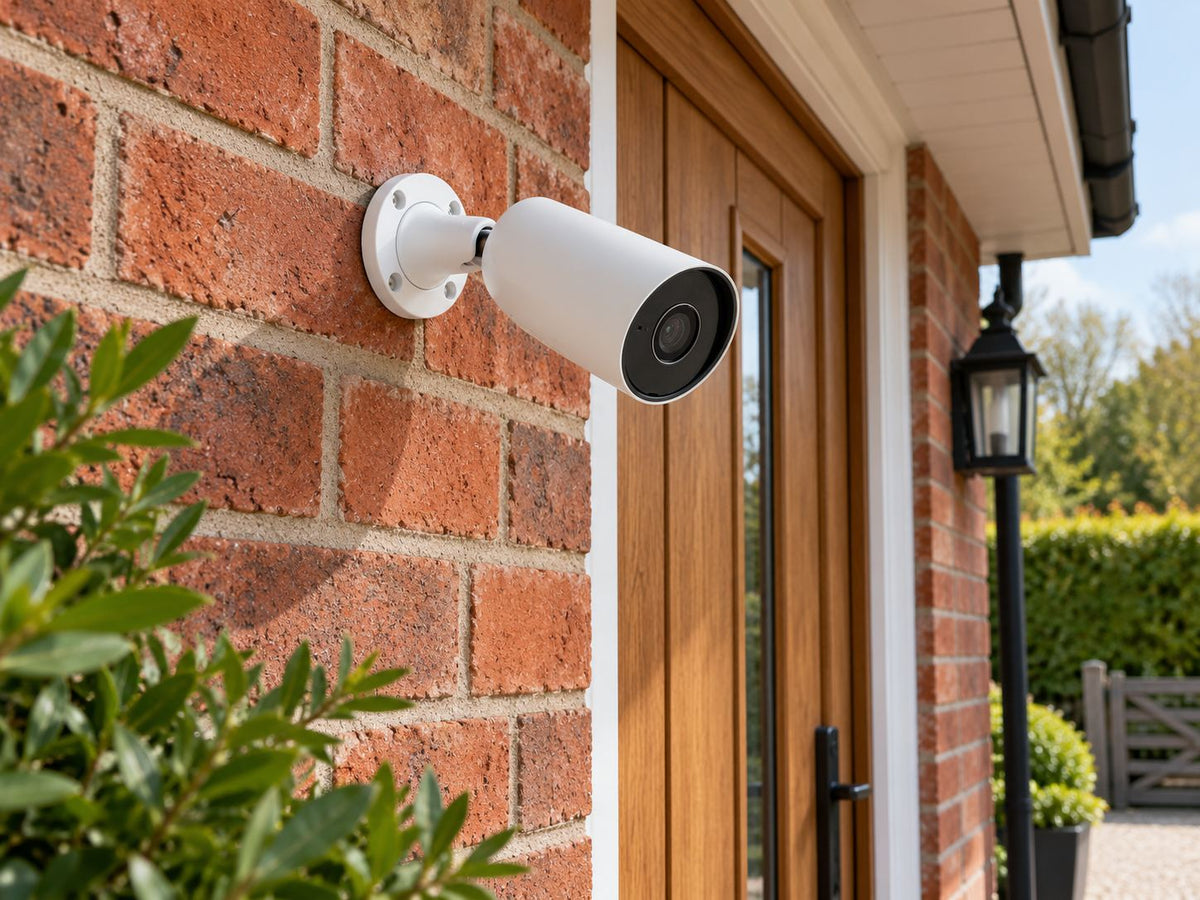

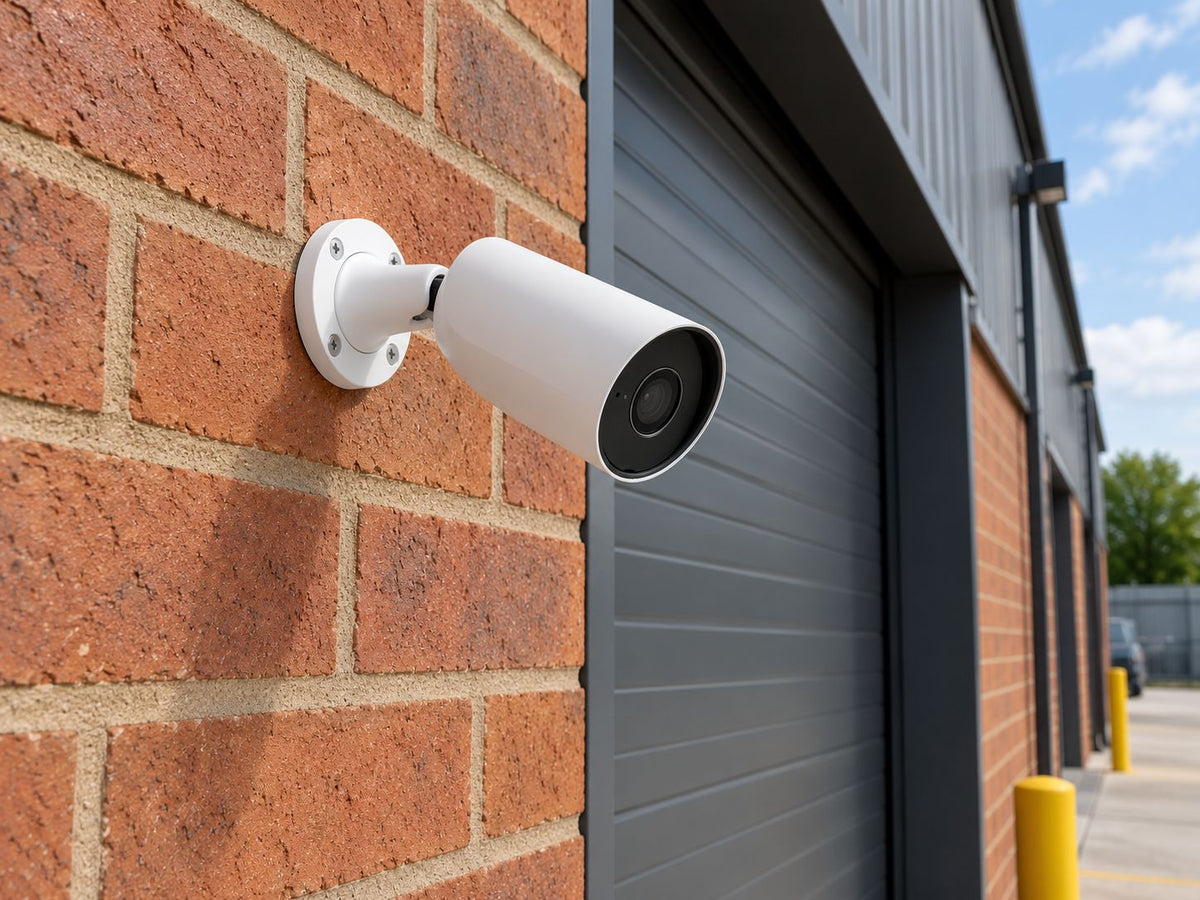

Can it be installed outdoors?
Yes. It is for outdoor and indoor use, rated IP66 and IK08, and works from −30 °C to +60 °C.
What can the AI detect?
AI object detection recognises people, pets and vehicles.
Does it record sound?
Yes. It has a built-in microphone, and with the corresponding settings the camera can record audio at the scene.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 79031.217.WH1 |
| Manufacturer Part Number (MPN) | 79031.217.WH1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 117.5 m, Observation: 47 m, Recognition: 23.5 m, Identification: 11.6 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160), 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V DC, 1 A |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam (8 Mp/4 mm), Installation template, Installation kit, Quick start guide |
| Colour | White |
