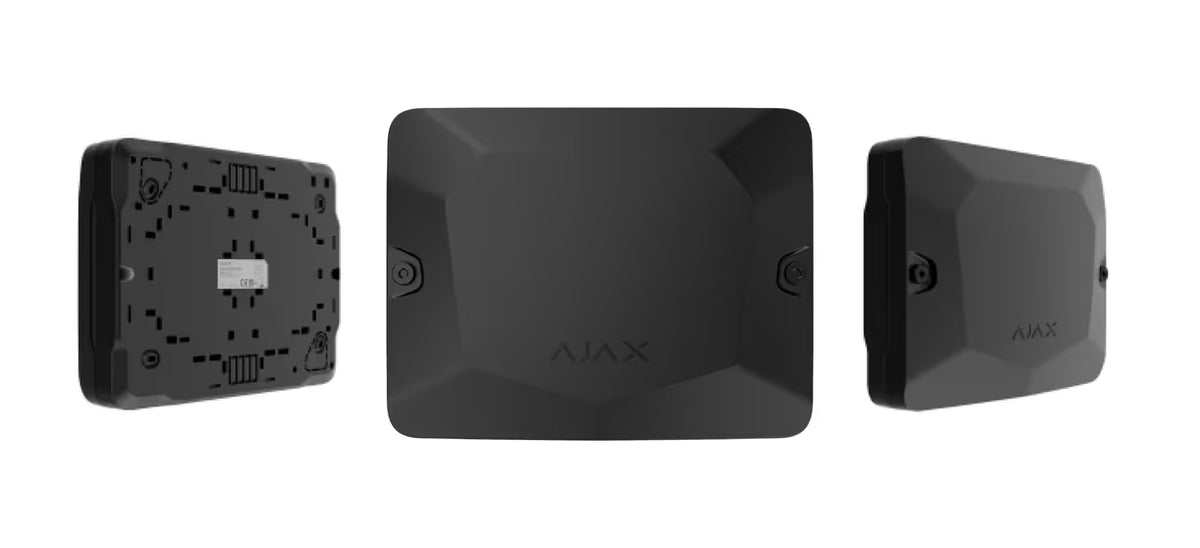

Ajax 62947.186.BL Case B (175) Fibra Module Casing, Holds 2 Devices, Black
About this product
The Ajax Case B (175) is a black casing for one or two Fibra modules, compatible with Superior LineSplit Fibra, Superior LineProtect Fibra and Superior MultiRelay Fibra. It secures the modules on plastic latches, protects them with an included tamper board, and is designed for indoor use only.
Key features
- Houses 2 devices; Case A (106), Case C (260) and Case D (430) suit a different number of devices
- Tamper board included, protecting the installed devices from sabotage
- Plastic latches to secure devices, which slide to release a device
- Devices and lid can each be rotated by 180° during installation
- Built-in bubble level to check the inclination angle of the casing
- Recesses for drilling Ø16 mm or Ø20 mm holes
- Cable fasteners to hold the cables together with ties
- Dimensions 175 × 225 × 57 mm, weight 414 g
Frequently asked questions
How many Fibra modules does the Ajax Case B (175) hold?
Case B (175) holds 2 devices: it is a casing for one or two Fibra modules.
Which Ajax modules fit Case B (175)?
Compatibility covers Superior LineSplit Fibra, Superior LineProtect Fibra and Superior MultiRelay Fibra.
Can Case B (175) be installed outdoors?
No. The casing is designed for indoor use only.
Is tamper protection included?
Yes. A tamper board is included in the complete set; it connects to one of the devices and protects the installed devices from sabotage.
What is in the box?
The complete set is Case B (175), a tamper board, an installation kit and a quick start guide.
What if a different number of devices is needed?
Choose another model with the appropriate number of slots: Case A (106), Case C (260) or Case D (430).
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 62947.186.BL |
| Manufacturer Part Number (MPN) | 62947.186.BL |
| Compatibility | Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra |
| Number of devices | 2 |
| Recesses for drilling | Ø16 mm or Ø20 mm |
| Device rotation | by 180° |
| Lid rotation | by 180° |
| Holding screws | in the casing lid |
| Tamper board | Included |
| Dimensions | 175 × 225 × 57 mm |
| Weight | 414 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Use | Indoor use only |
| Colour | Black |
| Complete set | Case B (175), tamper board, installation kit, quick start guide |
