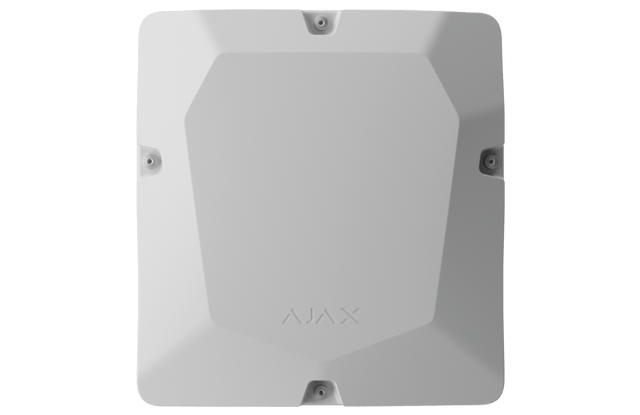

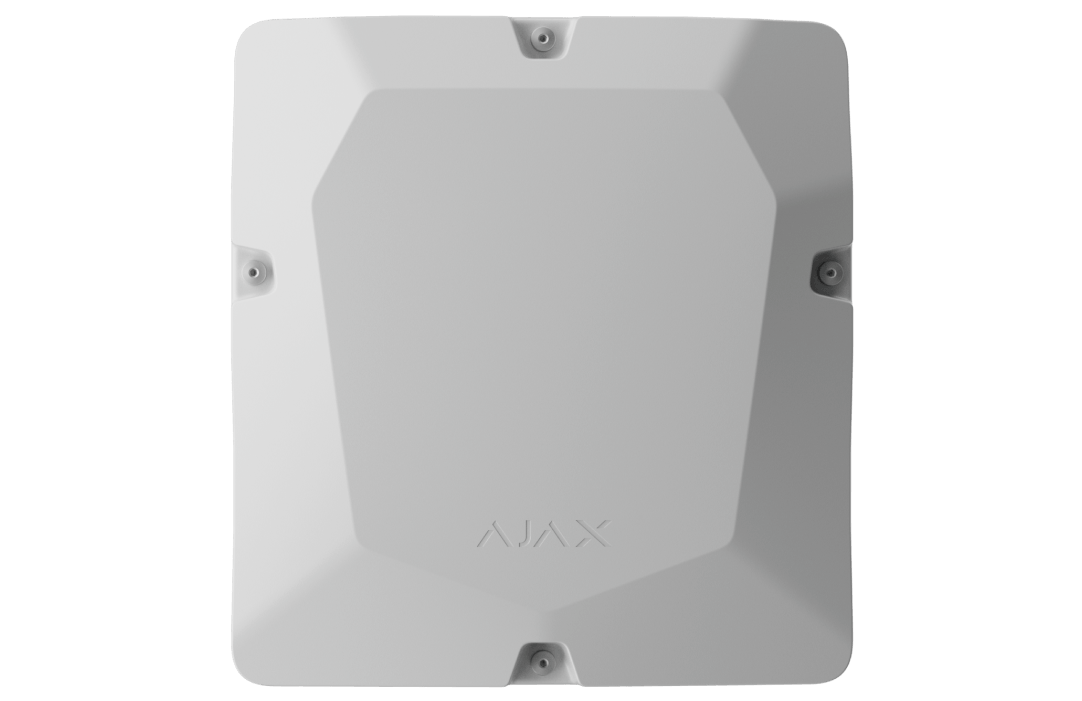

Ajax 65976.186.WH Case D (430) Module Casing, Up to 8 Devices, 430 × 400 × 133 mm
About this product
The Ajax Case D (430) (65976.186.WH, White) is a casing for up to eight Ajax modules and two 18 Ah batteries. It comes with a tamper board that connects to one of the installed devices and protects them from sabotage, and it is designed for indoor use only.
Key features
- Holds up to 8 devices
- Holders for batteries up to 18 Ah at the bottom of the casing, with a holding stripe to prevent accidental dislodgement
- Tamper board included in the complete set to protect the installed devices from sabotage
- Complete set includes 4 Module Holder (type A) for Superior LineSplit Fibra, Superior LineProtect Fibra and Superior MultiRelay Fibra modules
- Plastic rails secure Superior LineSupply Fibra with no holders required
- Devices can be rotated by 180° for two fixation options
- Recesses for drilling at Ø32 mm, Ø40 mm, or Ø63 mm
- Bubble level, wider holes and lid latches to help during installation
Frequently asked questions
How many Ajax modules fit in Case D (430)?
It holds up to 8 devices. For a different number, Ajax offers Case A (106), Case B (175) and Case C (260).
What batteries can it hold?
It has holders for batteries up to 18 Ah at the bottom of the casing, and is described as a casing for two 18 Ah batteries. A holding stripe prevents accidental dislodgement of the battery.
Which Ajax devices is it compatible with?
Ajax lists Superior MultiTransmitter Fibra (without casing) with battery up to 7 Ah, and Superior LineSplit Fibra, Superior LineProtect Fibra, Superior MultiRelay Fibra and Superior LineSupply Fibra with batteries up to 18 Ah.
What is in the box?
The complete set is Case D (430), a tamper board, a holding stripe for a battery, Module Holder (type A) — 4 pcs., an installation kit and a quick start guide.
Can it be installed outdoors?
No. The device is designed for indoor use only, with an operating temperature range from −10 °C to +40 °C and operating humidity up to 75%.
How big and heavy is the white version?
It measures 430 × 400 × 133 mm, and the white Case weighs 3,381 g.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 65976.186.WH |
| Manufacturer Part Number (MPN) | 65976.186.WH |
| Number of devices | up to 8 |
| Holders for batteries | up to 18 Ah |
| Device rotation | by 180° |
| Recesses for drilling | Ø32 mm, Ø40 mm, or Ø63 mm |
| Dimensions | 430 × 400 × 133 mm |
| Weight of the white Case | 3,381 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Complete set | Case D (430); Tamper board; Holding stripe for a battery; Module Holder (type A) — 4 pcs.; Installation kit; Quick start guide |
| Colour | White |
