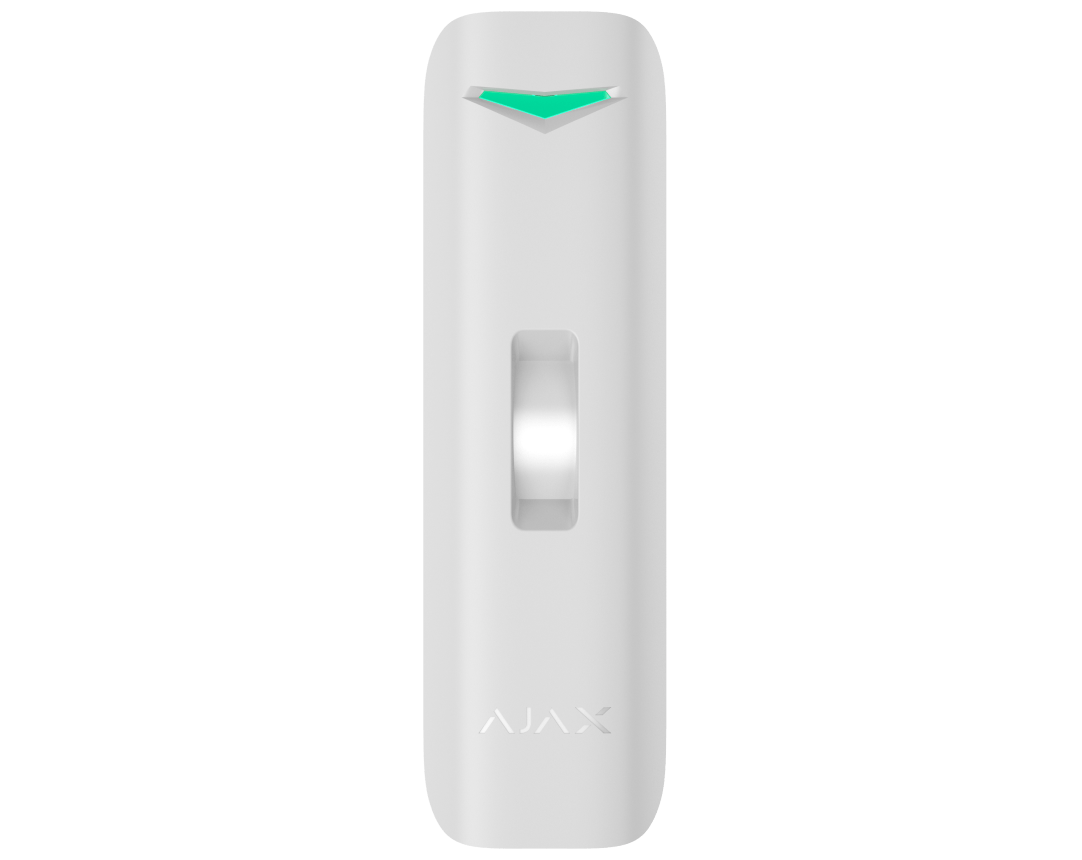

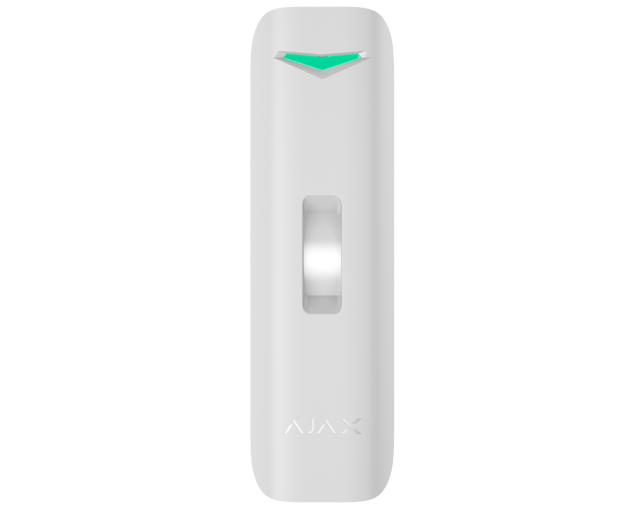

Ajax 130273.345.WH1 Curtain Outdoor Mini Jeweller Motion Detector, Wireless Dual-Technology, White
About this product
The Ajax Curtain Outdoor Mini Jeweller is a wireless dual-technology curtain motion detector for outdoor and indoor use. It pairs 1 × PIR sensor with 1 × K-band microwave sensor to prevent false alarms caused by thermal interference, and reports to a hub over Jeweller at up to 1,700 m in an open space.
Key features
- Dual-technology detection: 1 × PIR sensor and 1 × K-band microwave sensor (24 GHz)
- Curtain detection zone: horizontal 15°, vertical 100°
- Motion detection distance up to 5 m when installed at a height of 1 m
- Pet immunity up to 70 cm in height when installed at 1 meter with the slider set to the Pet position
- Anti-masking system detects attempts to block the detector view
- Jeweller radio communication range up to 1,700 m in an open space
- 2 × CR123A batteries (pre-installed), calculated battery life up to 3 years
- IP55 protection class, operating from −25 °C to +60 °C
Frequently asked questions
What area does the Curtain Outdoor Mini Jeweller cover?
It detects motion up to 5 m away when installed at a height of 1 m, with motion detection angles of horizontal 15° and vertical 100°.
Is the detector pet-immune?
Yes, for pets up to 70 cm in height (weight irrelevant), when it is installed at a height of 1 meter and the slider on its enclosure is set to the Pet position.
What batteries does it use and how long do they last?
It uses 2 × CR123A batteries, pre-installed, with a calculated battery life of up to 3 years.
Can it be installed outdoors?
Yes. The device is designed for indoor and outdoor use, has an IP55 protection class and operates from −25 °C to +60 °C at humidity up to 95%.
How far can the detector be from the hub?
Up to 1,700 m between the detector and a hub (or a range extender) in an open space, over Jeweller.
At what height should it be mounted?
The recommended installation height is up to 5 m on the ceiling and 1 m on the side, depending on the protected area size. A SmartBracket mounting panel and an angle mount are in the complete set.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 130273.345.WH1 |
| Manufacturer Part Number (MPN) | 130273.345.WH1 |
| Sensitive elements | 1 × PIR sensor, 1 × K-band microwave sensor |
| Microwave operation frequency | 24 GHz |
| Motion detection distance | up to 5 m (when installed at a height of 1 m) |
| Motion detection angles | horizontal: 15°, vertical: 100° |
| Motion detection speed | 0.3 to 2.0 m/s |
| Sensitivity | 5 levels |
| Pet immunity | height: up to 70 cm, weight: irrelevant (installed at 1 meter, slider set to Pet) |
| False alarm prevention | dual motion detection technology, SmartDetect |
| Communication technology | Jeweller |
| Radio communication range | up to 1,700 m (in an open space) |
| Radio signal modulation | GFSK |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Communication loss detection | after 36 s (depends on Jeweller or Jeweller/Fibra settings) |
| Battery | 2 × CR123A (pre-installed) |
| Calculated battery life | up to 3 years |
| Dimensions of detector | 145 × 32 × 43 mm |
| Dimensions of detector with angle mount | 145 × 44 × 54 mm |
| Weight of detector | 130 g |
| Weight of angle mount | 20 g |
| Operating temperature range | from −25 °C to +60 °C |
| Operating humidity | up to 95% |
| Protection class | IP55 |
| Complete set | Curtain Outdoor Mini Jeweller, SmartBracket mounting panel, 2 × CR123A battery (pre-installed), Angle mount, Installation kit, Quick start guide |
| Colour | White |
