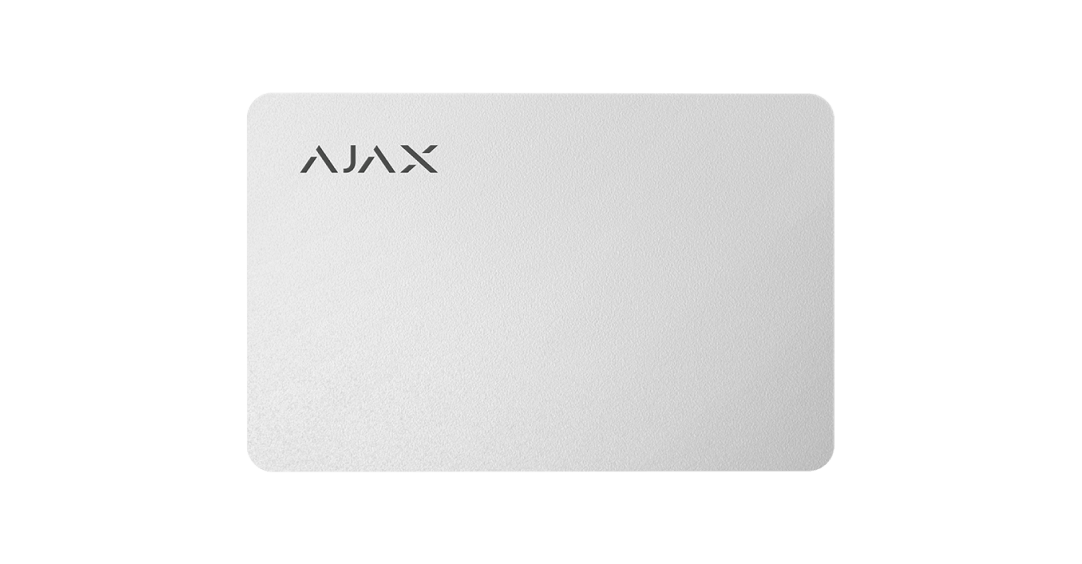

Ajax 38221.89.WH DESFire Contactless Card, Set of 100, White
About this product
The Ajax Pass (38221.89.WH) is a contactless card for security control on Ajax security systems, in a set of 100 white cards. Each card can be given its own name and access permissions in an Ajax app, and it works with KeyPad Plus Jeweller, KeyPad TouchScreen Jeweller, Superior KeyPad TouchScreen Fibra and Superior KeyPad Plus Jeweller.
Key features
- DESFire® contactless technology to the ISO 14443-A (13.56 MHz) operating standard
- Triple DES encryption and AES hardware encryption with a 128-bit key
- One Pass card can be paired with up to 13 Ajax hubs
- Name and access permissions set for each card in an Ajax app
- Sabotage protection: authentication and protection from signal interception
- Card size 86 × 54 × 0.8 mm, weight 6 g
- Set of 100 Pass cards in white
Frequently asked questions
Which Ajax keypads does the Pass card work with?
Pass is compatible with KeyPad Plus Jeweller, KeyPad TouchScreen Jeweller, Superior KeyPad TouchScreen Fibra and Superior KeyPad Plus Jeweller.
How many Ajax hubs can one Pass card be paired with?
One Pass card can be paired with up to 13 Ajax hubs.
How many cards come in this set, and what colour are they?
This set contains 100 Pass cards in white, along with a quick start guide.
What size is the Pass card?
Each Pass card measures 86 × 54 × 0.8 mm and weighs 6 g.
How is the Pass card protected against tampering?
Pass uses Triple DES encryption and AES hardware encryption with a 128-bit key, with authentication and protection from signal interception.
Can each card be assigned to a named user?
Yes. The name and access permissions for each card are set in an Ajax app.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 38221.89.WH |
| Manufacturer Part Number (MPN) | 38221.89.WH |
| Communication technology | DESFire® |
| Operating standard | ISO 14443-A (13.56 MHz) |
| Encryption | Triple DES encryption and AES hardware encryption with 128-bit key |
| Devices compatibility | KeyPad Plus Jeweller, KeyPad TouchScreen Jeweller, Superior KeyPad TouchScreen Fibra, Superior KeyPad Plus Jeweller |
| Ajax hubs | up to 13 |
| Sabotage protection | Authentication, protection from signal interception |
| Dimensions | 86 × 54 × 0.8 mm |
| Weight | 6 g |
| Operating temperature range | from –10 °C to +40 °C |
| Operating humidity | up to 75% |
| Colour | White |
| Complete set | 100 Pass cards, Quick start guide |
