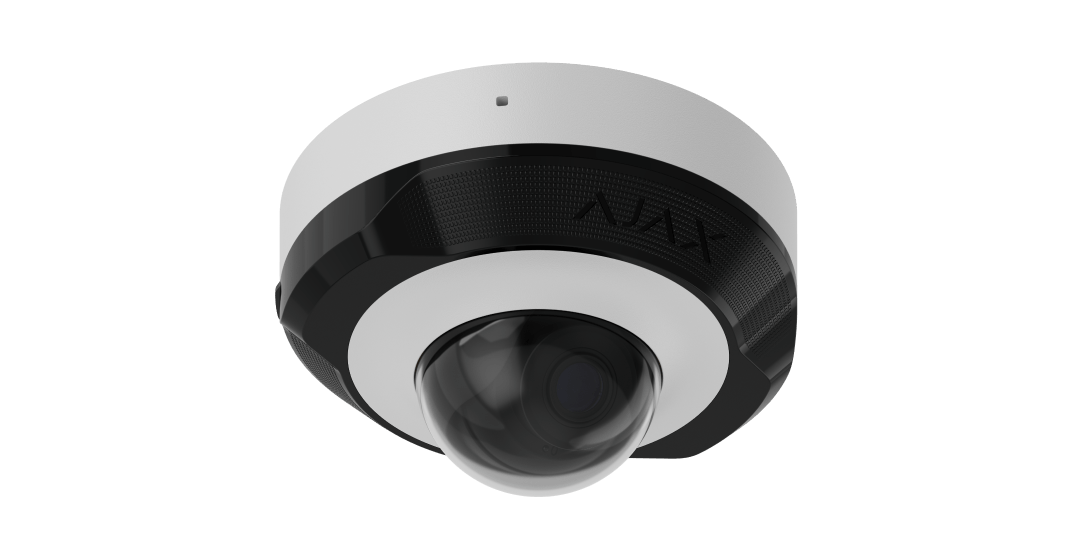

Ajax 76024.214.WH1 DomeCam Mini AI-Powered IP Camera, 8MP, 4mm
About this product
The Ajax DomeCam Mini (8 Mp/4 mm), article code 76024.214.WH1, is a wired AI-powered IP security camera in white with an 85° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records up to 8 MP (3840 × 2160), detects people, pets and vehicles, and has IR LED illumination up to 15 m.
Key features
- 8 MP CMOS, 1/2.8" type image sensor; 8 MP (3840 × 2160) resolution
- 4 mm fixed lens, f/1.6, horizontal field of view 75–85°
- Smart IR illumination up to 15 m
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V⎓, 1 А power
- IP66 and IK08 protection class
Frequently asked questions
How far can the DomeCam Mini (8 Mp/4 mm) see at night?
Its IR LED illumination reaches up to 15 m, with smart IR that adjusts intensity in real time to avoid overexposure.
How is it powered?
Over PoE (802.3at/af, 36–57 V, Class 3) or from a 12 V⎓, 1 А power supply unit. Average power consumption is 12 W.
Where are recordings stored?
On a microSD card up to 256 GB (Class V30 or faster), or on an Ajax NVR. The memory card is not included in the complete set.
Can it be used outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What can its AI detect?
AI object detection recognises people, pets and vehicles; motion detection uses software image frame analysis.
Does it work with ONVIF recorders?
It is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76024.214.WH1 |
| Manufacturer Part Number (MPN) | 76024.214.WH1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| True WDR | 120 dB |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 А |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Secure Boot | Protection against firmware spoofing. |
| Complete set | DomeCam Mini (8 Mp/4 mm); Installation template; Installation kit; Quick start guide |
| Colour | White |
