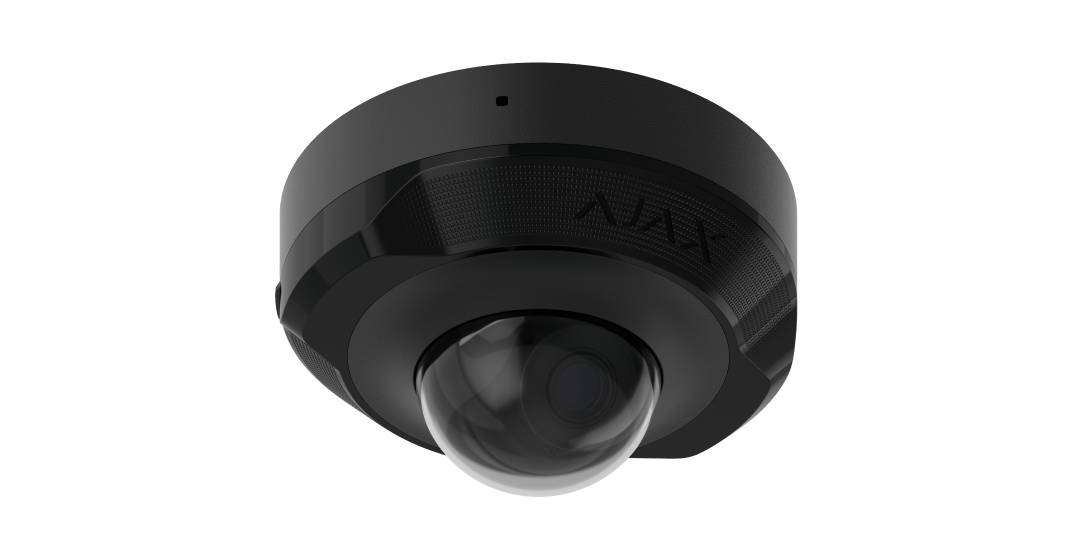

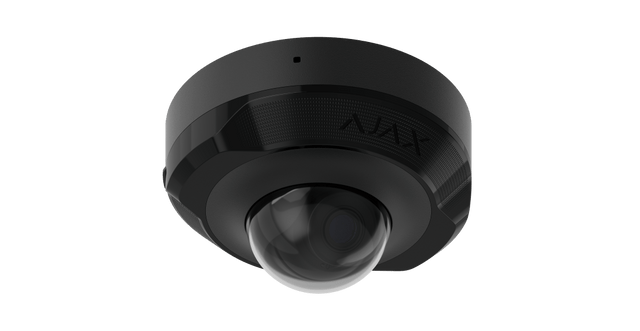

Ajax 76019.214.BL1 DomeCam Mini AI-Powered IP Security Camera, 5MP, 2.8mm
About this product
The Ajax DomeCam Mini (5 Mp/2.8 mm), model 76019.214.BL1, is a wired AI-powered IP security camera with a 110° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power. It is for outdoor and indoor use, and with Ajax detectors it can be set to start recording with the recorded event sent to the mobile or desktop monitoring app.
Key features
- 5 MP CMOS image sensor, 1/2.7" type
- 2.8 mm fixed lens with f/1.6 maximum aperture
- Horizontal field of view of 100–110°
- IR LED illumination up to 15 m with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- IP66 and IK08 protection class
Frequently asked questions
How is the DomeCam Mini powered?
By PoE (802.3at/af, 36–57 V, Class 3) or by a 12 V⎓, 1 A power supply unit. Average power consumption is 12 W.
How far can it see at night?
Its IR LED illumination reaches up to 15 m, and intelligent lighting control adjusts the IR intensity in real time to prevent overexposure.
Where does it store recordings?
On a microSD card of up to 256 GB, which should be Class V30 or faster and is not included in the complete set, or on an Ajax NVR.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, has an IP66, IK08 protection class and is rated from −30 °C to +60 °C.
Does it record sound?
Yes. With the corresponding settings, the built-in microphone lets the camera record audio at the scene.
Can Ajax detectors trigger it?
Yes. A scenario can be configured so that Ajax detectors trigger selected cameras to start recording, and the recorded event is sent to the mobile or desktop monitoring app.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76019.214.BL1 |
| Manufacturer Part Number (MPN) | 76019.214.BL1 |
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 65 m, Observation: 26 m, Recognition: 13 m, Identification: 6.5 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| True WDR | 120 dB |
| Storage | microSD up to 256 GB (Class V30 or faster, card not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini (5 Mp/2.8 mm), Installation template, Installation kit, Quick start guide |
| Colour | Black |
