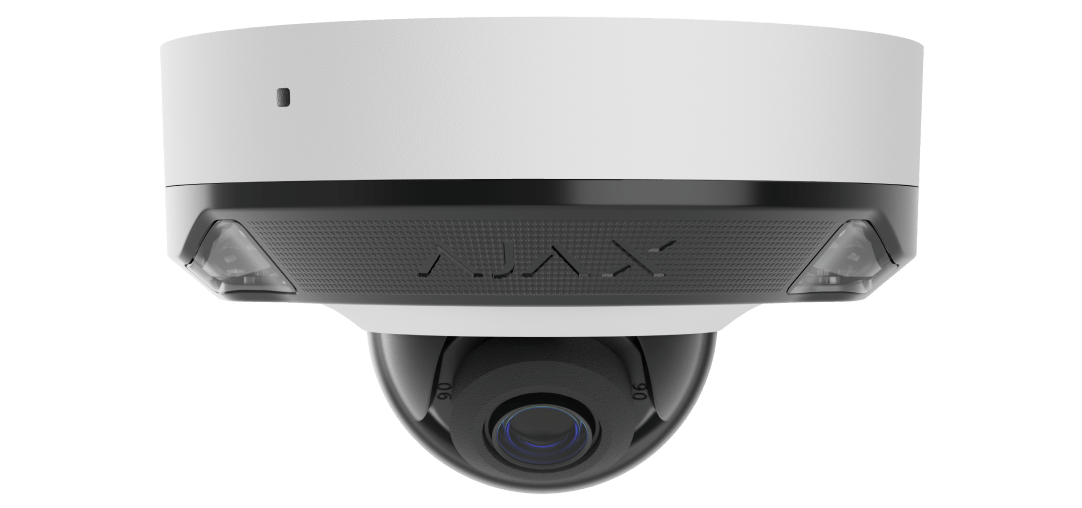

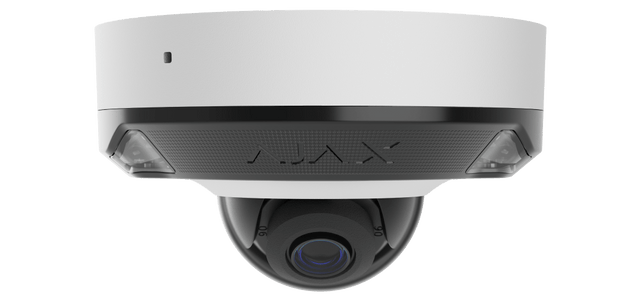

Ajax 126269.214.WH1 DomeCam Mini HL Wired AI-Powered IP Camera, 5 MP, 2.8 mm
About this product
The Ajax DomeCam Mini HL (5 Mp/2.8 mm) (126269.214.WH1) is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V power, for outdoor and indoor use. It detects people, pets and vehicles with AI object detection, and records to microSD or an Ajax NVR.
Key features
- 5 MP CMOS, 1/2.8" type image sensor
- 2.8 mm fixed lens with f/1.6 maximum aperture
- Hybrid illumination: white LED up to 15 m and IR LED up to 15 m
- True WDR rated at 120 dB
- AI object detection of people, pets and vehicles
- PoE (802.3at/af) or 12 V⎓ ± 20%, 1 А external power supply unit
- microSD up to 256 GB (Class V30 or faster, card not included)
- IP66, IK08 protection class
Frequently asked questions
How is the DomeCam Mini HL powered?
By PoE (802.3at/af), with consumption of up to 7.2 W maximum, or by a 12 V⎓ ± 20%, 1 А external power supply unit, with consumption of up to 6.1 W maximum.
How far can it see in the dark?
Maximum illumination distance is up to 15 m with the white LED and up to 15 m with the IR LED.
Where does it store video?
Storage options are microSD and an Ajax NVR. The camera supports microSD up to 256 GB, Class V30 or faster; the card is not included in the complete set.
What can the AI detect?
AI object detection covers people, pets and vehicles. Motion detection uses software image frame analysis.
Can it be mounted outdoors?

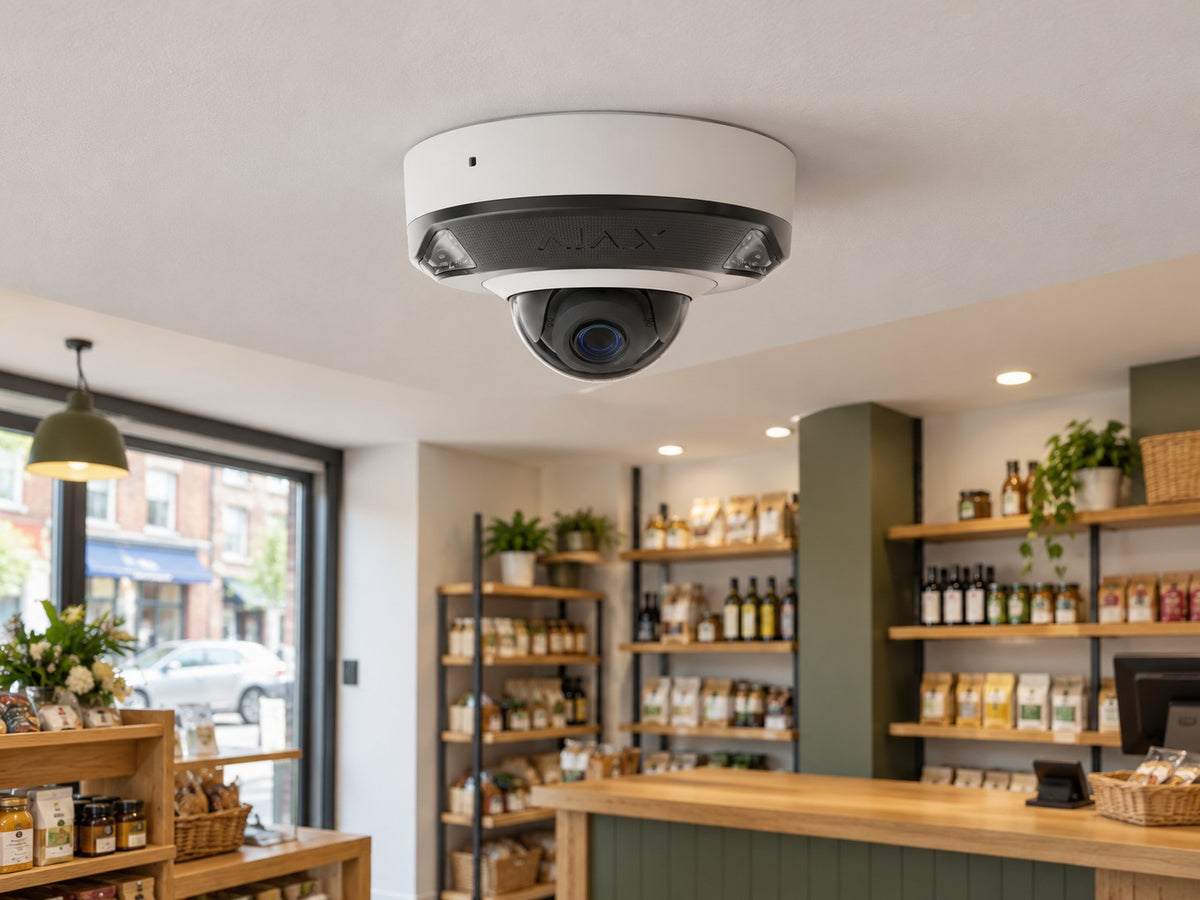

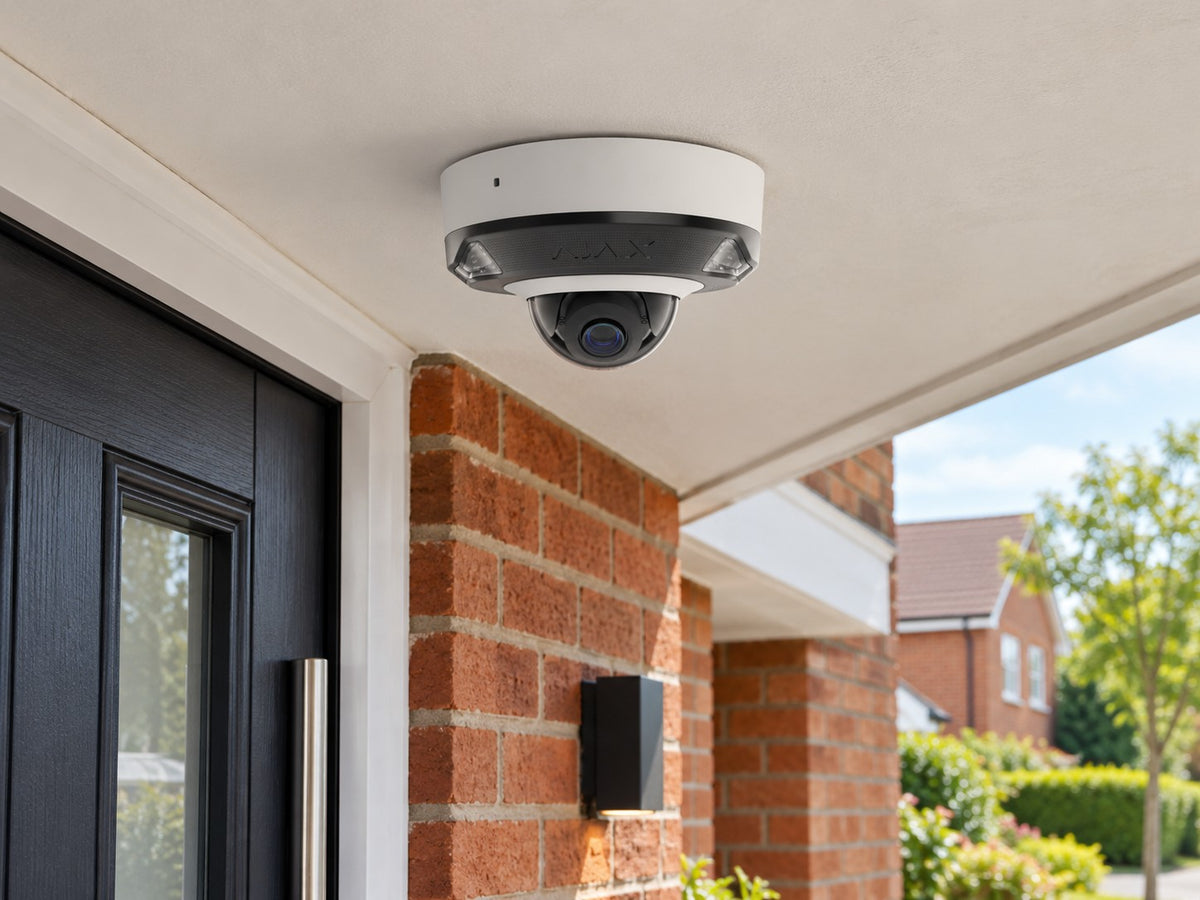

Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
Is the camera ONVIF conformant?
Yes. It is conformant with ONVIF® Profile G and S, and its protocols include RTSP.
-
Download
- 126269.214.WH1 Tech Sheet
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126269.214.WH1 |
| Manufacturer Part Number (MPN) | 126269.214.WH1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 65 m, Observation: 26 m, Recognition: 13 m, Identification: 6.5 m |
| Maximum illumination distance | white LED: up to 15 m, IR LED: up to 15 m |
| Minimum illumination | color: 0.005 lx, B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.2 W, average: up to 6.8 W |
| External power supply unit | 12 V⎓ ± 20%, 1 А |
| 12 V DC power consumption | maximum: up to 6.1 W, average: up to 5.8 W |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | White |
