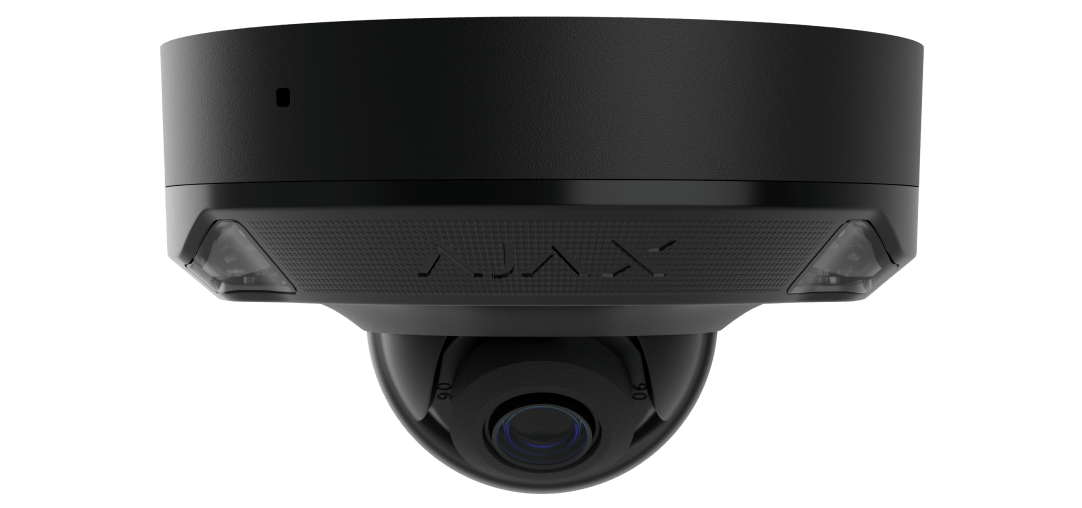

Ajax 126270.214.BL1 DomeCam Mini HL Wired AI-Powered Security IP Camera, 5MP, 4mm
About this product
The Ajax DomeCam Mini HL (5 Mp/4 mm), model 126270.214.BL1, is a wired AI-powered security IP camera in black with a 5 MP CMOS sensor, a 4 mm fixed lens and hybrid illumination, for outdoor and indoor use. Its white LED and IR LED each reach up to 15 m, and it adds 120 dB True WDR, a built-in microphone, AI detection of people, pets and vehicles, and power over PoE (802.3at/af) or a 12 V⎓ supply.
Key features
- 5 MP CMOS image sensor, 1/2.8" type
- 4 mm fixed lens with f/1.6 maximum aperture; horizontal field of view 75–85°
- Hybrid illumination: white LED up to 15 m and IR LED up to 15 m, with intelligent lighting control to prevent overexposure
- Minimum illumination: color 0.005 lx, B/W 0 lx
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone: with the corresponding settings, the camera can record audio at the scene
- IP66 and IK08 protection class
Frequently asked questions
What illumination does the DomeCam Mini HL (5 Mp/4 mm) use at night?
The DomeCam Mini HL (5 Mp/4 mm) has hybrid illumination: a white LED and an IR LED, each with a maximum illumination distance of up to 15 m.
How much power does it draw?
Over PoE (802.3at/af) the power consumption is maximum up to 7.3 W and average up to 6.9 W. On a 12 V DC supply it is maximum up to 6.3 W and average up to 5.9 W.
Where does it store video?
It records to microSD or an Ajax NVR. The camera supports microSD up to 256 GB, Class V30 or faster, and the card is not included in the complete set.

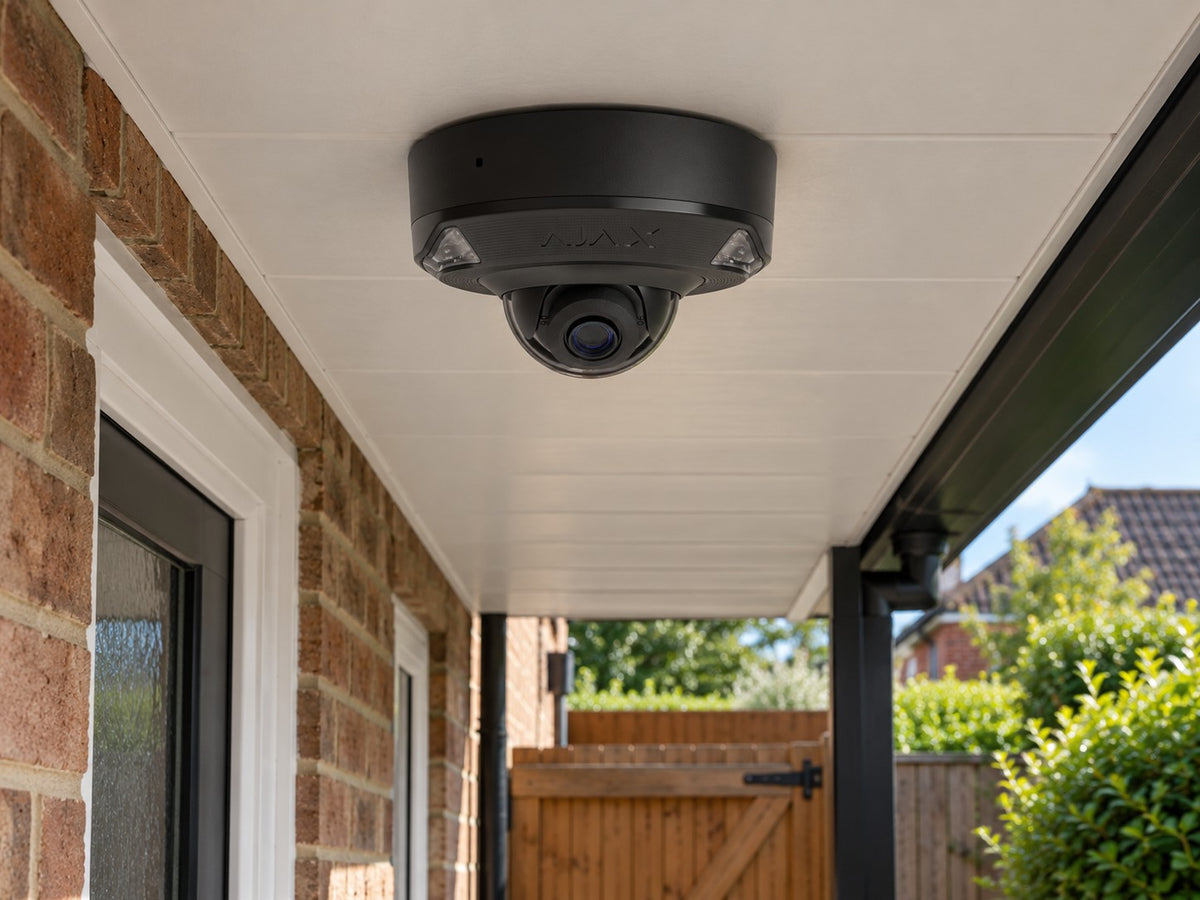

Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What can the AI detect?
AI object detection covers people, pets and vehicles. Motion detection uses software image frame analysis.
Does it work with ONVIF recorders?
The camera is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126270.214.BL1 |
| Manufacturer Part Number (MPN) | 126270.214.BL1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m |
| Maximum illumination distance | white LED: up to 15 m, IR LED: up to 15 m |
| Minimum illumination | color: 0.005 lx, B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster; card not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.3 W, average: up to 6.9 W |
| External power supply unit | 12 V⎓ ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 6.3 W, average: up to 5.9 W |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini HL (5 Mp/4 mm), installation template, installation kit, quick start guide |
| Colour | Black |
