Ajax 126272.214.BL1 DomeCam Mini HL Wired IP Camera, 8MP, 2.8mm
About this product

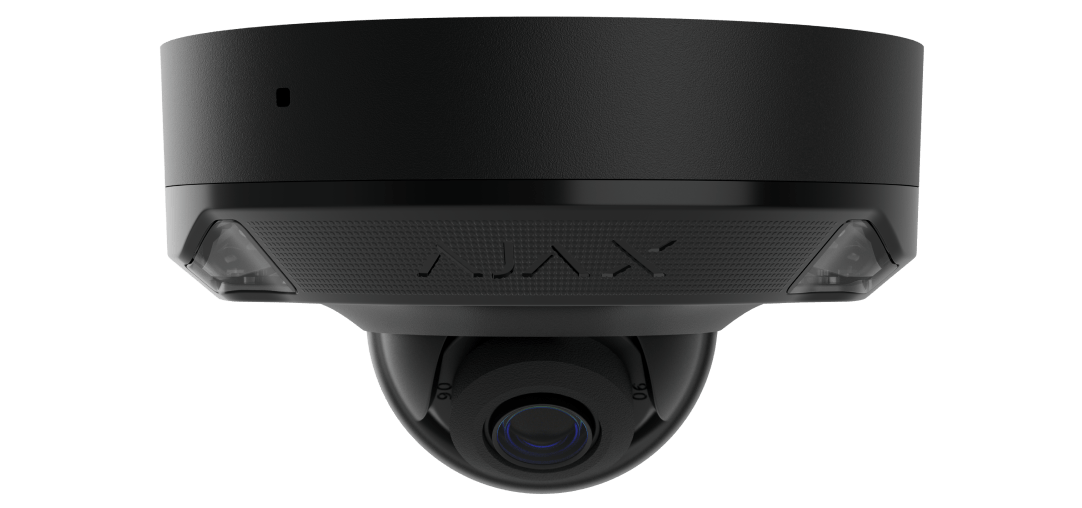

The Ajax DomeCam Mini HL (8 Mp/2.8 mm), 126272.214.BL1, is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, in black. It is for outdoor and indoor use, records to microSD or an Ajax NVR, and its AI object detection detects people, pets and vehicles.
Key features
- 8 MP CMOS image sensor, 1/2.7" type, with a 2.8 mm lens
- Field of view: horizontal 100–110°, vertical 50–60°, diagonal 125–135°
- Hybrid illumination: white LED up to 15 m and IR LED up to 15 m
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af) or 12 V⎓ external power supply
- IP66, IK08 protection class
Frequently asked questions
How is the DomeCam Mini HL powered?
By PoE (802.3at/af), with PoE power consumption of maximum up to 8.2 W, or by a 12 V⎓ ± 20%, 1 A external power supply unit, with 12 V DC power consumption of maximum up to 7.1 W.
How far can it see in the dark?
The maximum illumination distance is up to 15 m for the white LEDs and up to 15 m for the IR LEDs.
Where does it store video?
It supports microSD up to 256 GB (Class V30 or faster; the card is not included) and can also record to an Ajax NVR.
Can it record audio?
Yes. It has a built-in microphone and, with the corresponding settings, can record audio at the scene.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
Does it support ONVIF?
Yes. It is conformant with ONVIF Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126272.214.BL1 |
| Manufacturer Part Number (MPN) | 126272.214.BL1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 100–110°; vertical: 50–60°; diagonal: 125–135° |
| DORI distance | Detection: 90 m; Observation: 36 m; Recognition: 18 m; Identification: 9 m |
| Maximum illumination distance | white LED: up to 15 m; IR LED: up to 15 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Built-in microphone | Yes |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, pets, vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF | conformant with ONVIF Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 8.2 W; average: up to 7.7 W |
| External power supply unit | 12 V⎓ ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 7.1 W; average: up to 6.7 W |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini HL (8 Mp/2.8 mm), installation template, installation kit, quick start guide |
| Colour | Black |
