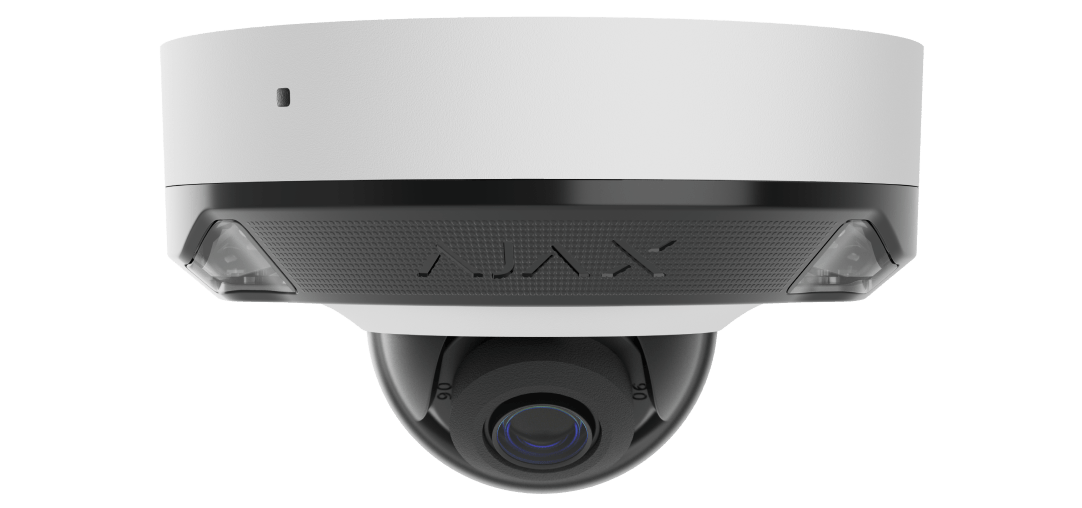

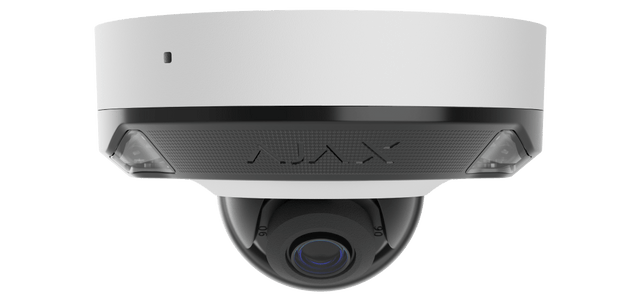

Ajax 126275.214.WH1 DomeCam Mini HL Wired Security IP Camera, 8MP, 4mm
About this product
The Ajax DomeCam Mini HL (8 Mp/4 mm) in white is a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records up to 8 MP (3840 × 2160) video and uses AI object detection to recognise people, pets and vehicles.
Key features
- 8 MP CMOS image sensor (1/2.7" type), up to 8 MP (3840 × 2160) resolution
- 4 mm fixed lens, maximum aperture f/1.6, horizontal field of view 75–85°
- Hybrid illumination: white LED up to 15 m and IR LED up to 15 m, with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone that can record audio at the scene with the corresponding settings
- PoE (802.3at/af) or external 12 V⎓ ± 20%, 1 A power supply unit
- IP66, IK08 protection class
Frequently asked questions
Can the DomeCam Mini HL be powered by PoE?
Yes. It supports PoE to 802.3at/af, with PoE power consumption of maximum: up to 8.2 W. It can also run from an external 12 V⎓ ± 20%, 1 A power supply unit.
Can the DomeCam Mini HL be installed outdoors?

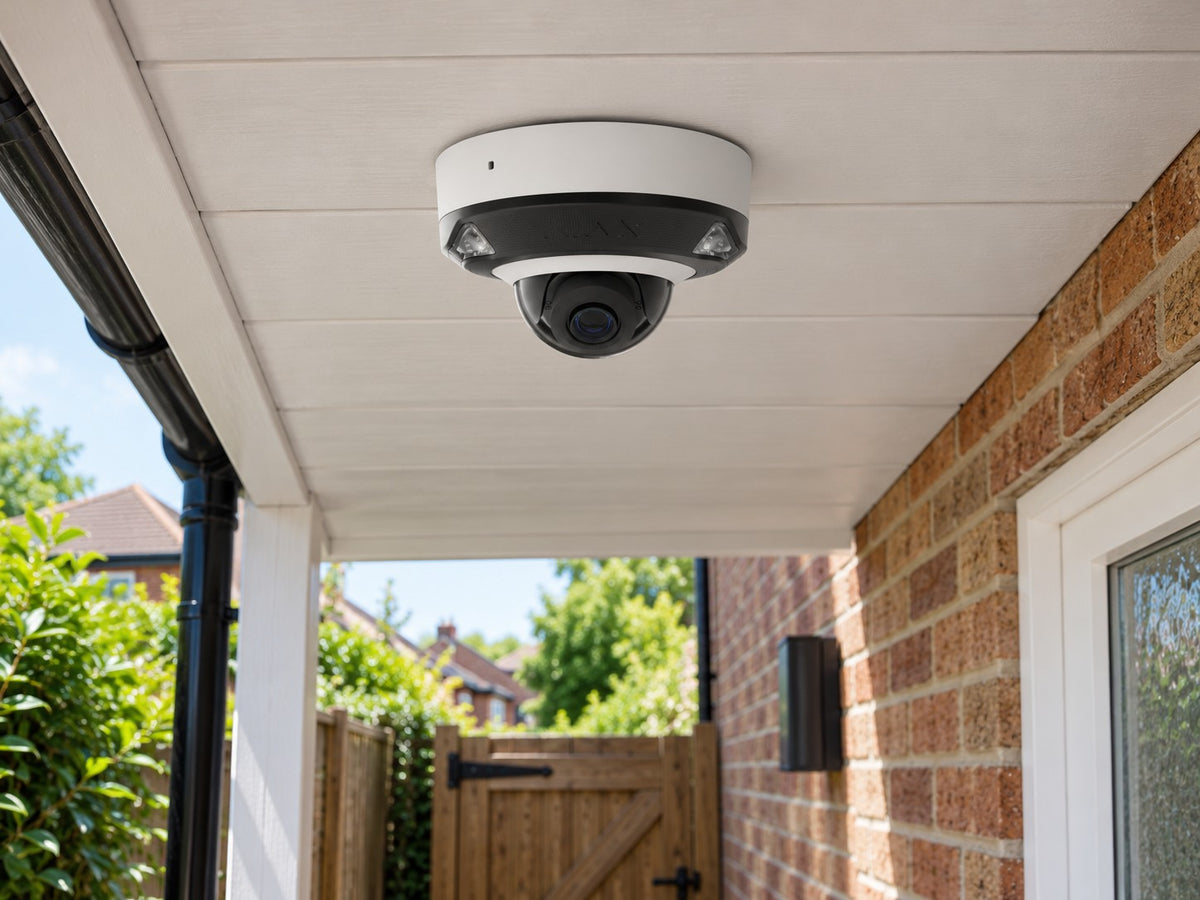

Yes. Ajax specifies it for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
How far can it see in the dark?
The maximum illumination distance is up to 15 m for the white LED and up to 15 m for the IR LED.
Is a memory card included?
No. The card is not included in the complete set. The camera supports microSD up to 256 GB, and the card should be Class V30 or faster. It can also record to an Ajax NVR.
Does the camera record audio?
Yes. It has a built-in microphone, and with the corresponding settings the camera can record audio at the scene.
What can the AI object detection recognise?
People, pets and vehicles.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126275.214.WH1 |
| Manufacturer Part Number (MPN) | 126275.214.WH1 |
| Image sensor | 8 MP CMOS, 1/2.7" type |
| Resolution (max.) | 8 MP (3840 × 2160) |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m |
| Maximum illumination distance | white LED: up to 15 m; IR LED: up to 15 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Frame rate | up to 20 fps |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 8.2 W; average: up to 7.7 W |
| External power supply unit | 12 V⎓ ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 7.0 W; average: up to 6.6 W |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini HL (8 Mp/4 mm), Installation template, Installation kit, Quick start guide |
| Colour | White |
