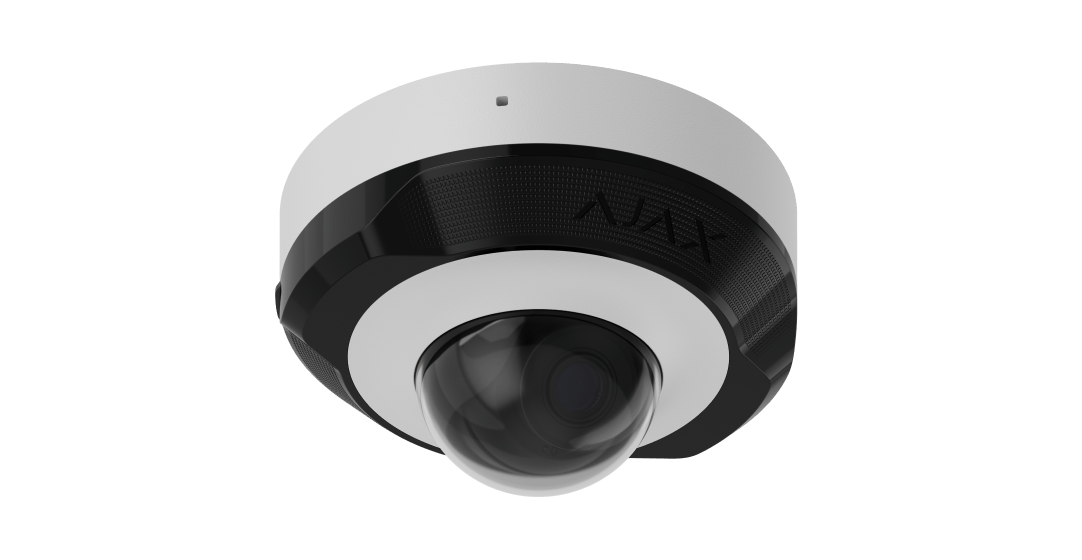

Ajax 76020.214.WH1 DomeCam Mini Wired AI-powered IP Camera, 5MP, 4mm
About this product
The Ajax 76020.214.WH1 is the DomeCam Mini (5 Mp/4 mm) in White: a wired AI-powered IP security camera with an 85° viewing angle, IR illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. It has a 5 MP CMOS, 1/2.7" type sensor with a 4 mm lens, detects people, pets and vehicles with AI object detection, and has IR LED illumination up to 15 m.
Key features
- 5 MP CMOS, 1/2.7" type sensor with 4 mm fixed lens and f/1.6 maximum aperture
- Field of view horizontal: 75–85°, vertical: 40–50°
- Smart IR illumination up to 15 m
- AI object detection for people, pets and vehicles
- 120 dB True WDR
- Built-in microphone: with the corresponding settings, the camera can record audio at the scene
- PoE (802.3at/af) or 12 V power supply
- IP66, IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How is the DomeCam Mini (5 Mp/4 mm) powered?
Over PoE (802.3at/af, 36–57 V, Class 3) or from a 12 V⎓, 1 А power supply unit.
How far does its illumination reach?
Maximum illumination distance is up to 15 m with the IR LED.
What storage does it support?
Storage options are microSD and Ajax NVR. The camera supports microSD up to 256 GB, Class V30 or faster; the card is not included in the complete set.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with IP66, IK08 protection and an operating temperature range from −30 °C to +60 °C.
What can the AI object detection recognise?
People, pets and vehicles.
Does it support ONVIF?
Yes. The camera is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76020.214.WH1 |
| Manufacturer Part Number (MPN) | 76020.214.WH1 |
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 86 m; Observation: 34.4 m; Recognition: 17.2 m; Identification: 8.6 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Smart IR illumination | up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620); 4 MP (2560 × 1440); 3 MP (2304 × 1296); 2 MP (1920 × 1080); 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| Motion detection | Software image frame analysis |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| Authentication | via Ajax Cloud |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 А |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini (5 Mp/4 mm); Installation template; Installation kit; Quick start guide |
| Colour | White |
