Ajax 76022.214.WH1 DomeCam Mini Wired AI-Powered IP Camera, 8MP, 2.8mm
About this product

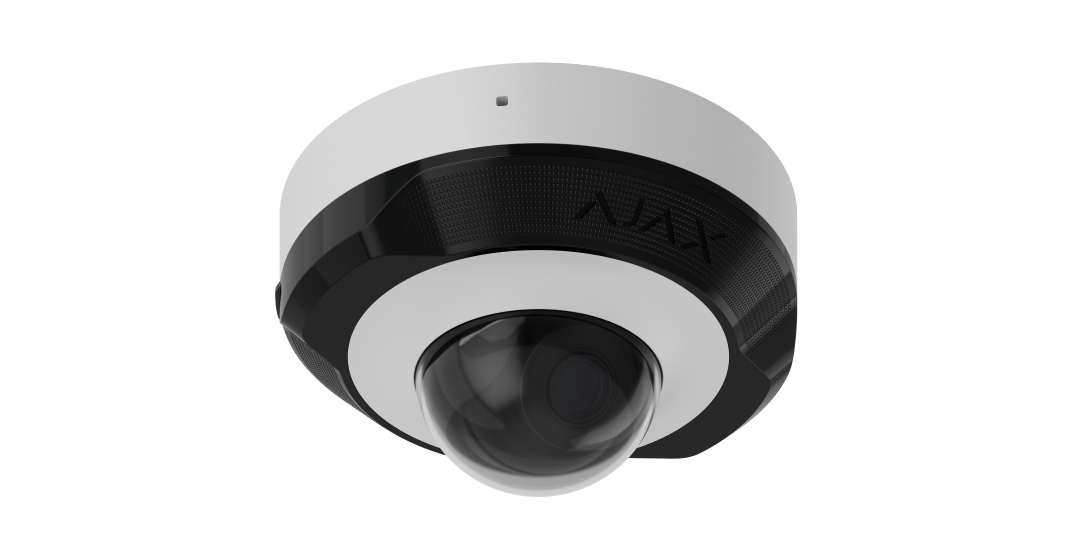

The Ajax DomeCam Mini (8 Mp/2.8 mm) is a wired AI-powered IP security camera with a 110° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 8 MP (3840 × 2160) video, detects people, pets and vehicles with AI object detection, and works with Ajax detectors for visual verification of Ajax alarms.
Key features
- 8 MP CMOS image sensor, 1/2.8" type
- 2.8 mm fixed lens, f/1.6 maximum aperture
- IR LED illumination up to 15 m
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V power
- IP66 and IK08 protection class
Frequently asked questions
How far can the Ajax DomeCam Mini (8 Mp/2.8 mm) see at night?
Its IR LED has a maximum illumination distance of up to 15 m, and intelligent lighting control adjusts the intensity of the IR LEDs in real time to prevent overexposure.
Can the DomeCam Mini be powered by PoE?
Yes. It supports PoE standard 802.3at/af, 36–57 V, Class 3. It can also run from a 12 V, 1 A power supply unit.
Where does the DomeCam Mini store recordings?
On a microSD card up to 256 GB (Class V30 or faster, not included) or on an Ajax NVR.
What can the DomeCam Mini detect?
AI object detection recognises people, pets and vehicles, and motion detection uses software image frame analysis.
Is the DomeCam Mini suitable for outdoor use?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What is the field of view of the DomeCam Mini (8 Mp/2.8 mm)?
With its 2.8 mm lens, the field of view is horizontal: 100–110°, vertical: 50–60° and diagonal: 125–135°.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76022.214.WH1 |
| Manufacturer Part Number (MPN) | 76022.214.WH1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 90 m, Observation: 36 m, Recognition: 18 m, Identification: 9 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160), 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster; card not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V, 1 A |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | White |
