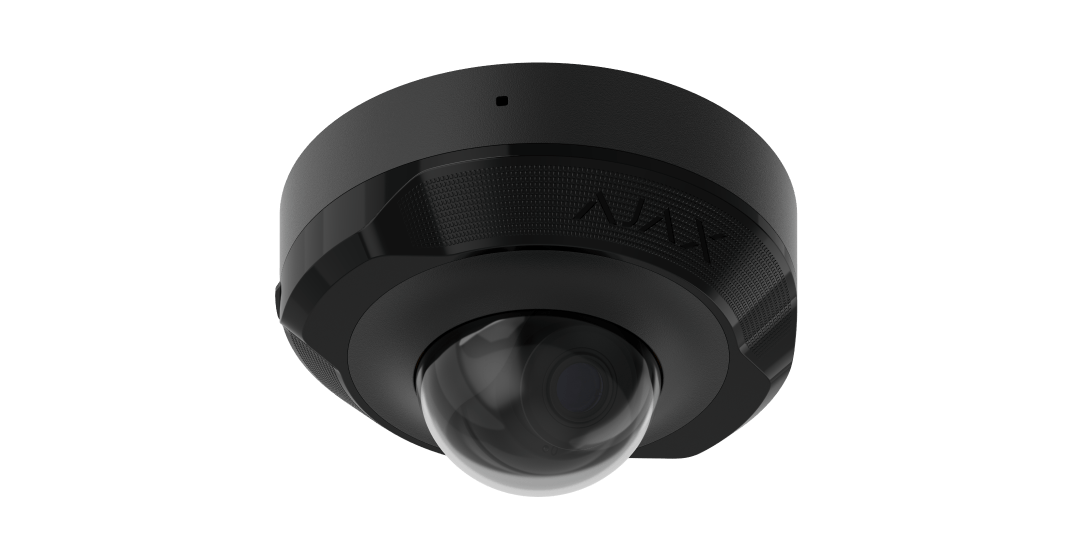

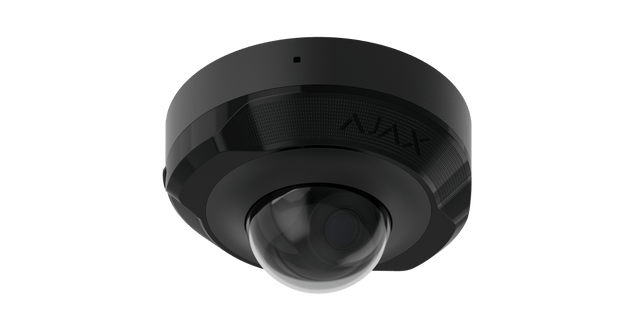

Ajax 76025.214.BL1 DomeCam Mini Wired AI-Powered IP Security Camera, 8MP, 4mm
About this product
The Ajax DomeCam Mini (8 Mp/4 mm), model 76025.214.BL1, is a wired AI-powered IP security camera with an 8 MP CMOS sensor and a 4 mm fixed lens, for outdoor and indoor use. It has IR illumination up to 15 m, 120 dB True WDR, a built-in microphone and AI detection of people, pets and vehicles, and is powered by PoE (802.3at/af, Class 3) or a 12 V⎓ supply.
Key features
- 8 MP CMOS image sensor, 1/2.8" type
- 4 mm fixed lens with f/1.6 maximum aperture; horizontal field of view 75–85°
- IR LED illumination up to 15 m, with automatic adjustment of intensity in real time to avoid overexposure
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone: with the corresponding settings, the camera can record audio at the scene
- PoE standard 802.3at/af, 36–57 V, Class 3, or a 12 V⎓, 1 A power supply unit
- IP66 and IK08 protection class
Frequently asked questions
How far does the DomeCam Mini (8 Mp/4 mm) see at night?
Its IR LED illumination reaches up to 15 m, and smart IR adjusts its intensity in real time to avoid overexposure.
Can it be powered over PoE?
Yes. The PoE standard is 802.3at/af, 36–57 V, Class 3. It can also run from a 12 V⎓, 1 A power supply unit.
Where does it store video?
It records to microSD or an Ajax NVR. The camera supports microSD up to 256 GB, Class V30 or faster, and the card is not included in the complete set.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What can the AI detect?
AI object detection covers people, pets and vehicles. Motion detection uses software image frame analysis.
Does it work with ONVIF recorders?
The camera is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76025.214.BL1 |
| Manufacturer Part Number (MPN) | 76025.214.BL1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 117.5 m, Observation: 47 m, Recognition: 23.5 m, Identification: 11.6 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160), 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster; card not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini (8 Mp/4 mm), installation template, installation kit, quick start guide |
| Colour | Black |
Ajax 76025.214.BL1 DomeCam Mini Wired AI-Powered IP Security Camera, 8MP, 4mm
