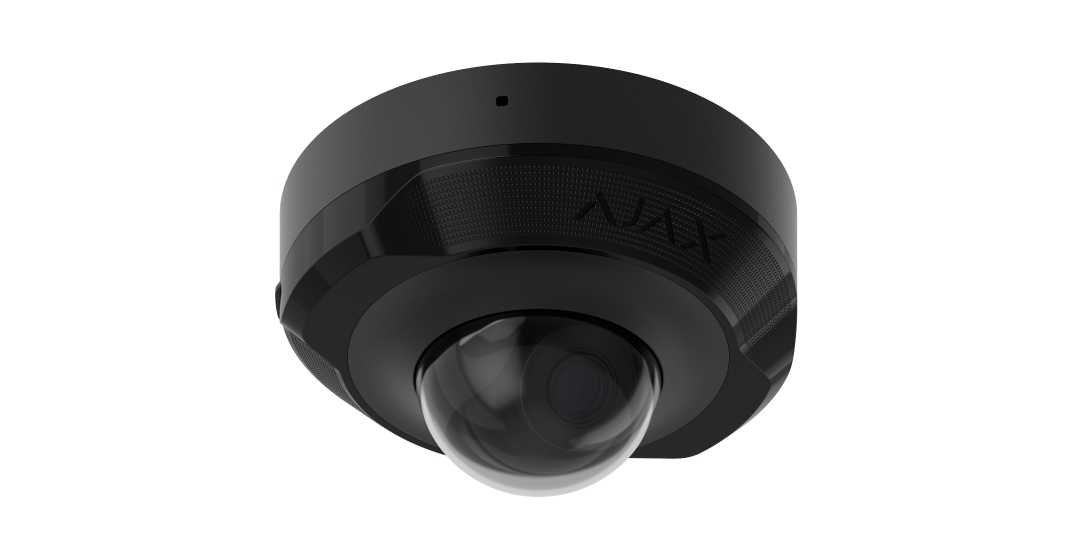

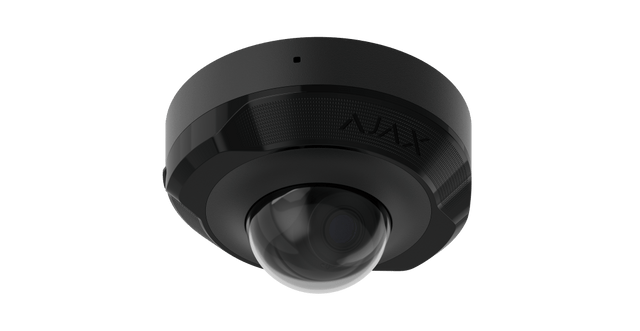

Ajax 76021.214.BL1 DomeCam Mini Wired IP Security Camera, 5MP, 4mm
About this product
The Ajax DomeCam Mini (5 Mp/4 mm), model 76021.214.BL1, is a wired AI-powered IP security camera with an 85° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records to microSD or an Ajax NVR and uses AI object detection for people, pets and vehicles.
Key features
- 5 MP CMOS image sensor, 1/2.7" type
- 4 mm fixed lens with f/1.6 maximum aperture
- IR LED illumination up to 15 m with intelligent lighting control
- 120 dB True WDR
- AI object detection for people, pets and vehicles
- Built-in microphone: with the corresponding settings, the camera can record audio at the scene
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V⎓, 1 A power supply unit
- IP66 and IK08 protection class
Frequently asked questions
What is the night vision range of the DomeCam Mini (5 Mp/4 mm)?
IR LED illumination reaches up to 15 m, and intelligent lighting control adjusts IR intensity in real time to prevent overexposure.
How is the camera powered?
By PoE (802.3at/af, 36–57 V, Class 3) or a 12 V⎓, 1 A power supply unit. Average power consumption is 12 W.
Does it take a memory card?
Yes. It supports microSD up to 256 GB, Class V30 or faster; the card is not included in the complete set. It can also record to an Ajax NVR.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, has an IP66, IK08 protection class and operates from −30 °C to +60 °C.
What does the AI object detection recognise?
AI object detection covers people, pets and vehicles. Motion detection uses software image frame analysis.
Does the camera record sound?
It has a built-in microphone. With the corresponding settings, the camera can record audio at the scene.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76021.214.BL1 |
| Manufacturer Part Number (MPN) | 76021.214.BL1 |
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF | conformant with ONVIF Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
