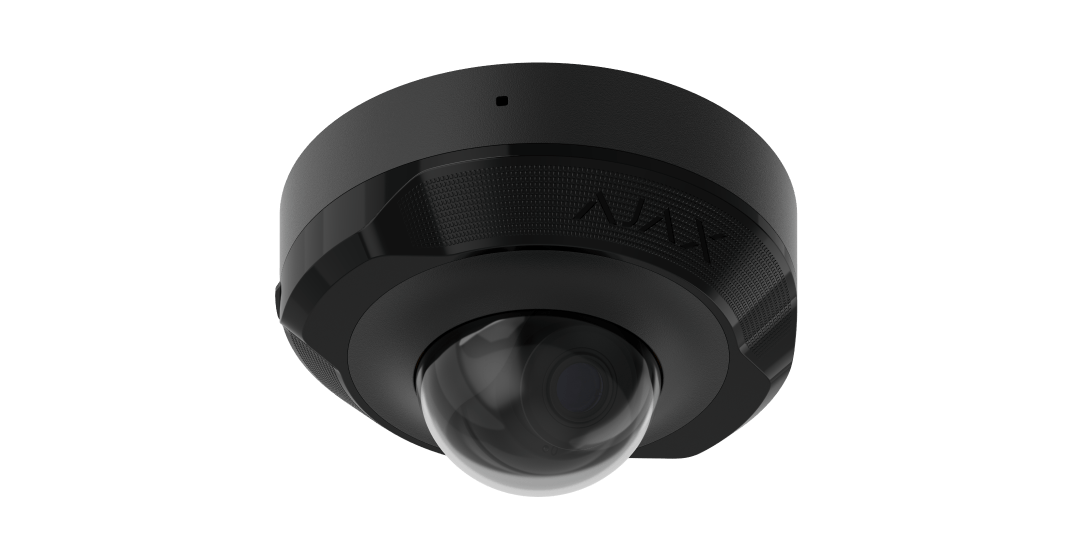

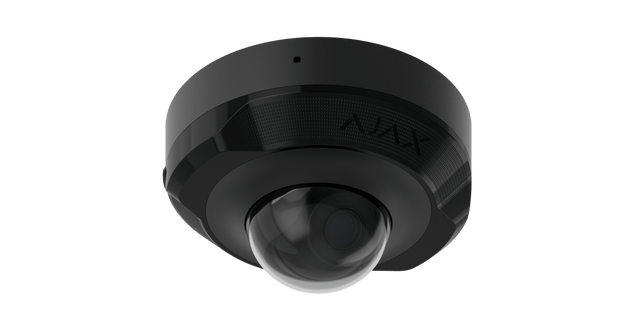

Ajax 76023.214.BL1 DomeCam Mini Wired IP Security Camera, 8 MP, 2.8mm
About this product
The Ajax DomeCam Mini (8 Mp/2.8 mm), model 76023.214.BL1 in black, is a wired AI-powered IP security camera with a 110° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records to microSD or an Ajax NVR, and Ajax detectors can trigger it to start recording for visual verification of Ajax alarms.
Key features
- 8 MP CMOS, 1/2.8" type image sensor
- 2.8 mm fixed lens with f/1.6 maximum aperture
- Smart IR illumination up to 15 m, with automatic adjustment of intensity to avoid overexposure
- 120 dB (True WDR)
- AI object detection of people, pets and vehicles
- Built-in microphone: with the corresponding settings, the camera can record audio at the scene
- PoE 802.3at/af, 36–57 V, Class 3, or a 12 V⎓, 1 A power supply unit
- IP66, IK08 protection class
Frequently asked questions
How is the DomeCam Mini (8 Mp/2.8 mm) powered?
It takes PoE (802.3at/af, 36–57 V, Class 3) or a 12 V⎓, 1 A power supply unit. Average power consumption is 12 W.
Where does it store video?
On microSD or an Ajax NVR. The camera supports microSD up to 256 GB, the memory card should be Class V30 or faster, and the card is not included in the complete set.
How far does the night vision reach?
IR LED illumination reaches up to 15 m, and Smart IR adjusts its intensity in real time to avoid overexposure.
Can it be mounted outdoors?
Yes. Ajax rates it for outdoor and indoor use, with protection class IP66, IK08 and an operating temperature range from -30 °C to +60 °C.
What can its AI detect?
AI object detection covers people, pets and vehicles, and motion is detected using software image frame analysis.
What comes in the box?
The complete set is the DomeCam Mini (8 Mp/2.8mm), an installation template, an installation kit and a quick start guide. The microSD card is not included.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 76023.214.BL1 |
| Manufacturer Part Number (MPN) | 76023.214.BL1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 100–110°; vertical: 50–60°; diagonal: 125–135° |
| DORI distance | Detection: 90 m; Observation: 36 m; Recognition: 18 m; Identification: 9 m |
| Maximum illumination distance | IR LED: up to 15 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160), 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster; card not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Smart IR illumination | up to 15 m |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | DomeCam Mini (8 Mp/2.8mm), Installation template, Installation kit, Quick start guide |
| Colour | Black |
