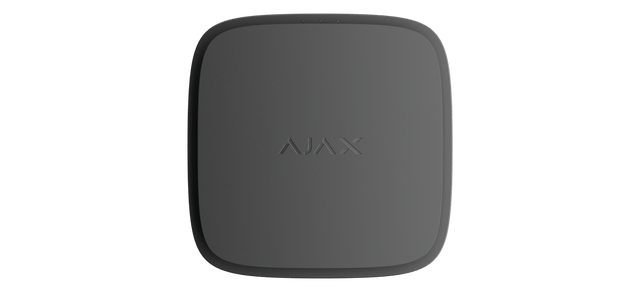

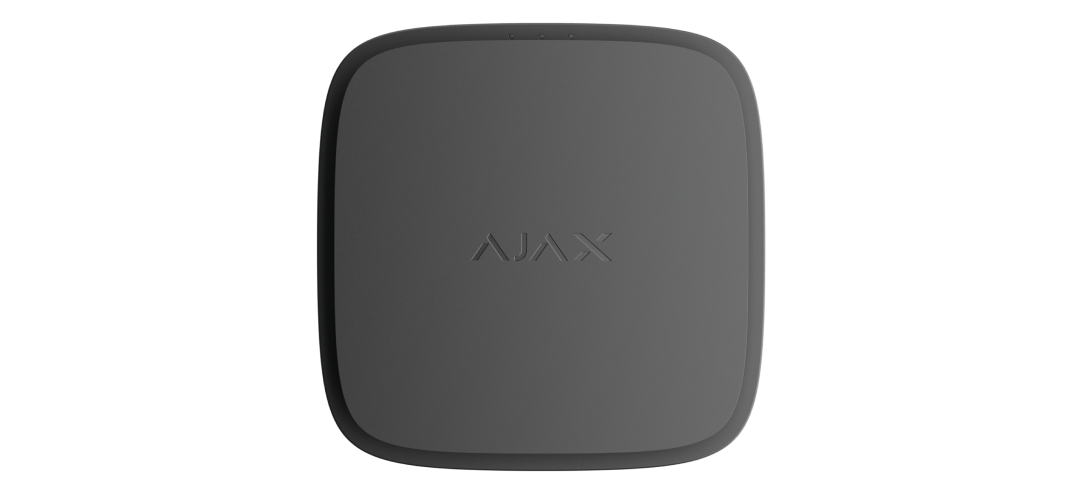

Ajax 107288.174.BL1 FireProtect 2 AC Wireless Heat/CO Detector, Black, 85 dB Built-in Siren
About this product
The Ajax FireProtect 2 AC (Heat/CO) Jeweller, article code 107288.174.BL1, is a wireless mains-powered fire detector with heat and CO sensors, in black. It raises an alarm at temperatures above 64°C, when the temperature rises by more than 10°C in 1 minute or less, or when an accumulated dose of carbon monoxide is exceeded, sounds its built-in 85 dB siren, and sends the alarm to the hub over Jeweller wireless communication.
Key features
- Heat sensor and chemical CO (carbon monoxide) sensor in one detector
- High temperature alarm at temperatures above 64°C
- Temperature spike alarm when the temperature rises by more than 10°C in 1 minute or less
- Built-in siren: volume 85 dB at a distance of 3 meters
- Mains powered (110–240 V~, 50/60 Hz, up to 2 W consumption) with a non-replaceable lithium CR-2/3AZ backup battery
- Jeweller radio communication range up to 1,700 m between detector and hub in an open space
- Fallback interconnection: the detector alarms other detectors directly, even if connection with the hub is lost
- Sensor service life of 10 years
Frequently asked questions
What power does the FireProtect 2 AC (Heat/CO) need?
It runs from 110–240 V~, 50/60 Hz mains, with up to 2 W of mains power consumption. A non-replaceable lithium battery CR-2/3AZ lets it operate without the main power source.
At what level of carbon monoxide does it alarm?
It alarms when the accumulated CO dose is exceeded: over 50 ppm (0.005%) in 90 minutes or less, over 100 ppm (0.01%) in 40 minutes or less, or over 300 ppm (0.03%) in 3 minutes.
When does the heat sensor trigger?
At temperatures above 64°C, or when the temperature rises by more than 10°C in 1 minute or less.
Will other detectors sound if the hub connection is lost?
Yes. Through fallback interconnection the initiating detector sends an alarm directly to other detectors, and all connected detectors activate the buzzer within a minute, even if connection with the hub is lost.
How long does the sensor last?
The sensor service life is 10 years. After 10 years of operation, the detector must be replaced with a new one.
What is in the box?
The FireProtect 2 AC (Heat/CO) Jeweller, a SmartBracket mounting panel, WAGO 221 3-conductor terminal — 2 pcs. (pre-installed in SmartBracket), an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 107288.174.BL1 |
| Manufacturer Part Number (MPN) | 107288.174.BL1 |
| Sensitive elements | heat sensor, CO (carbon monoxide) sensor |
| Heat sensitive element | Class A1R heat detector requirements (EN 54-5 and BS 5446-2) |
| High temperature alarm | at temperatures above 64°C |
| Temperature spike alarm | when the temperature rises by more than 10°C in 1 minute or less |
| CO sensitive element | chemical CO sensor |
| Alarm if accumulated dose of CO is exceeded | over 50 ppm (0.005%) — in 90 minutes or less; over 100 ppm (0.01%) — in 40 minutes or less; over 300 ppm (0.03%) — in 3 minutes |
| Sensor service life | 10 years |
| Built-in siren | volume 85 dB at a distance of 3 meters |
| Communication | Jeweller communication technology |
| Radio communication range | up to 1,700 m (between detector and hub or range extender, in an open space) |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Communication loss detection | within 15 minutes |
| Main power supply | 110–240 V~, 50/60 Hz (up to 2 W of mains power consumption) |
| Backup power | 1 non-replaceable lithium battery CR-2/3AZ |
| Dimensions | 122 × 122 × 54 mm |
| Weight | 305 g |
| Operating temperature range | from 0°С to +50°С |
| Operating humidity | up to 80% |
| Installation | indoor installation only |
| Complete set | FireProtect 2 AC (Heat/CO) Jeweller; SmartBracket mounting panel; WAGO 221 3-conductor terminal — 2 pcs. (pre-installed in SmartBracket); Installation kit; Quick start guide |
| Colour | Black |
