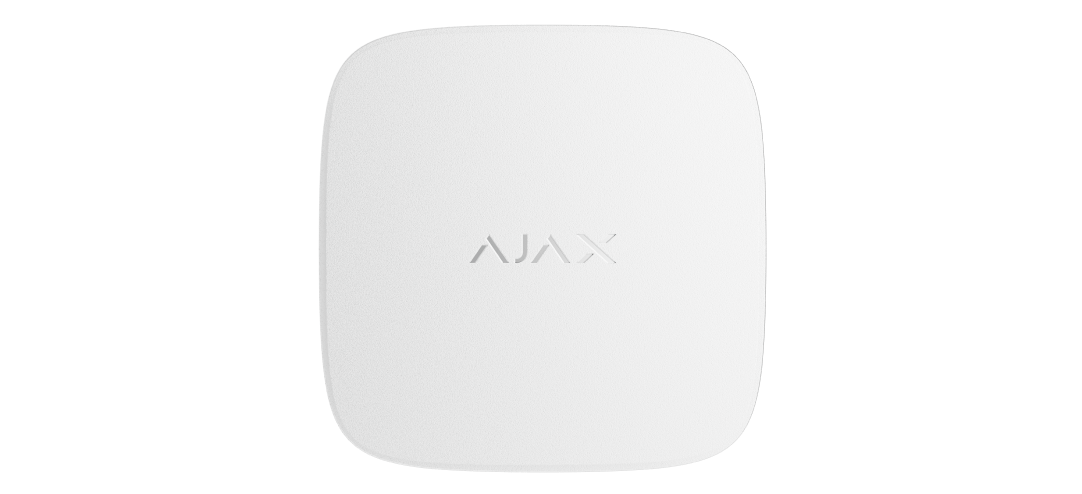

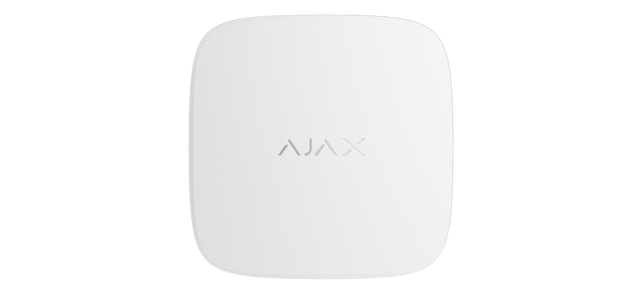

Ajax 63212.166.WH1 FireProtect 2 RB (CO) Wireless CO Detector, 10-Year Sensor Life, Replaceable Batteries
About this product
The Ajax FireProtect 2 RB (CO) Jeweller is a wireless CO detector with replaceable batteries for Ajax security systems, using a chemical CO sensor and an in-built siren of 85 dB at a distance of 3 meters. It connects to a hub over Jeweller, a proprietary wireless technology for transmission of alarms and events, at up to 1,700 m in an open space.
Key features
- Chemical CO sensor with a 10-year sensor life
- Alarm if accumulated dose of CO is exceeded: more than 50 ppm within no more than 90 minutes, more than 100 ppm within no more than 40 minutes, more than 300 ppm within no more than 3 minutes
- In-built siren, volume 85 dB at a distance of 3 meters
- Jeweller wireless communication up to 1,700 m to a hub (or radio signal range extender) in an open space
- Interconnected fire detectors alarms via the hub within 20 seconds
- Powered by 2 × CR123A battery, with up to 7 years of battery life
- Tampering alarm alerts of attempts to detach the detector from the surface or remove the mounting panel
- Front-panel button runs the detector test, or turns off the sound notification during an alarm or malfunction
Frequently asked questions
What batteries does the FireProtect 2 RB (CO) use, and how long do they last?
It uses 2 × CR123A battery, pre-installed, with up to 7 years of battery life.
How long does the CO sensor last?
The sensor life is 10 years. After 10 years of operation, the detector must be replaced with a new one.
At what CO levels does it raise an alarm?
It alarms if the accumulated dose of CO is exceeded: more than 50 ppm (0.005%) within no more than 90 minutes, more than 100 ppm (0.01%) within no more than 40 minutes, or more than 300 ppm (0.03%) within no more than 3 minutes.
How loud is the built-in siren?
The in-built siren has a volume of 85 dB at a distance of 3 meters.
Can it be installed outdoors?
No. The device is designed only for indoor installation, with an operating temperature range from 0°C to +50°C and protection class IP20.
What is the wireless range to the hub?
Up to 1,700 m between the detector and a hub (or radio signal range extender) in an open space, over Jeweller communication technology.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 63212.166.WH1 |
| Manufacturer Part Number (MPN) | 63212.166.WH1 |
| Communication | Jeweller communication technology |
| Radio communication range | Up to 1,700 m (between the detector and a hub or radio signal range extender, in an open space) |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Radio signal modulation | GFSK |
| Sensitive element | Chemical CO sensor |
| Alarm if accumulated dose of CO is exceeded | More than 50 ppm (0.005%) — no more than in 90 minutes; more than 100 ppm (0.01%) — no more than in 40 minutes; more than 300 ppm (0.03%) — no more than in 3 minutes |
| Sensor life | 10 years |
| In-built siren | Volume 85 dB at a distance of 3 meters |
| Power supply | 2 × CR123A battery |
| Battery life | Up to 7 years |
| Dimensions | 44 × 86 × 86 mm |
| Weight | 147 g |
| Operating temperature range | From 0°C to +50°C |
| Operating humidity | Up to 80% |
| Protection class | IP20 |
| Complete set | FireProtect 2 RB (CO) Jeweller; SmartBracket mounting panel; Installation kit; 2 × CR123A battery (pre-installed); Quick start guide |
| Colour | White |
