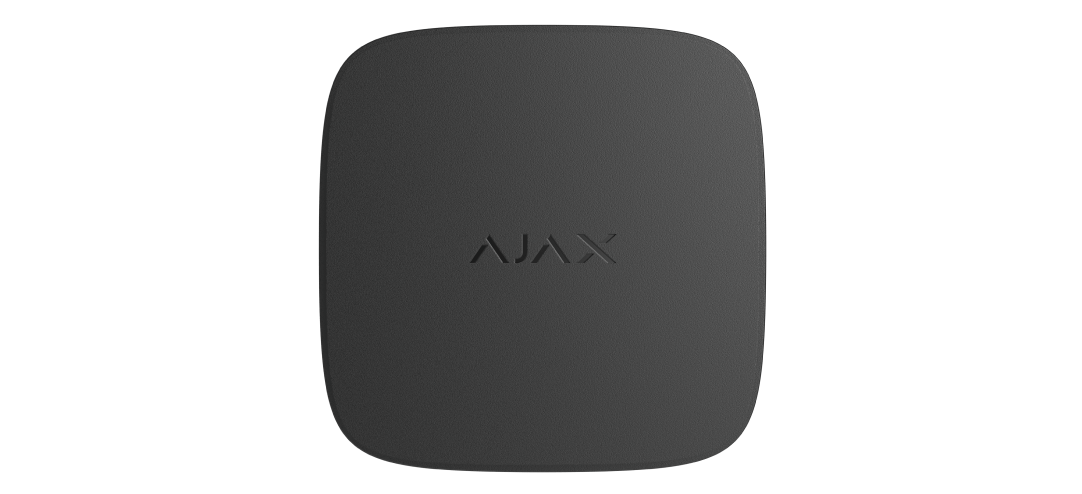

Ajax 63213.166.BL1 FireProtect 2 RB (CO) Wireless CO Detector, 10-Year Sensor Life, Up to 7 Years Battery Life
About this product
The Ajax FireProtect 2 RB (CO) Jeweller (63213.166.BL1) is a wireless CO detector with replaceable batteries for Ajax security systems, in black. It uses a chemical CO sensor to raise an alarm when the accumulated dose of carbon monoxide is exceeded, sounds its in-built siren (85 dB at a distance of 3 meters) and reports to the hub over Jeweller radio.
Key features
- Chemical CO sensor with a 10-year sensor life
- Alarm at more than 50 ppm (0.005%) within no more than 90 minutes, more than 100 ppm (0.01%) within no more than 40 minutes, and more than 300 ppm (0.03%) within no more than 3 minutes
- In-built siren: volume 85 dB at a distance of 3 meters
- Jeweller radio range up to 1,700 m to a hub or range extender in an open space
- Powered by 2 × CR123A batteries (replaceable), up to 7 years of battery life
- Interconnected fire alarms: within 20 seconds the hub initiates an interconnected alarm
- Tampering alarm if the detector is detached from the surface or the mounting panel is removed
- Green, yellow and red LED indication for power, malfunctions and fire alarms
Frequently asked questions
What batteries does it use and how long do they last?
It uses 2 × CR123A batteries, which come pre-installed, with up to 7 years of battery life. The batteries are replaceable.
When does it raise a CO alarm?
When the accumulated dose of CO is exceeded: more than 50 ppm (0.005%) in no more than 90 minutes, more than 100 ppm (0.01%) in no more than 40 minutes, or more than 300 ppm (0.03%) in no more than 3 minutes.
How long does the CO sensor last?
Sensor life is 10 years. After 10 years of operation, the detector must be replaced with a new one.
How far can it be from the hub?
Radio communication range is up to 1,700 m between the detector and a hub (or radio signal range extender) in an open space.
Can it be installed outdoors?
No. The device is designed only for indoor installation, and its protection class is IP20.
What is in the box?
The FireProtect 2 RB (CO) Jeweller, SmartBracket mounting panel, installation kit, 2 × CR123A battery (pre-installed) and quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 63213.166.BL1 |
| Manufacturer Part Number (MPN) | 63213.166.BL1 |
| Communication | Jeweller communication technology |
| Radio frequency bands | 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (depends on the region of sale) |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m (between the detector and a hub or radio signal range extender, in an open space) |
| Sensitive element | chemical CO sensor |
| Alarm if accumulated dose of CO is exceeded | more than 50 ppm (0.005%) — no more than in 90 minutes; more than 100 ppm (0.01%) — no more than in 40 minutes; more than 300 ppm (0.03%) — no more than in 3 minutes |
| Sensor life | 10 years |
| In-built siren | volume 85 dB at a distance of 3 meters |
| Tampering alarm | Alerts of attempts to detach the detector from the surface or remove the mounting panel |
| Protection against spoofing | device authentication |
| Power supply | 2 × CR123A battery, up to 7 years of battery life |
| Dimensions | 44 × 86 × 86 mm |
| Weight | 147 g |
| Operating temperature range | from 0°C to +50°C |
| Operating humidity | up to 80% |
| Protection class | IP20 |
| Complete set | FireProtect 2 RB (CO) Jeweller; SmartBracket mounting panel; Installation kit; 2 × CR123A battery (pre-installed); Quick start guide |
| Colour | Black |
