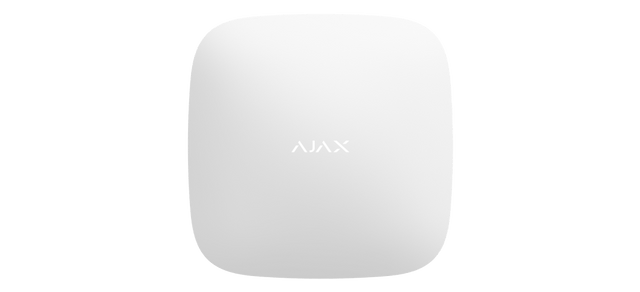

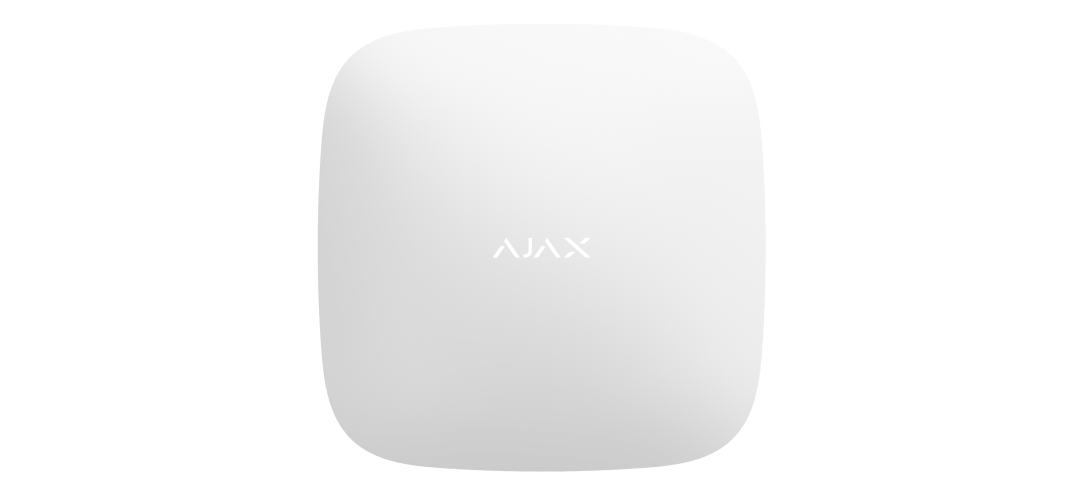

Ajax 37671.108.WH1 Hub 2 (4G) Wireless Control Panel, Ethernet and Two SIM Cards, White
About this product
The Ajax Hub 2 (4G) Jeweller is a wireless control panel with support for photo verification, connectable via Ethernet and two SIM cards (2G/3G/LTE), that manages up to 100 wireless Ajax devices. It talks to connected devices over Jeweller at up to 2,000 m in an open space, receives photo verifications over Wings, and sends push, SMS and call notifications to users and alarms to a monitoring station.
Key features
- Up to 100 wireless Ajax devices, including up to 10 sirens or keypads with a built-in siren and up to 5 range extenders
- Ethernet (up to 100 Mbps) plus 2 micro-SIM slots (2G/3G/LTE)
- Jeweller radio signal range up to 2,000 m in an open space
- Up to 25 IP cameras or DVRs, with RTSP support
- Up to 50 users, 32 automation scenarios, 9 security groups and 50 rooms
- Built-in Li-ion 3 Аh backup battery: up to 15 hours of offline operation when Ethernet is disconnected
- Monitoring protocols SIA (DC-09), SurGard (Contact ID) and ADEMCO 685
Frequently asked questions
How many devices can the Hub 2 (4G) Jeweller handle?
Up to 100 wireless Ajax devices, including up to 10 sirens or keypads with a built-in siren and up to 5 range extenders, plus up to 25 IP cameras or DVRs.
How does it connect to the internet?
Via Ethernet (1 8P8C socket, up to 100 Mbps) and two SIM cards in 2 micro-SIM slots (2G/3G/LTE). The communication channels work in parallel to increase the system’s reliability.
Does the hub have a backup battery?
Yes. The built-in rechargeable Li-ion 3 Аh battery gives up to 15 hours of offline operation when Ethernet is disconnected.
Which cameras can be added to the hub?
Up to 25 IP cameras or DVRs, with integration for Dahua, Hikvision, Safire, EZVIZ and Uniview IP cameras and DVRs, and RTSP support.
Can it send alarms to a monitoring station?
Yes. It supports the SIA (DC-09), SurGard (Contact ID) and ADEMCO 685 protocols, plus other proprietary protocols.
Can the hub be fitted outdoors?
No. The hub is designed for indoor installation only, with an IP20 protection class and an operating range of −10°C to +40°C.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 37671.108.WH1 |
| Manufacturer Part Number (MPN) | 37671.108.WH1 |
| Wireless Ajax devices | up to 100 |
| IP cameras or DVRs | up to 25 |
| Users | up to 50 |
| Automation scenarios | up to 32 |
| Security groups | up to 9 |
| Rooms | up to 50 |
| Jeweller radio signal range | up to 2,000 m (in an open space) |
| Wings radio signal range | up to 1,700 m (in an open space) |
| Polling interval | from 12 to 300 s |
| Ethernet | 1 8P8C socket, up to 100 Mbps |
| Cellular | 2 micro-SIM slots |
| Cellular bands | 2G GSM900/DCS1800 (B3/B8); 3G WCDMA 850/900/2100 (B1/B5/B8); 4G (LTE) FDD B1/B3/B5/B7/B8/B20 |
| Supported notification types | Push, SMS, Calls |
| Photo resolution | up to 640 × 480 pixels (depends on the detector) |
| Monitoring protocols | SIA (DC-09), SurGard (Contact ID), ADEMCO 685, other proprietary protocols |
| Main power supply | 110–240 V~, 50/60 Hz, up to 10 W of mains power consumption |
| Backup power | built-in rechargeable battery Li-ion 3 Аh, up to 15 hours of offline operation when Ethernet is disconnected |
| Plug type | Type G |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | Hub 2 (4G) Jeweller, SmartBracket mounting panel, Power cable, Ethernet cable, Installation kit, SIM card (depends on the sales region), User Manual |
| Colour | White |
