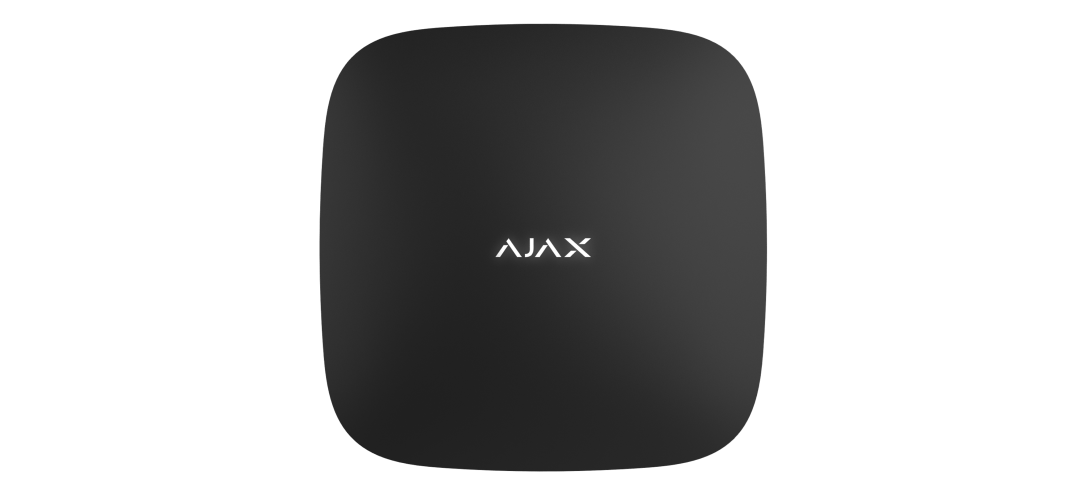

Ajax 22909.01.BL1 Hub (2G) Jeweller Wireless Control Panel, Up to 100 Wireless Devices, Ethernet and 2G SIM
About this product
The Ajax Hub (2G) Jeweller (22909.01.BL1) is a wireless control panel for Ajax security systems, connectable via Ethernet and a 2G SIM card. It connects up to 100 wireless Ajax devices, including up to 10 sirens and 1 range extender, and notifies users by push, SMS and calls.
Key features
- Connects up to 100 wireless Ajax devices, including up to 10 sirens and 1 range extender
- Jeweller radio range of up to 2,000 m between the hub and connected devices in an open space; maximum range depends on the connected device
- Ethernet (1 8P8C socket, up to 100 Mbps) and cellular (1 micro-SIM slot, 2G) communication channels
- Instant switching between Ethernet and SIM
- Built-in Li-ion 2 A·h backup battery: up to 15 hours of offline operation when the Ethernet is switched off
- Up to 50 users, up to 9 security groups and up to 50 rooms
- Supports up to 14 Ajax NVRs
- Monitoring protocols: SIA (DC-09), SurGard (Contact ID), ADEMCO 685 and other proprietary protocols
Frequently asked questions
How many devices can the Ajax Hub (2G) Jeweller connect?
Up to 100 wireless Ajax devices, including up to 10 sirens and 1 range extender.
Does it work with Ajax cameras and NVRs?
Yes. It supports up to 14 Ajax NVRs, and up to 224 Ajax cameras via Ajax NVRs or up to 200 standalone.
How long does the backup battery last?
The built-in Li-ion 2 A·h battery gives up to 15 hours of offline operation when the Ethernet is switched off.
Can Hub (2G) Jeweller be installed outdoors?
No. Hub (2G) Jeweller is designed for indoor installation only and has an IP20 protection class.
Does it support MotionCam detectors or temperature-based scenarios?
No. Support for MotionCam detectors is not provided on this hub, and Hub (2G) Jeweller does not support scenarios by temperature, humidity, and CO₂ concentration.
How does the hub connect to the internet?
Via Ethernet (1 8P8C socket, up to 100 Mbps) and a 2G cellular connection (1 micro-SIM slot). The channels work in parallel, with instant switching between Ethernet and SIM.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 22909.01.BL1 |
| Manufacturer Part Number (MPN) | 22909.01.BL1 |
| Wireless Ajax devices | up to 100 (up to 10 sirens and 1 range extender) |
| Ajax NVRs | up to 14 |
| Ajax cameras | up to 224 via Ajax NVRs and up to 200 standalone |
| Third-party IP cameras | up to 10 when using RTSP via SDK; up to 224 when using ONVIF via Ajax NVRs |
| Users | up to 50 |
| Automation scenarios | up to 5 |
| Security groups | up to 9 |
| Rooms | up to 50 |
| Wireless communication | Jeweller communication technology |
| Frequency bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depends on the sales region) |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio signal range | up to 2,000 m between the hub and connected devices (in an open space) |
| Polling interval | from 12 to 300 s |
| Ethernet | 1 8P8C socket, up to 100 Mbps |
| Cellular | 1 micro-SIM slot |
| Cellular bands | 2G: PCS1900/DCS1800/GSM850/GSM900 (B2/B3/B5/B8), depends on the sales region |
| Supported notification types | Push, SMS, Calls |
| Monitoring protocols | SIA (DC-09), SurGard (Contact ID), ADEMCO 685, other proprietary protocols |
| Main power supply | 110–240 V~, 50/60 Hz; up to 10 W of mains power consumption |
| Backup power supply | built-in backup rechargeable battery: Li-ion 2 A·h; up to 15 hours of offline operation when the Ethernet is switched off |
| Alternative power supply | 12 V⎓ via 12V PSU for Hub/Hub Plus/ReX (sold separately) |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 350 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Colour | Black |
