Ajax 56210.08.WH1 LeaksProtect Jeweller Wireless Water Leak Detector, IP65, White
About this product

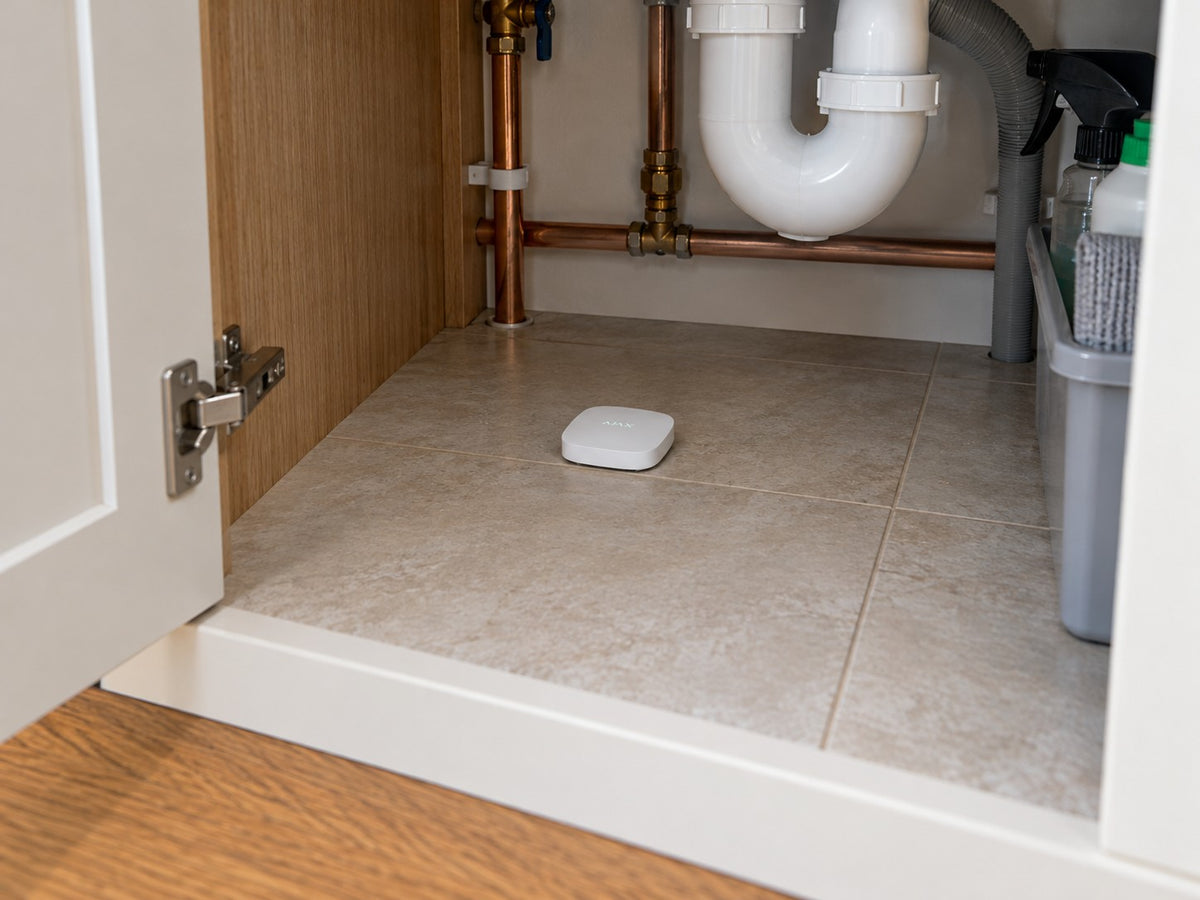

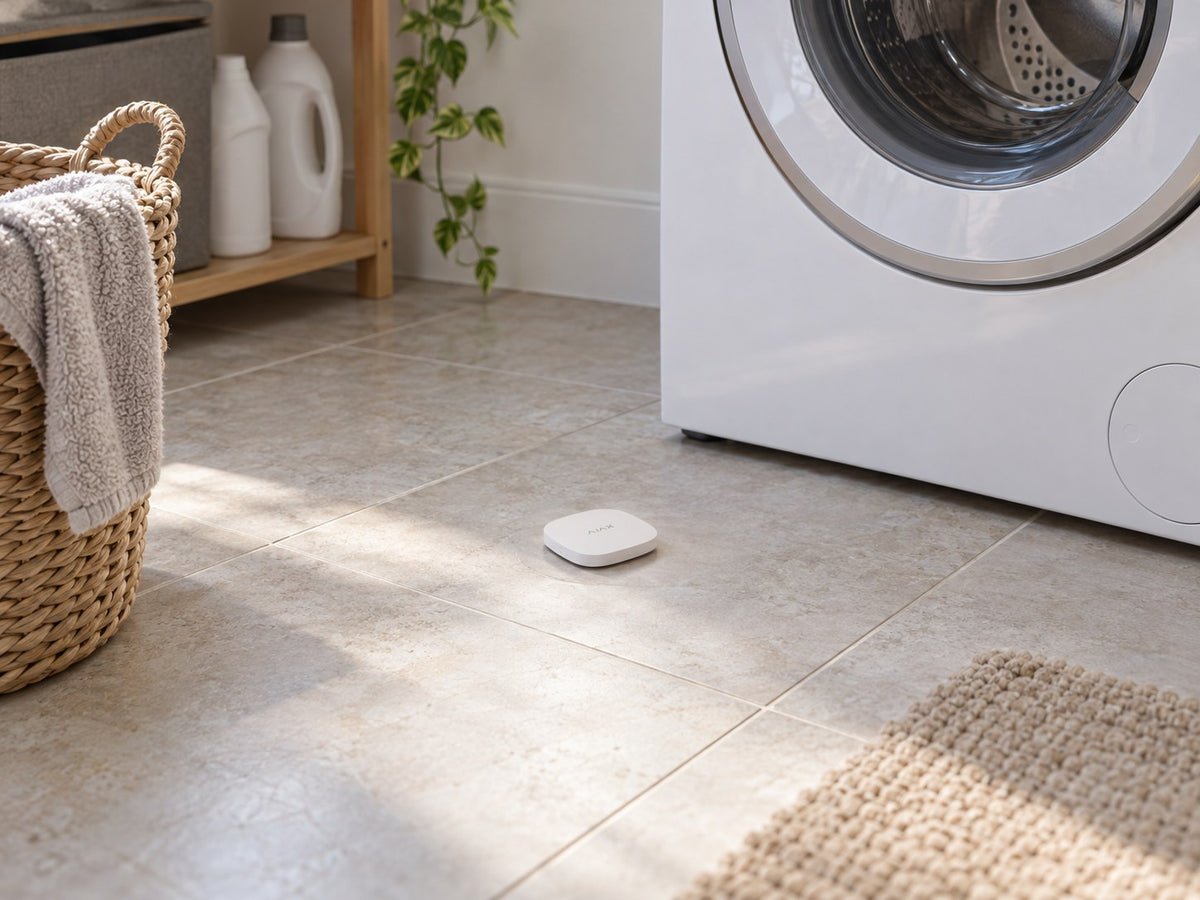

The Ajax LeaksProtect Jeweller (56210.08.WH1) is a wireless water leak detector in white that detects water leaks 24/7/365 and sends an alarm within 0.15 s as soon as it becomes wet on either side. It is placed on the floor under a washing machine, dishwasher, bathtub or heating radiator, and communicates with a hub (or a range extender) using Jeweller communication technology.
Key features
- Contact pairs on all four sides of the device detect the first signs of flooding as soon as water reaches at least one of them
- Detection time within 0.15 s
- Radio communication range up to 1,300 m between the device and a hub (or a range extender) in an open space
- Tool-free installation: placed on the floor under a washing machine, dishwasher, bathtub or heating radiator
- Powered by 2 × AAA batteries (pre-installed) with a calculated battery life of up to 5 years
- IP65 protection class
- Tamper alarm with notifications on attempts to violate the enclosure integrity
- Remote control and configuration via Ajax apps
Frequently asked questions
How quickly does the LeaksProtect Jeweller raise an alarm?
Detection time is within 0.15 s: the detector sends an alarm as soon as it becomes wet on either side. All four sides of the device have contact pairs.
What powers the detector and how long do the batteries last?
It runs on 2 × AAA batteries, pre-installed, with a calculated battery life of up to 5 years.
What is the radio range to the hub?
The radio communication range is up to 1,300 m between the device and a hub (or a range extender) in an open space.
Can it be installed outdoors?
No. The device is designed for indoor use only. Its enclosure has an IP65 protection class.
Can it shut off the water when it detects a leak?
It can activate automation scenarios. For example, it can trigger the WaterStop Jeweller shutoff valve to turn off the water supply in case of flooding.
What is in the box?
The complete set is the LeaksProtect Jeweller, 2 AAA batteries (pre-installed) and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 56210.08.WH1 |
| Manufacturer Part Number (MPN) | 56210.08.WH1 |
| Communication | Jeweller communication technology |
| Frequency bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depends on the sales region) |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,300 m (between the device and a hub or range extender, in an open space) |
| Detection time | within 0.15 s |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s (depends on the Jeweller or Jeweller/Fibra settings) |
| Battery | 2 × AAA, pre-installed |
| Calculated battery life | up to 5 years |
| Operating voltage range | 2.1−3.3 V⎓ |
| Nominal operating voltage | 3 V⎓ |
| Quiescent current consumption at nominal voltage | 14 μA |
| Maximum current consumption at nominal voltage | 33 mA |
| Full battery capacity | 1,000 mAh |
| Dimensions | 62 × 62 × 14 mm (white devices manufactured before May 2026: 59 × 59 × 14 mm) |
| Weight | 41 g |
| Operating temperature range | from 0 °C to +50°C |
| Operating humidity | up to 100% |
| Protection class | IP65 |
| Complete set | LeaksProtect Jeweller, 2 AAA batteries (pre-installed), quick start guide |
| Colour | White |
Ajax 56210.08.WH1 LeaksProtect Jeweller Wireless Water Leak Detector, IP65, White
