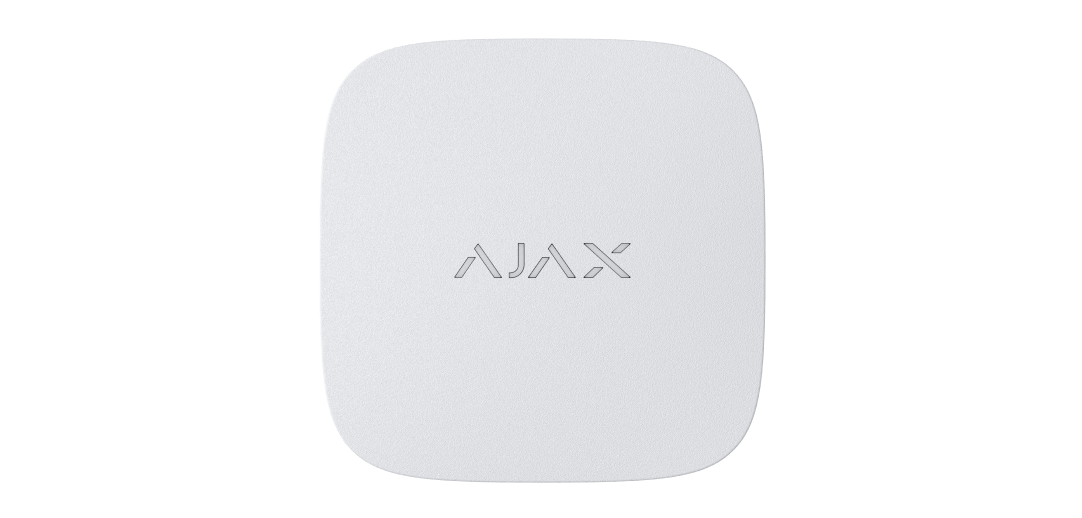

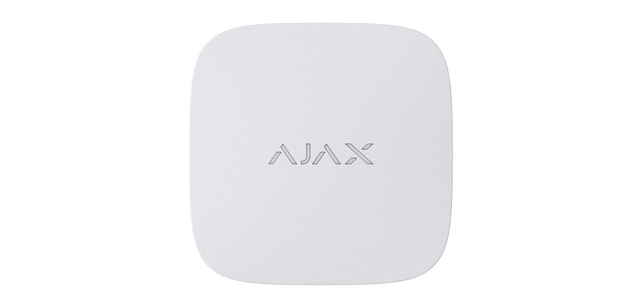

Ajax 52273.135.WH1 LifeQuality Wireless Air Quality Monitor, CO2 Sensor, White
About this product
The Ajax LifeQuality Jeweller is a wireless temperature, humidity and CO₂ monitor for indoor installation, measuring CO2 from 400 to 10,000 ppm alongside temperature and humidity and connecting wirelessly to a hub or range extender. Readings appear in the Ajax apps, and an LED on the enclosure lights up in the event of a critical change in air quality.
Key features
- Temperature and humidity sensor plus a CO2 (carbon dioxide) sensor in one wireless device
- CO2 measurement range from 400 to 10,000 ppm, accuracy ±30 ppm or ±3% when the CO₂ concentration is less than 5,000 ppm
- Temperature measured from 0 °C to +50 °C with ±0.2 °C accuracy
- Humidity measured from 0% to 100% with ±1.8% accuracy
- Charts of temperature, humidity and carbon dioxide concentration in the Ajax apps, with measurements stored for up to 2 years
- Backup memory stores measured values for up to 3 days if communication with the hub is lost
- Jeweller radio communication range of up to 1,700 m in an open space
- Powered by 2 × CR123A batteries, with up to 3 years of autonomous operation (2.5 years if LED indication and accelerometer are enabled)
Frequently asked questions
What does the LifeQuality Jeweller measure?
It measures temperature (from 0 °C to +50 °C), humidity (from 0% to 100%) and CO2 concentration (from 400 to 10,000 ppm).
What batteries does it use and how long do they last?
It runs on 2 × CR123A batteries, supplied pre-installed, with up to 3 years of autonomous operation (2.5 years if LED indication and accelerometer are enabled).
Does the CO2 sensor need calibrating?
It calibrates automatically once every 1–14 days, and in normal conditions (ventilated room) manual calibration is not required. In unventilated rooms, manual calibration is run in the Ajax apps.
What happens if it loses connection to the hub?
The backup memory stores all measured values for up to 3 days; after the connection is restored, all values are sent to the Ajax app.
Can it switch on ventilation automatically?
Scenarios can react to changes in temperature, humidity and carbon dioxide concentration, for example turning on plenum ventilation if the air quality deteriorates.
Does it have to be wall mounted?
No. It is not necessary to use the SmartBracket mounting panel; the detector can be placed on a table or shelf. It is designed only for indoor installation, at any height.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 52273.135.WH1 |
| Manufacturer Part Number (MPN) | 52273.135.WH1 |
| Sensitive elements | Temperature and humidity sensor, CO2 (carbon dioxide) sensor |
| Temperature measurement range | from 0 °C to +50 °C |
| Temperature measurement accuracy | ±0.2 °C |
| Temperature measurement pitch | 0.1 °C |
| Humidity measurement range | from 0% to 100% |
| Humidity measurement accuracy | ±1.8% |
| Humidity measurement pitch | 1% |
| CO2 measurement range | from 400 to 10,000 ppm |
| CO2 measurement accuracy | ±30 ppm or ±3% (when the CO₂ concentration is less than 5,000 ppm) |
| CO2 measurement pitch | 1 ppm |
| Automatic calibration | once every 1–14 days |
| Backup memory | up to 3 days |
| Communication technology | Jeweller |
| Radio communication range | up to 1,700 m (in an open space) |
| Radio signal modulation | GFSK |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Communication loss detection | within 36 seconds |
| Power supply | 2 × CR123A battery |
| Battery life | Up to 3 years of autonomous operation (2.5 years if LED indication and accelerometer are enabled) |
| Dimensions | 77 × 77 × 34.5 mm |
| Weight | 127 g |
| Operating temperature range | from 0 °C to +50 °C |
| Operating humidity | up to 85% |
| Protection class | IP50 |
| Complete set | LifeQuality Jeweller, SmartBracket mounting panel, 2 × CR123A battery (pre-installed), Installation kit, Quick start guide |
| Colour | White |
