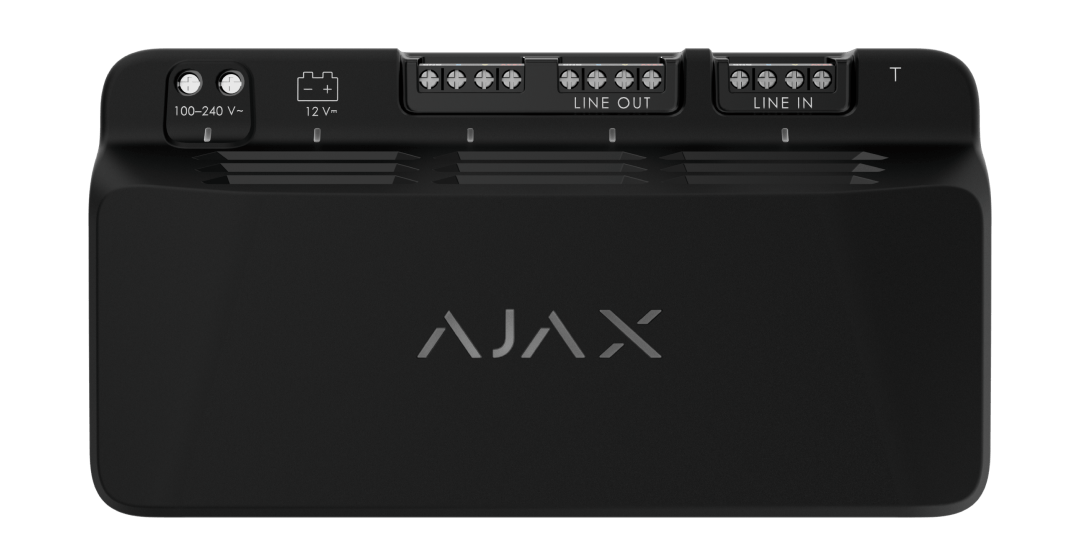

Ajax 82132.181.BL1 LineSupply Fibra Additional Power Supply Module, 45 W, Black
About this product
The Ajax Superior LineSupply (45 W) Fibra (82132.181.BL1) is a module for additional power supply with 45 W power and one output Fibra line, which connects to any point of a Fibra line. It can be installed after a hub, detector, keypad, siren or another LineSupply, and provides additional power to Fibra devices installed between the LineSupply (45 W) and the end of the line.
Key features
- Module for additional power supply with 45 W power and one output Fibra line
- Output line power: 30 W; backup battery charging: 15 W
- Fibra devices with a total power consumption of up to 30 W can be connected to the output line
- Galvanic isolation: devices after the module do not consume power from the hub
- Mains power 100–240 V~, 50/60 Hz
- Backup: 12 V⎓ battery with a capacity from 7 to 17 Ah (not included)
- Wired connection range up to 2,000 m to the hub and up to 2,000 m to the last Fibra device, using U/UTP cat.5 twisted pair
- Protection against overvoltage on the Fibra signal lines, plus short-circuit protection on the line
Frequently asked questions
How much power can the LineSupply (45 W) Fibra deliver to the line?
Power output is 30 W for the output line and 15 W to charge the backup battery. Fibra devices with a total power consumption of up to 30 W can be connected to the output line.
Is a backup battery included?
No. It takes a 12 V⎓ battery with a capacity from 7 to 17 Ah, which is not included. The backup battery is charged from the mains while main power is present.
Where on the Fibra line can it be installed?
It connects to any point of the Fibra line and can be installed after a hub, detector, keypad, siren or another LineSupply.
What cable length is supported?
Up to 2,000 m between the module and the hub, and up to 2,000 m between the module and the last Fibra device on the line, when using U/UTP cat.5 twisted pair.
Does it need an enclosure?
Installation in Case C (260) or Case D (430) is recommended. The casing is sold separately, and the tamper board is in the Case.
What is in the box?
Superior LineSupply (45 W) Fibra, power supply cable, battery connection cable, terminal adapter — 2 pcs., and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 82132.181.BL1 |
| Manufacturer Part Number (MPN) | 82132.181.BL1 |
| Communication | Fibra communication technology |
| Line connection | 4-core cable |
| Number of input lines | 1 |
| Number of output lines | 1 |
| Wired connection range | between the module and the hub — up to 2,000 m; between the module and the last Fibra device on the line — up to 2,000 m (U/UTP cat.5 twisted pair) |
| Power supply type | type A |
| Main | 100–240 V~, 50/60 Hz |
| Device’s nominal voltage | 12 V⎓ |
| Maximum current consumption at nominal voltage | 3 A |
| Backup | 12 V⎓ battery with a capacity from 7 to 17 Ah (not included) |
| Maximum time to recharge a battery of maximum capacity to 80% | up to 24 hours |
| Power output | of the output line — 30 W; to charge the backup battery — 15 W |
| Communication loss detection | after 36 s |
| Electric shock protection | Class III |
| Dimensions | 160 × 85 × 53 mm |
| Weight of the black device | 262 g |
| Operating temperature range | from –10 °C to +40 °C |
| Operating humidity | up to 75% |
| Complete set | Superior LineSupply (45 W) Fibra; Power supply cable; Battery connection cable; Terminal adapter — 2 pcs.; Quick start guide |
| Colour | Black |
