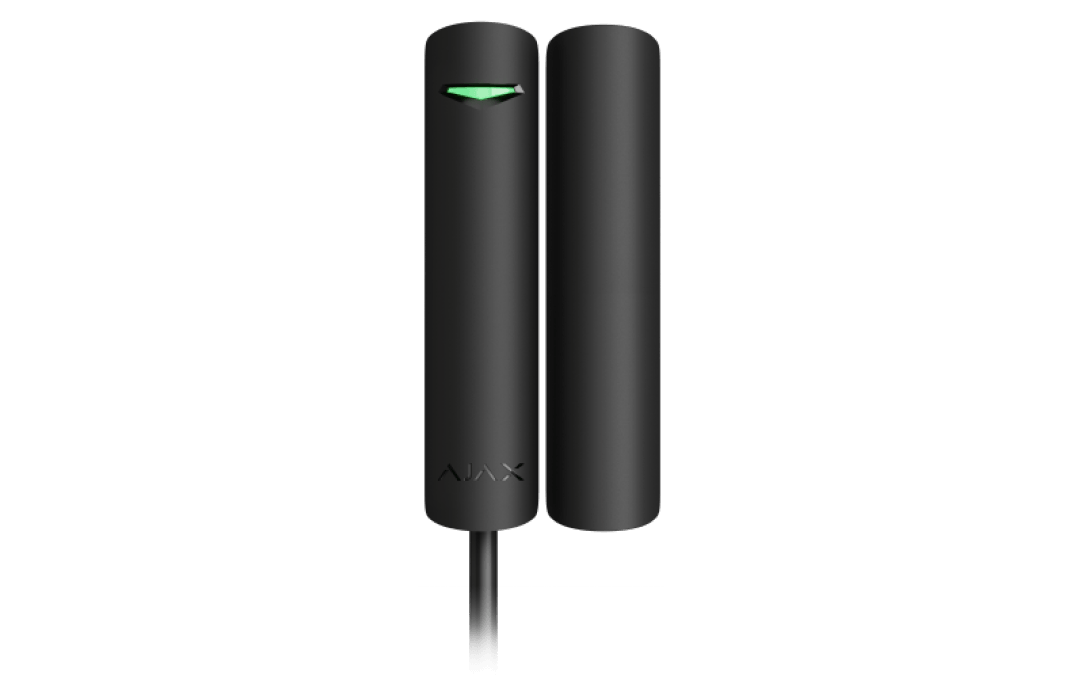

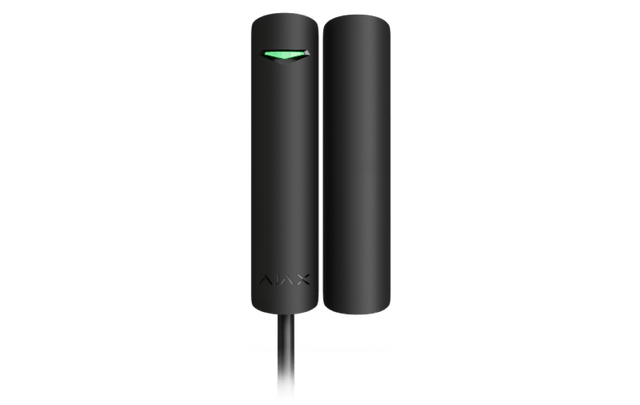

Ajax 44392.03.BL1 Superior DoorProtect Fibra Wired Opening Detector, Two Reed Switches, Black
About this product
The Ajax Superior DoorProtect Fibra (44392.03.BL1) is a wired opening detector with two reed switches for Ajax security systems, in black. It communicates over Fibra, the proprietary wired communication technology, is powered by the control panel and is designed for indoor use only.
Key features
- 2 × reed switch: the magnet can be installed to the right or left side of the detector
- Fibra wired communication with two-way communication and instant notifications
- Fibra line length up to 2,000 m when using U/UTP cat.5 twisted pair
- Additional detector connection for a third-party wired detector with the normally closed (NC) contact type
- Tampering alarm on attempts to detach the detector from the surface or remove the mounting panel
- Powered by the control panel: 5−30 V⎓, up to 106 mW
- Protection class IP50, IK04
- Device authentication for protection against forgery
Frequently asked questions
Is the Superior DoorProtect Fibra wired or wireless?
It is a wired opening detector. It communicates over Fibra, the proprietary wired communication technology, and connects to the line with a 4-core cable.
How is the detector powered?
It is powered by the control panel, with an operating voltage range of 5−30 V⎓, up to 106 mW, and a nominal operating voltage of 24 V⎓.
Which side does the magnet go on?
The magnet can be installed to the right or left side of the detector. Do not install it using both magnets at the same time: the detector recognises only one magnet on one side.
Can another wired detector be connected to it?
Yes. It has an additional detector connection for a third-party wired detector with the normally closed (NC) contact type.
Can it be installed outdoors?
No. The device is designed for indoor use only, and its protection class is IP50, IK04.
How long can the Fibra line be?
The Fibra line length can be up to 2,000 meters when using U/UTP cat.5 twisted pair.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 44392.03.BL1 |
| Manufacturer Part Number (MPN) | 44392.03.BL1 |
| Communication | Fibra communication technology |
| Line connection | 4-core cable |
| Fibra line length | up to 2,000 meters (U/UTP cat.5 twisted pair) |
| Sensing element | 2 × reed switch |
| Additional detector connection | Wired detector with the normally closed (NC) contact type |
| Tampering alarm | Alerts of attempts to detach the detector from the surface or remove the mounting panel |
| Protection against forgery | Device authentication |
| Detector's operating voltage range | 5−30 V⎓, up to 106 mW |
| Detector's nominal operating voltage | 24 V⎓ |
| Quiescent current consumption at nominal voltage | 0.044 mA |
| Maximum current consumption at nominal voltage | 4.4 mA |
| Dimensions | 90.5 × 21 × 18.5 mm |
| Weight (black device) | 15 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50, IK04 |
| Installation | Indoor use only |
| Complete set | Superior DoorProtect Fibra, big magnet, small magnet, installation kit, quick start guide |
| Colour | Black |
