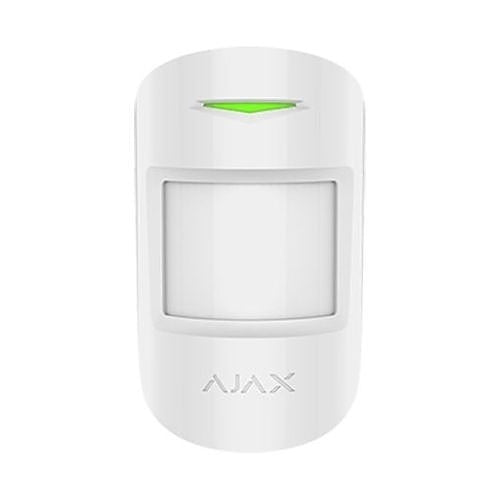

Ajax Systems 22940.09.WH1 wireless motion detector, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Ajax Systems 22940.09.WH1 is a wireless motion detector.
Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.
Key features
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
- Operates up to 5 years without battery replacement
- Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm
- Accurately detects motion in heat conditions, even at a temperature of +40°С
-
Download
- 22940.09.WH1 — User Manual
Technical Details
Specifications
Brand Name
Ajax Systems
Manufacturer Part Number
22940.09.WH1
Product Type
Motion Sensor
General information
Application/Usage
Home, Office
Packaged Quantity
1
Technical information
Connectivity Technology
Wireless
Maximum Motion Sensing Distance
12m
Maximum Time Delay
300s
Maximum Viewing Angle
88°
Passive Infrared Sensor (PIR)
Yes
Sensor Type
Infrared Sensor
Wireless Operating Distance
1700m
Certifications
Security Grade
Grade 2
Environmental conditions
Operating Temperature (T-T)
-10-40°C
Physical characteristics
Colour
White
Height
110.00mm
Weight
86.00g
Width
65.00mm
Power description
Power Source
Battery
Product information
Mount Type
Wall Mount
Remote control
Battery Included
Yes
Miscellaneous
Compatibility
Ajax Hubs
Indoor or outdoor use
Indoor
Package Contents
MotionCam Jeweller 2 x CR123A battery Pre-installed SmartBracket mounting panel Installation kit Quick Start Guide
Attributes
Compatibility
Ajax Hubs
Package Contents
MotionCam Jeweller 2 x CR123A battery Pre-installed SmartBracket mounting panel Installation kit Quick Start Guide
Power Source
Battery
Weight
86.00g
Specifications
| Brand Name | Ajax Systems |
|---|---|
| Manufacturer Part Number | 22940.09.WH1 |
| Product Type | Motion Sensor |
General information
| Application/Usage | Home, Office |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Maximum Motion Sensing Distance | 12m |
| Maximum Time Delay | 300s |
| Maximum Viewing Angle | 88° |
| Passive Infrared Sensor (PIR) | Yes |
| Sensor Type | Infrared Sensor |
| Wireless Operating Distance | 1700m |
Certifications
| Security Grade | Grade 2 |
|---|
Environmental conditions
| Operating Temperature (T-T) | -10-40°C |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Height | 110.00mm |
| Weight | 86.00g |
| Width | 65.00mm |
Power description
| Power Source | Battery |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Remote control
| Battery Included | Yes |
|---|
Miscellaneous
| Compatibility | Ajax Hubs |
|---|---|
| Indoor or outdoor use | Indoor |
| Package Contents | MotionCam Jeweller 2 x CR123A battery Pre-installed SmartBracket mounting panel Installation kit Quick Start Guide |
Attributes
| Compatibility | Ajax Hubs |
|---|---|
| Package Contents | MotionCam Jeweller 2 x CR123A battery Pre-installed SmartBracket mounting panel Installation kit Quick Start Guide |
| Power Source | Battery |
| Weight | 86.00g |
Ajax Systems 22940.09.WH1 wireless motion detector, White
