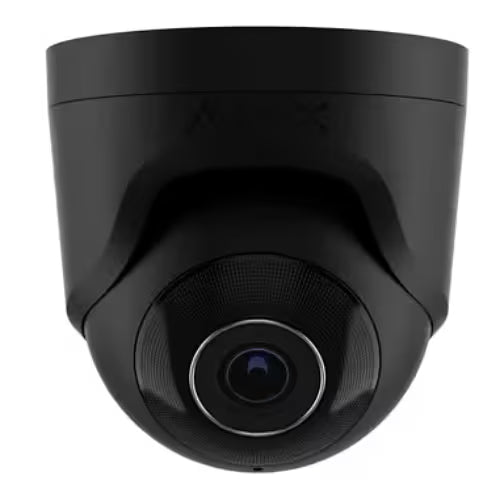

Ajax 64930.197.BL1 TurretCam AI-Powered IP Security Camera, 8MP, 4mm
About this product
The Ajax TurretCam (8 Mp/4 mm), model 64930.197.BL1, is a wired AI-powered IP security camera with IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records at up to 8 MP (3840 × 2160) through a 4 mm lens, with IR LED illumination up to 50 m and AI object detection of people, pets and vehicles.
Key features
- 8 MP CMOS image sensor, 1/2.8" type
- 4 mm fixed lens with f/1.6 maximum aperture
- IR LED illumination up to 50 m with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone to record audio at the scene
- PoE (802.3at/af, Class 3) or 12 V power supply
- IP66 and IK08 protection class
Frequently asked questions
Can the Ajax TurretCam (8 Mp/4 mm) be powered over PoE?
Yes. It supports PoE to 802.3at/af (36–57 V, Class 3) and can also run from a 12 V, 1 A power supply unit.
How far does the night vision reach?
The IR LEDs reach up to 50 m, and intelligent lighting control adjusts their intensity in real time to prevent overexposure.
What memory card does it take?
It supports microSD cards up to 256 GB, Class V30 or faster. The card is not included in the complete set; recording to an Ajax NVR is also supported.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with IP66 and IK08 protection and an operating temperature range from −30 °C to +60 °C.
What can the AI detection recognise?
AI object detection covers people, pets and vehicles.
Does it record audio?
Yes. With the corresponding settings, the built-in microphone records audio at the scene.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 64930.197.BL1 |
| Manufacturer Part Number (MPN) | 64930.197.BL1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 117.5 m, Observation: 47 m, Recognition: 23.5 m, Identification: 11.6 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160), 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps (Linear), up to 15 fps (HDR) |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included), Ajax NVR |
| Built-in microphone | Yes |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Network port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 8.5 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Sabotage protection | mTLS encrypted connection, authentication via Ajax Cloud, Secure Boot, OTA signature verification |
| Complete set | TurretCam (8 Mp/4 mm), installation template, installation kit, quick start guide |
| Colour | Black |
