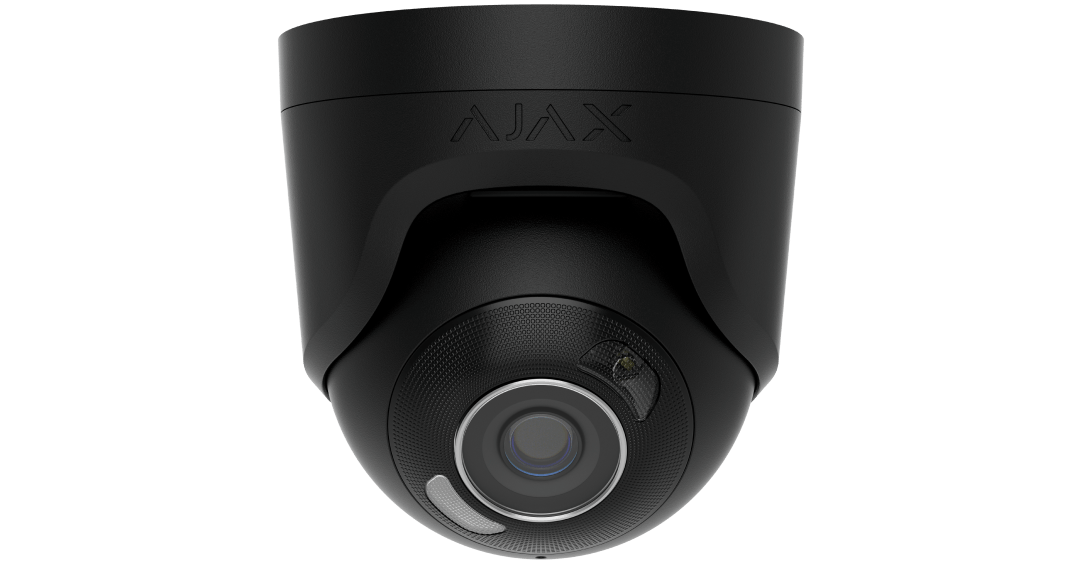

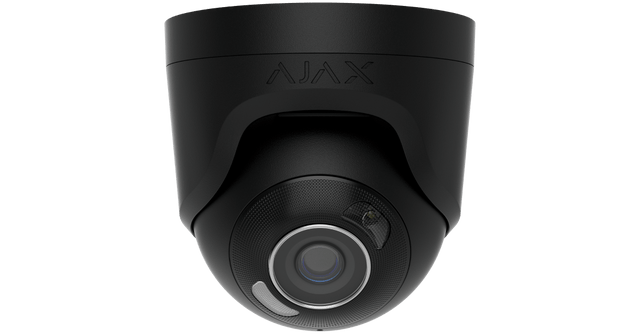

Ajax 126260.197.BL1 TurretCam HL AI-Powered Security IP Camera, 5 MP, 2.8 mm
About this product
The Ajax TurretCam HL (5 Mp/2.8 mm), article 126260.197.BL1 in black, is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It pairs a 5 MP CMOS sensor with a 2.8 mm lens, lights scenes with white and IR LEDs up to 50 m, detects people, pets and vehicles, and records to microSD or an Ajax NVR.
Key features
- 5 MP CMOS, 1/2.8" type image sensor
- 2.8 mm fixed lens, maximum aperture f/1.6; horizontal field of view 100–110°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m, with intelligent lighting control
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for recording audio at the scene, with the corresponding settings
- PoE (802.3at/af) or 12 V⎓ ± 20%, 1 A power supply
- IP66 and IK08 protection class
Frequently asked questions
How is the TurretCam HL (5 Mp/2.8 mm) powered?
By PoE (802.3at/af), with power consumption up to 7.2 W maximum and up to 6.9 W average, or by a 12 V⎓ ± 20%, 1 A power supply unit, with 12 V DC consumption up to 6.3 W maximum and up to 6 W average.
How far can it see at night?
The maximum illumination distance is up to 50 m for the white LED and up to 50 m for the IR LED. Minimum illumination is 0.005 lx in color and 0 lx in B/W.
Where does the camera store video?
On a microSD card up to 256 GB (Class V30 or faster) or on an Ajax NVR. The memory card is not included in the complete set.
Is the TurretCam HL ONVIF compatible?
It is conformant with ONVIF® Profile G and S. ONVIF® H.265 (HEVC) encoding, motion detection and AI recognition events and WDR control are implemented but are not ONVIF® profile or add-on conformant.
Can it be installed outdoors?
Yes. It is made for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What does the AI detect?
AI object detection recognises people, pets and vehicles. Motion detection uses software image frame analysis.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126260.197.BL1 |
| Manufacturer Part Number (MPN) | 126260.197.BL1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 100–110°; vertical: 50–60°; diagonal: 125–135° |
| DORI distance | Detection: 65 m; Observation: 26 m; Recognition: 13 m; Identification: 6.5 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620); 4 MP (2560 × 1440); 3 MP (2304 × 1296); 2 MP (1920 × 1080); 0.6 MP (1024 × 576) |
| Frame rate | up to 25 FPS |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.2 W; average: up to 6.9 W |
| Power supply unit | 12 V⎓ ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 6.3 W; average: up to 6 W |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
