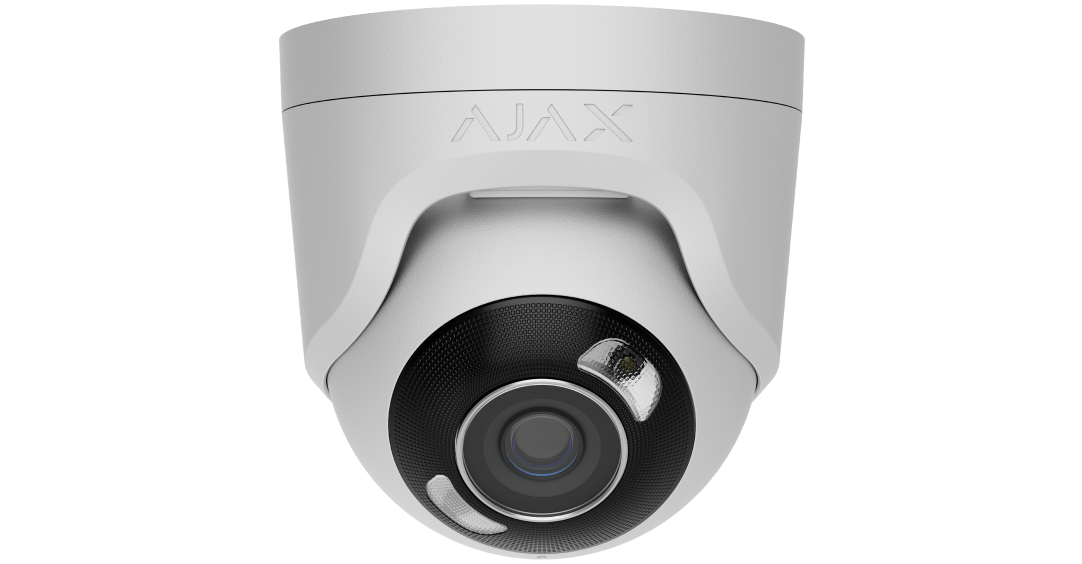

Ajax 126261.197.WH1 TurretCam HL Wired Security IP Camera, 5MP, 2.8mm
About this product

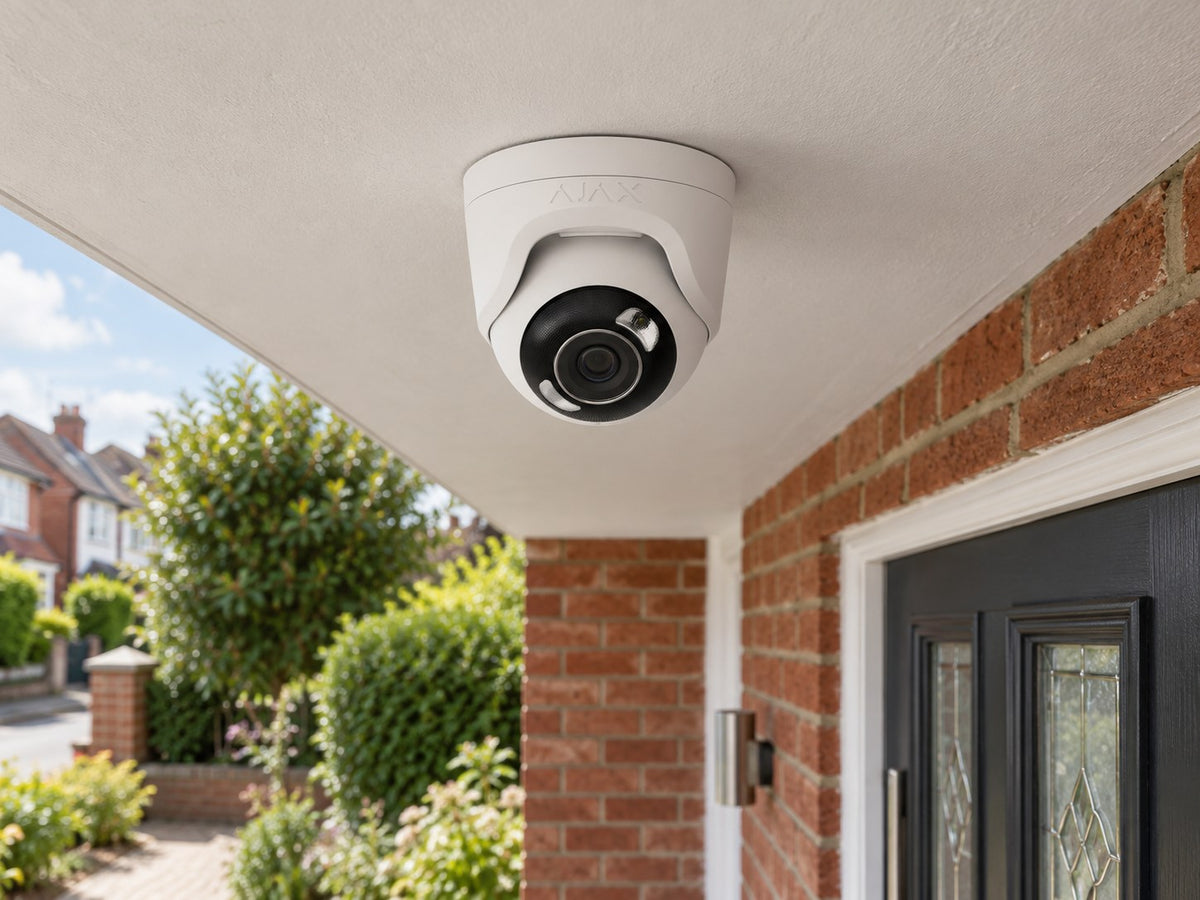

The Ajax TurretCam HL (5 Mp/2.8 mm) 126261.197.WH1 is a wired AI-powered security IP camera with a 110° viewing angle, hybrid illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. It records 5 MP (2880 × 1620) video and works within Ajax security systems, where Ajax detectors can trigger selected cameras to start recording.
Key features
- 5 MP CMOS, 1/2.8" type image sensor
- 2.8 mm fixed lens with a maximum aperture of f/1.6
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m
- Minimum illumination color: 0.005 lx, B/W: 0 lx
- 120 dB (True WDR)
- AI object detection of people, pets and vehicles
- Built-in microphone
- Protection class IP66, IK08
Frequently asked questions
How far can the TurretCam HL (5 Mp/2.8 mm) see in the dark?
White LED and IR LED illumination each reach up to 50 m, and minimum illumination is color: 0.005 lx, B/W: 0 lx.
How much power does it use?
On PoE (802.3at/af), power consumption is maximum: up to 7.2 W, average: up to 6.9 W. On a 12 V⎓ ± 20%, 1 A power supply unit it is maximum: up to 6.3 W, average: up to 6 W.
Where are recordings stored?
On microSD or an Ajax NVR. The camera supports microSD up to 256 GB, the card should be Class V30 or faster, and the card is not included in the complete set.
Can it be installed outdoors?

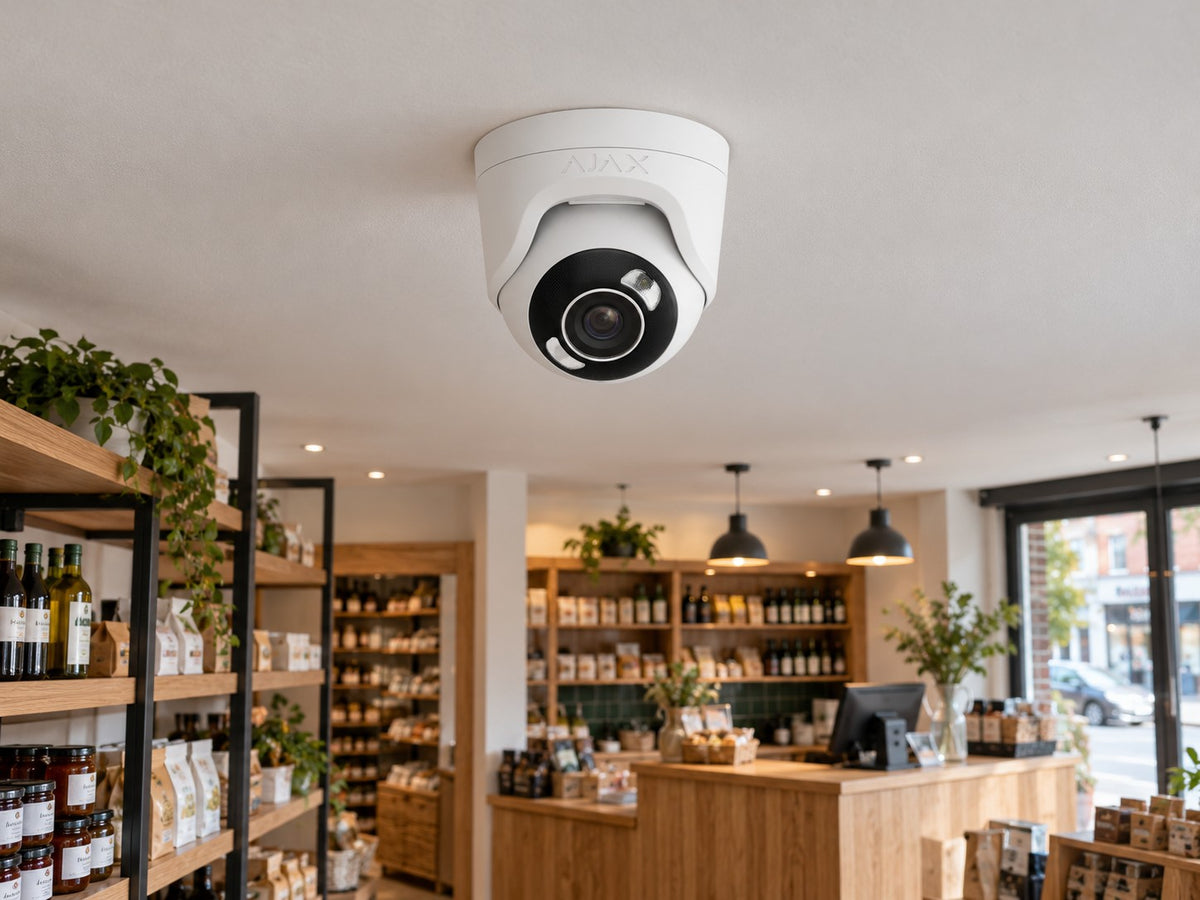

Yes. It is for outdoor and indoor use, with protection class IP66, IK08 and an operating temperature range from −30 °C to +60 °C.
What can the AI object detection recognise?
AI object detection covers people, pets and vehicles, and motion detection uses software image frame analysis.
What is in the box?
The complete set holds the TurretCam HL (5 Mp/2.8 mm), an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126261.197.WH1 |
| Manufacturer Part Number (MPN) | 126261.197.WH1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 65 m, Observation: 26 m, Recognition: 13 m, Identification: 6.5 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620) |
| Frame rate | up to 25 FPS |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| True WDR | 120 dB (True WDR) |
| Storage | microSD, Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.2 W; average: up to 6.9 W |
| Power supply unit | 12 V⎓ ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 6.3 W; average: up to 6 W |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | White |
