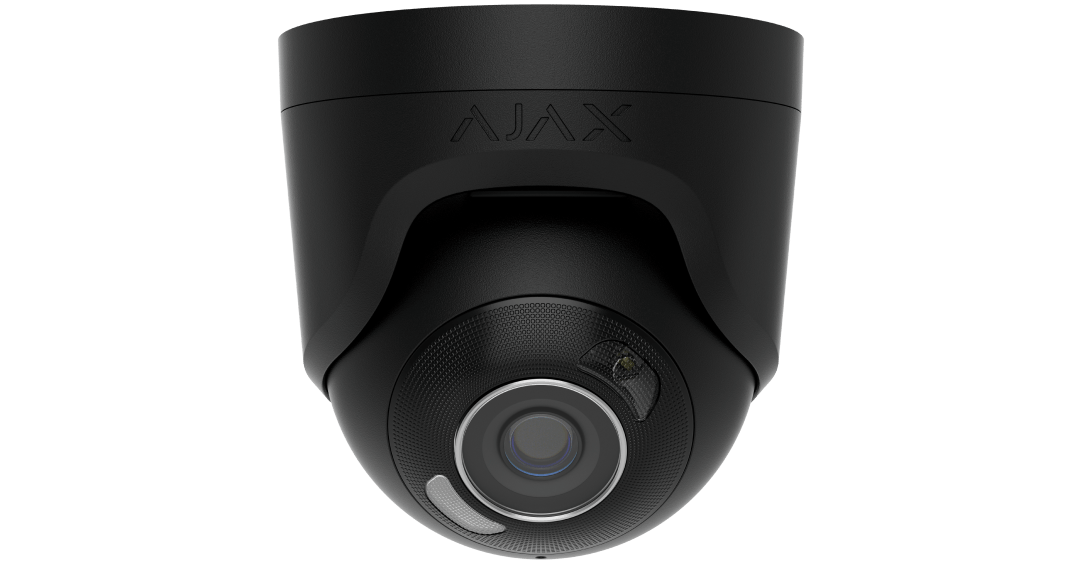

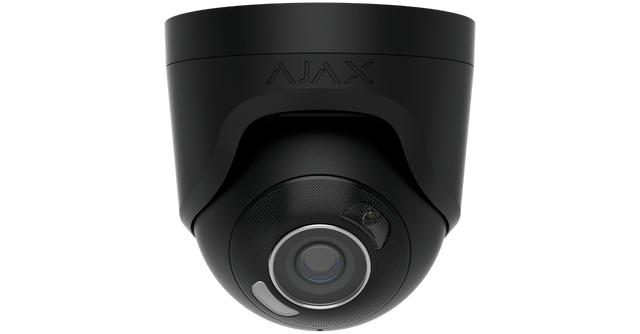

Ajax 126262.197.BL1 TurretCam HL Wired Security IP Camera, 5MP 4mm, Black
About this product
The Ajax TurretCam HL (5 Mp/4 mm) is a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 5 MP video with a 4 mm lens, detects people, pets and vehicles with AI object detection, and lights scenes up to 50 m with both white LEDs and IR LEDs.
Key features
- 5 MP CMOS image sensor, 1/2.8" type, recording at 5 MP (2880 × 1620)
- 4 mm fixed lens with f/1.6 maximum aperture; horizontal field of view 75–85°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m, with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af) or 12 V power supply
- IP66 and IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How far can the TurretCam HL (5 Mp/4 mm) see at night?
Its maximum illumination distance is up to 50 m with the IR LEDs and up to 50 m with the white LEDs.
How is the camera powered?
By PoE (802.3at/af), with power consumption of up to 7.2 W maximum, or by a 12 V⎓ ± 20%, 1 А power supply unit, with power consumption of up to 6.3 W maximum.
Where are recordings stored?
On a microSD card of up to 256 GB, Class V30 or faster, or on an Ajax NVR. The memory card is not included in the complete set.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, has IP66 and IK08 protection, and operates from −30 °C to +60 °C.
What can the AI detection recognise?
AI object detection recognises people, pets and vehicles; motion detection uses software image frame analysis.
Does it record sound?
Yes. With the corresponding settings, the built-in microphone records audio at the scene.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126262.197.BL1 |
| Manufacturer Part Number (MPN) | 126262.197.BL1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m |
| Maximum illumination distance | white LED: up to 50 m, IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx, B/W: 0 lx |
| Resolution | 5 MP (2880 × 1620) |
| Frame rate | up to 25 FPS |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Image rotation | 0°, 180° |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.2 W, average: up to 6.9 W |
| Power supply unit | 12 V⎓ ± 20%, 1 А |
| 12 V DC power consumption | maximum: up to 6.3 W, average: up to 5.9 W |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | TurretCam HL (5 Mp/4 mm), Installation template, Installation kit, Quick start guide |
| Colour | Black |
