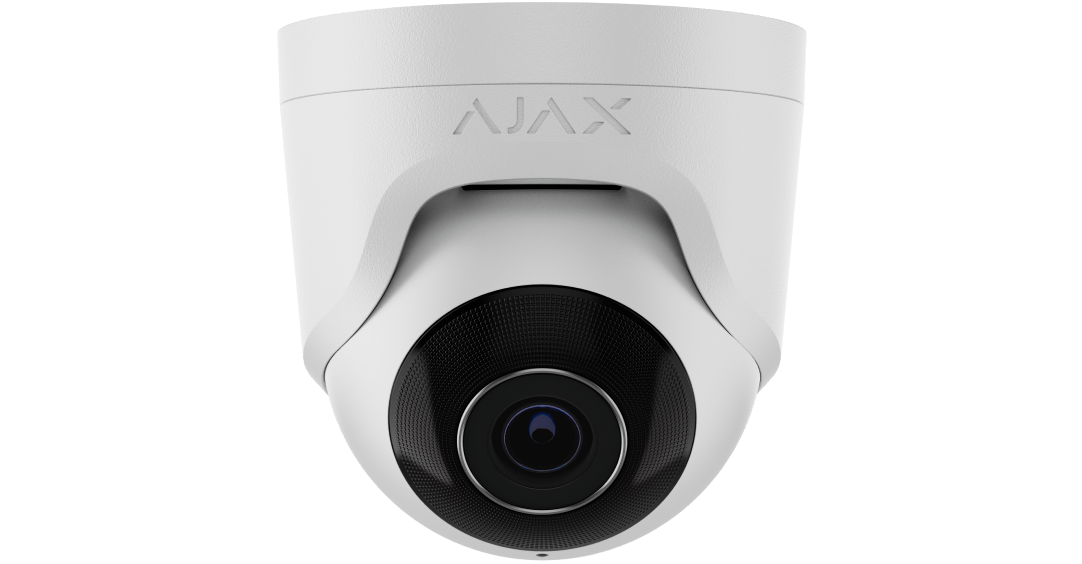

Ajax 64925.197.WH1 TurretCam Wired AI-powered IP Security Camera, 5MP, 4mm
About this product
The Ajax TurretCam (5 Mp/4 mm), article code 64925.197.WH1 in White, is a wired AI-powered IP security camera with an 85° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records at up to 5 MP (2880 × 1620) and detects people, pets and vehicles with AI object detection.
Key features
- 5 MP CMOS sensor, 1/2.7" type, recording at up to 5 MP (2880 × 1620)
- 4 mm fixed lens with f/1.6 maximum aperture and a horizontal field of view of 75–85°
- IR LED illumination up to 50 m
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone that can record audio at the scene with the corresponding settings
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V⎓ power
- IP66, IK08 protection class
Frequently asked questions
How far can the TurretCam (5 Mp/4 mm) see at night?
Its maximum illumination distance is up to 50 m with the IR LED.
Can it be powered by PoE?
Yes. It supports PoE to 802.3at/af, 36–57 V, Class 3, with an average power consumption of 8.5 W. It can also use a 12 V⎓, 1 A power supply unit.
Where does it store recordings?
On microSD up to 256 GB (Class V30 or faster; the card is not included in the complete set) or on an Ajax NVR.
What is the field of view of the 4 mm lens?
Horizontal: 75–85°, vertical: 40–50° and diagonal: 105–115°.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What is in the box?
The complete set is the TurretCam (5 Mp/4 mm), an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 64925.197.WH1 |
| Manufacturer Part Number (MPN) | 64925.197.WH1 |
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 86 m; Observation: 34.4 m; Recognition: 17.2 m; Identification: 8.6 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 5 MP (2880 × 1620) |
| Frame rate | up to 20 fps (Linear); up to 15 fps (HDR) |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, card not included); Ajax NVR |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 8.5 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | TurretCam (5 Mp/4 mm); Installation template; Installation kit; Quick start guide |
| Colour | White |
Ajax 64925.197.WH1 TurretCam Wired AI-powered IP Security Camera, 5MP, 4mm
