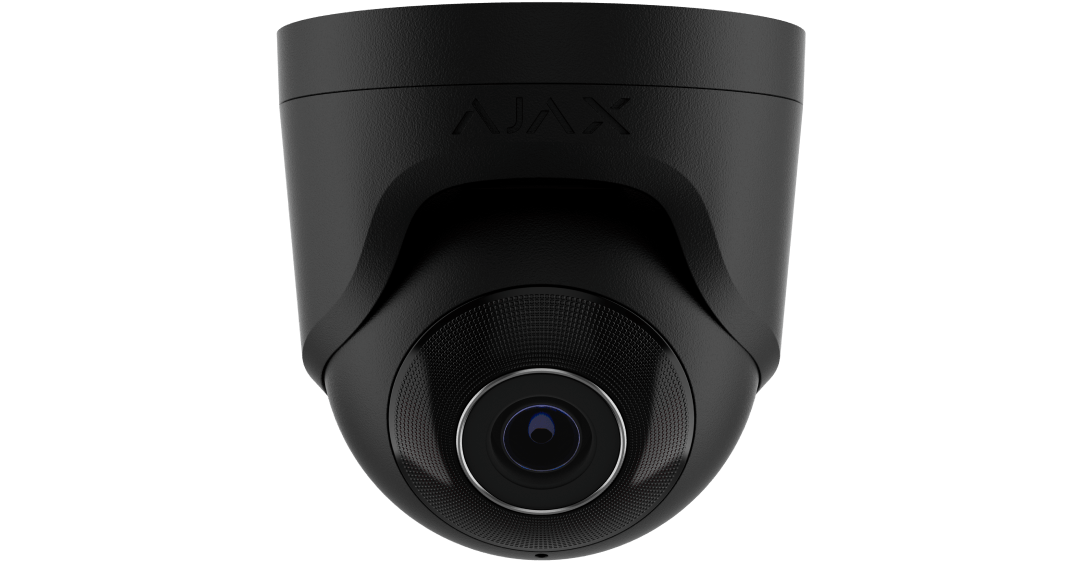

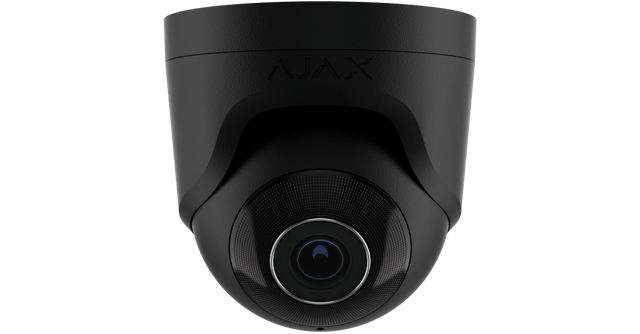

Ajax 64928.197.BL1 TurretCam Wired AI-powered IP Security Camera, 8MP, 2.8mm
About this product
The Ajax TurretCam (8 Mp/2.8 mm), article code 64928.197.BL1, is a wired AI-powered IP security camera with a 2.8 mm lens, IR illumination, True WDR, a built-in microphone and PoE or 12 V power. It is for Ajax security systems, where Ajax detectors can trigger it to record, and is made for outdoor and indoor use.
Key features

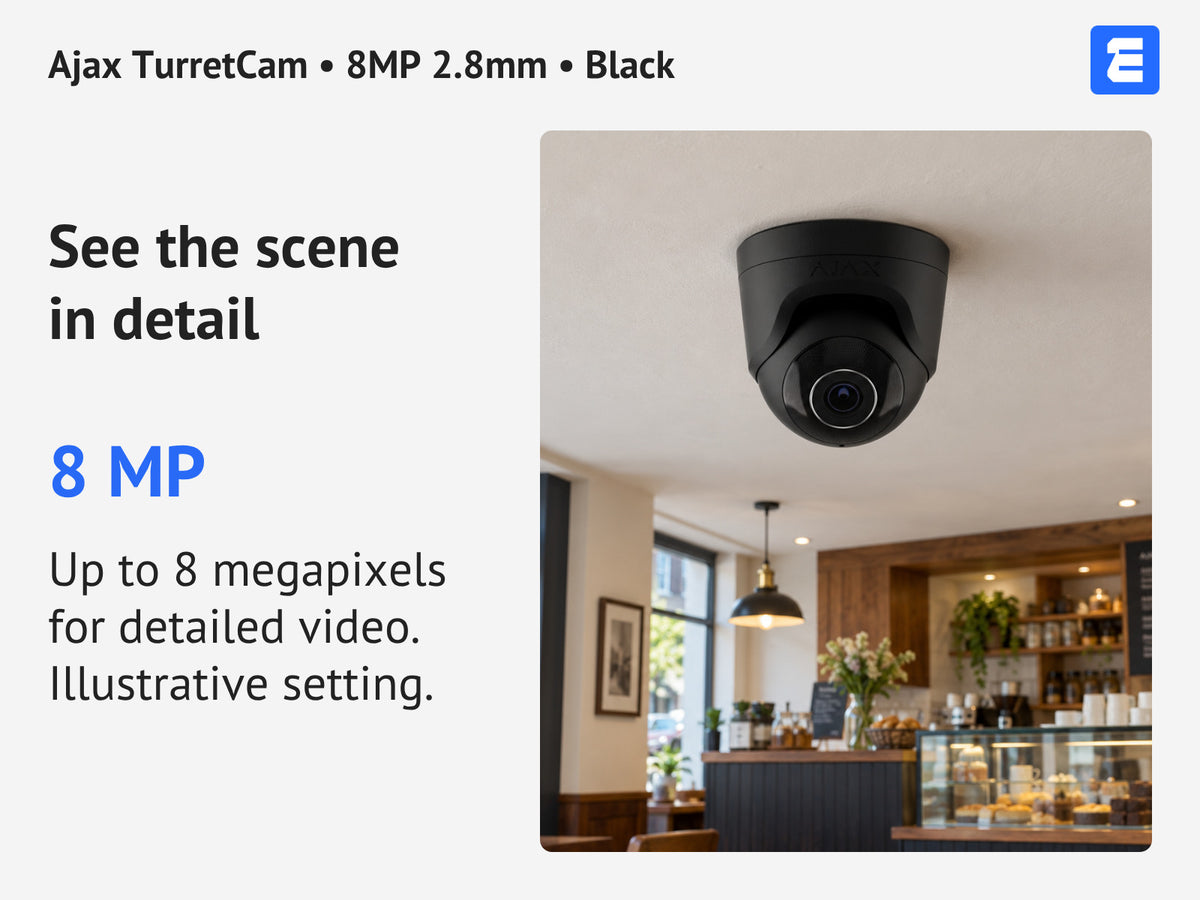

- 8 MP CMOS image sensor, 1/2.8" type
- 2.8 mm fixed lens with f/1.6 maximum aperture
- IR LED illumination up to 50 m with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles

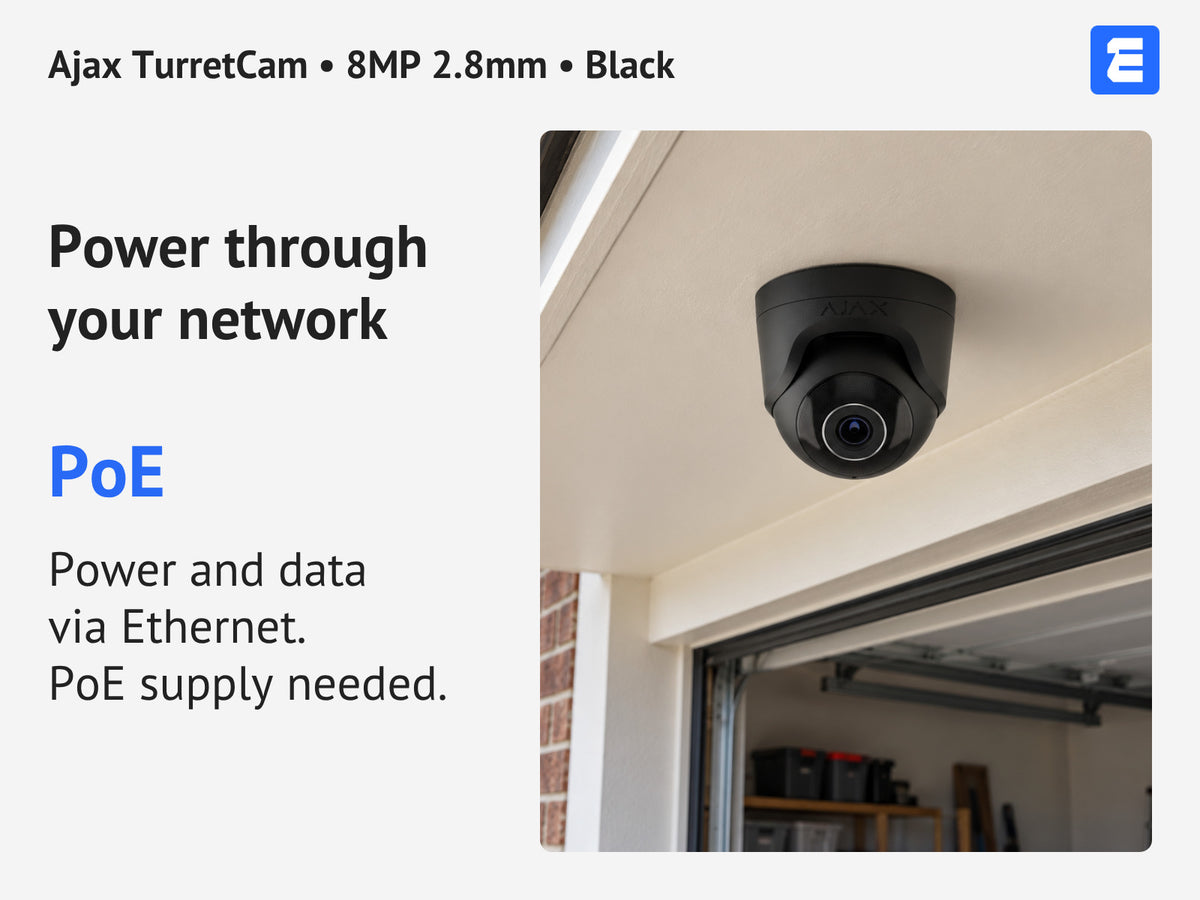

- PoE (802.3at/af, Class 3) or 12 V power
- microSD up to 256 GB, or recording to Ajax NVR
- IP66, IK08 protection class
Frequently asked questions
Does the Ajax TurretCam (8 Mp/2.8 mm) support PoE?
Yes. It supports PoE to 802.3at/af, 36–57 V, Class 3, and can also run from a 12 V, 1 A power supply unit. Average power consumption is 8.5 W.
How far can it see in the dark?
IR LED illumination reaches up to 50 m, and intelligent lighting control adjusts IR intensity in real time to prevent overexposure.
Where does the camera store video?
On a microSD card of up to 256 GB (Class V30 or faster) or on an Ajax NVR. The memory card is not included in the complete set.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What can the AI detection recognise?
AI object detection covers people, pets and vehicles.
Which ONVIF profiles does it conform to?
It is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 64928.197.BL1 |
| Manufacturer Part Number (MPN) | 64928.197.BL1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Field of view (horizontal) | 100–110° |
| Field of view (vertical) | 50–60° |
| Field of view (diagonal) | 125–135° |
| DORI distance (detection) | 90 m |
| DORI distance (observation) | 36 m |
| DORI distance (recognition) | 18 m |
| DORI distance (identification) | 9 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160) |
| Frame rate (Linear) | up to 20 fps (Linear) |
| Frame rate (HDR) | up to 15 fps (HDR) |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD up to 256 GB |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| Secure Boot | Protection against firmware spoofing. |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 8.5 W |
| Power supply unit | 12 V⎓, 1 А |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
