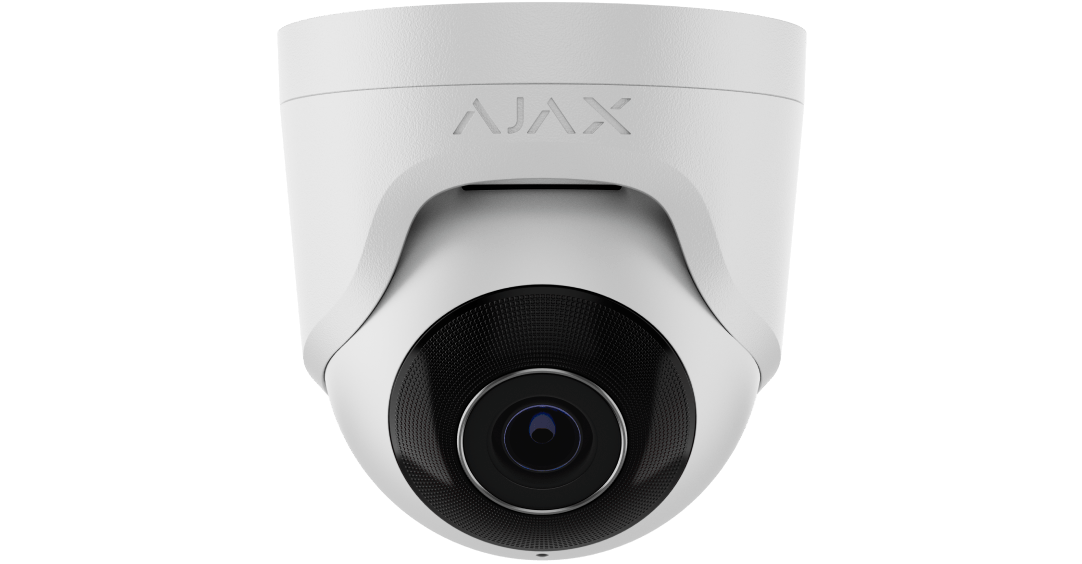

Ajax 64927.197.WH1 TurretCam Wired IP Security Camera, 8MP, 2.8mm
About this product
The Ajax TurretCam (8 Mp/2.8 mm) 64927.197.WH1 is a wired AI-powered IP security camera with a 110° viewing angle, IR illumination, True WDR, microphone, and PoE/12 V, for outdoor and indoor use. It records 8 MP (3840 × 2160) video and works within Ajax security systems, where Ajax detectors can trigger selected cameras to start recording.
Key features
- 8 MP CMOS, 1/2.8" type image sensor
- 2.8 mm fixed lens with a maximum aperture of f/1.6
- IR LED illumination up to 50 m
- 120 dB (True WDR)
- AI object detection of people, pets and vehicles
- Built-in microphone
- PoE 802.3at/af, 36–57 V, Class 3, or a 12 V⎓, 1 A power supply unit
- Protection class IP66, IK08
Frequently asked questions
How far can the TurretCam (8 Mp/2.8 mm) see at night?
Its IR LED illumination reaches up to 50 m, and intelligent lighting control automatically adjusts the intensity of IR LEDs in real time to prevent overexposure.
How is the camera powered?
It takes PoE (802.3at/af, 36–57 V, Class 3) or a 12 V⎓, 1 A power supply unit. Average power consumption is 8.5 W.
Where are recordings stored?
On microSD or an Ajax NVR. The camera supports microSD up to 256 GB, the card should be Class V30 or faster, and the card is not included in the complete set.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, with protection class IP66, IK08 and an operating temperature range from −30 °C to +60 °C.
What can the AI object detection recognise?
AI object detection covers people, pets and vehicles, and motion detection uses software image frame analysis.
What is in the box?
The complete set holds the TurretCam (8 Mp/2.8 mm), an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 64927.197.WH1 |
| Manufacturer Part Number (MPN) | 64927.197.WH1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 90 m, Observation: 36 m, Recognition: 18 m, Identification: 9 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps (Linear), up to 15 fps (HDR) |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| True WDR | 120 dB (True WDR) |
| Storage | microSD, Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 8.5 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | White |
