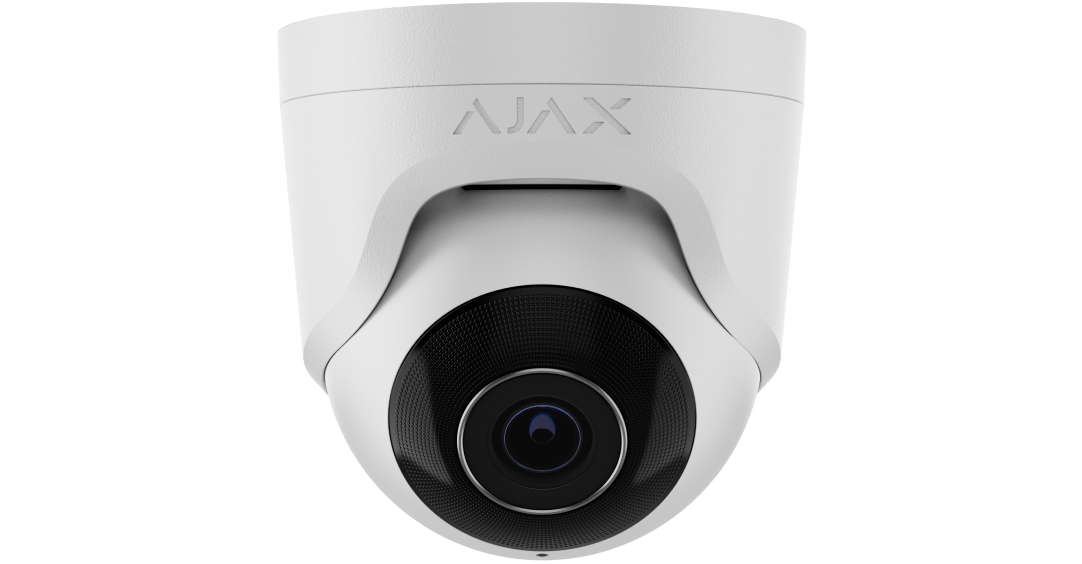

Ajax 64929.197.WH1 TurretCam Wired IP Security Camera, 8MP, 4mm
About this product
The Ajax TurretCam (8 Mp/4 mm), article 64929.197.WH1, is a wired AI-powered IP security camera in white with an 85° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records to a microSD card or an Ajax NVR, detects people, pets and vehicles with AI object detection, and Ajax detectors can trigger it to start recording so the event goes straight to the monitoring app.
Key features
- 8 MP CMOS image sensor, 1/2.8" type
- 4 mm lens with f/1.6 maximum aperture
- IR LED illumination up to 50 m with intelligent lighting control
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af, 36–57 V, Class 3) or 12 V⎓, 1 A power
- IP66 and IK08 protection class
Frequently asked questions
How far can the TurretCam (8 Mp/4 mm) see at night?
Its IR LEDs give a maximum illumination distance of up to 50 m.
How is it powered?
By PoE (802.3at/af, 36–57 V, Class 3) or a 12 V⎓, 1 A power supply unit. Average power consumption is 8.5 W.
Where are recordings stored?
On a microSD card up to 256 GB (Class V30 or faster) or an Ajax NVR. The card is not included in the complete set.
Can it be used outdoors?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating range from −30 °C to +60 °C.
Does it record sound?
Yes. With the corresponding settings, the built-in microphone lets the camera record audio at the scene.
Does it work with Ajax alarms?
Yes. A scenario can let Ajax detectors trigger selected cameras to start recording, and the recorded event is sent immediately to the mobile or desktop monitoring app.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 64929.197.WH1 |
| Manufacturer Part Number (MPN) | 64929.197.WH1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Field of view | horizontal: 75–85°; vertical: 40–50°; diagonal: 105–115° |
| DORI distance | Detection: 117.5 m; Observation: 47 m; Recognition: 23.5 m; Identification: 11.6 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160); 5 MP (2880 × 1620); 4 MP (2560 × 1440); 3 MP (2304 × 1296); 2 MP (1920 × 1080); 0.6 MP (1024 × 576) |
| Frame rate | up to 20 fps (Linear); up to 15 fps (HDR) |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster; not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF | conformant with ONVIF Profile G and S |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 8.5 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | White |
