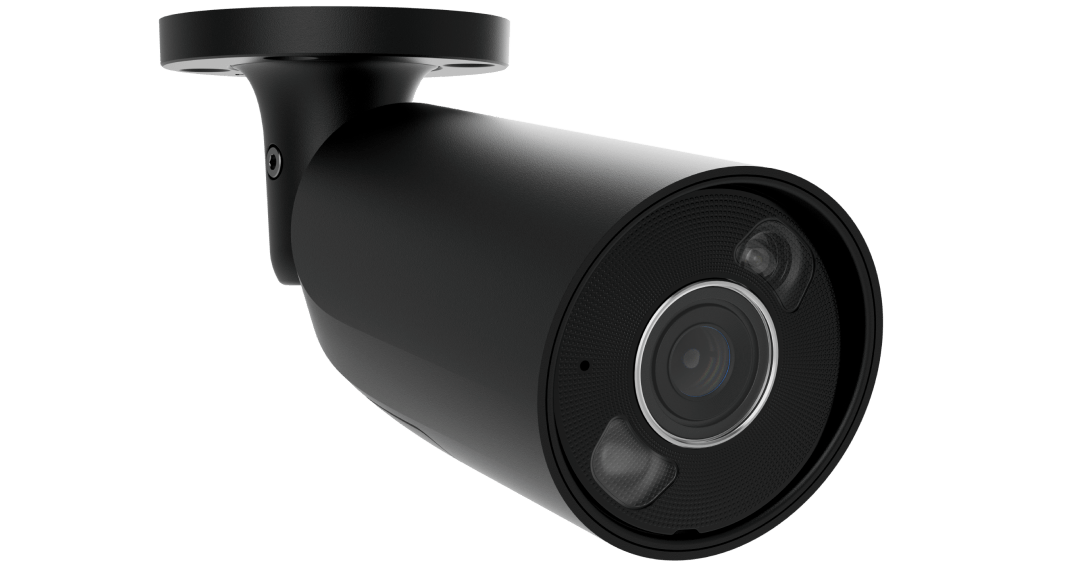

Ajax 126254.217.BL1 Wired AI-Powered IP Bullet Camera, 5MP, 4mm
About this product
The Ajax BulletCam HL (5 Mp/4 mm) is a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 5 MP (2880 × 1620) video at up to 25 fps, uses AI object detection for people, pets and vehicles, and lights the scene with white and IR LEDs at up to 50 m.
Key features
- 5 MP CMOS sensor (1/2.8" type) recording up to 5 MP (2880 × 1620) at up to 25 fps
- Fixed 4 mm lens, f/1.6, horizontal field of view 75–85°
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m, with intelligent lighting control
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af) or 12 V DC power, PoE consumption maximum up to 7.3 W
- IP66 and IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
Can the BulletCam HL (5 Mp/4 mm) be powered over PoE?
Yes. It supports PoE (802.3at/af) with a maximum consumption of up to 7.3 W, or a 12 V DC ± 20%, 1 A power supply unit.
Does it record to a memory card?
Yes. It supports microSD up to 256 GB; the card should be Class V30 or faster and is not included in the complete set. It can also record to an Ajax NVR.
How far can it see in the dark?
Its white LED and IR LED illumination each reach up to 50 m, and minimum illumination is 0 lx in B/W.
What can its AI detect?
AI object detection recognises people, pets and vehicles.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, rated IP66 and IK08, with an operating temperature range of −30 °C to +60 °C.
Does it work with third-party recorders?
It is conformant with ONVIF® Profile G and S.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126254.217.BL1 |
| Manufacturer Part Number (MPN) | 126254.217.BL1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type / focal type | fixed / fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution (max.) | 5 MP (2880 × 1620) |
| Frame rate | up to 25 fps |
| Video codec | H.265, H.264 |
| True WDR | 120 dB |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included); Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.3 W; average: up to 6.0 W |
| Power supply unit | 12 V DC ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 6.2 W; average: up to 5.1 W |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | Black |
| Complete set | BulletCam HL (5 Mp/4 mm), Installation template, Installation kit, Quick start guide |
