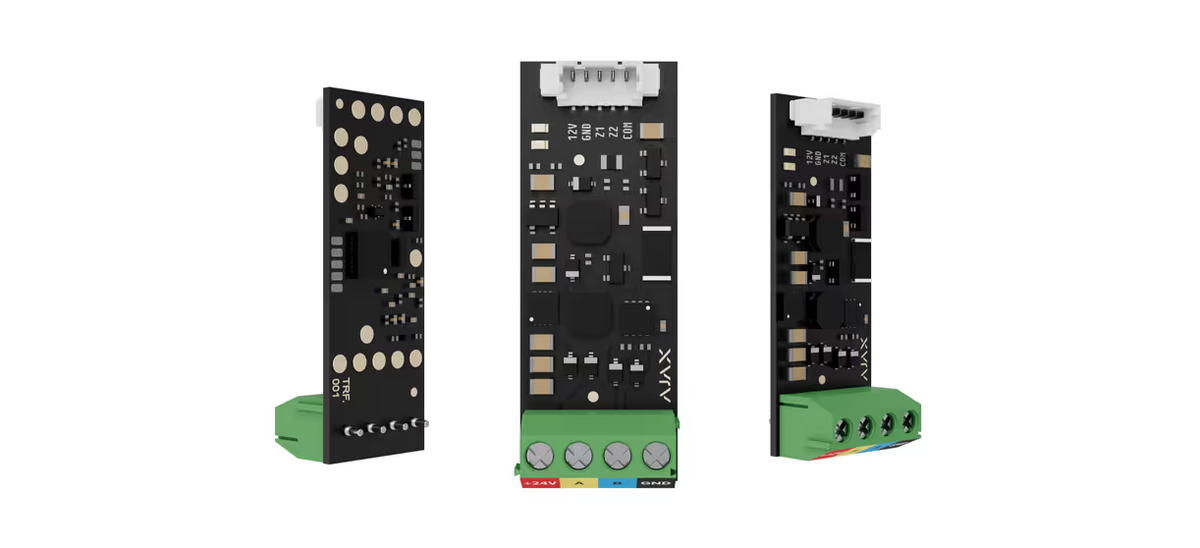

Ajax 143643.182.NC1 Wired Module for a Third-Party Device, Fibra, 15 Event Types
About this product
The Ajax Superior Transmitter Fibra (143643.182.NC1) is a wired module to integrate one third-party device into the Ajax system, connecting to any point of the Fibra line.
Key features
- Fibra communication technology with two-way communication
- Connects to any point of the Fibra line, up to 2,000 m with U/UTP cat.5 twisted pair cable
- 2 inputs (Z1 and Z2) for one wired detector using the AATT scheme
- 15 event types of wired devices, including intrusion, fire, panic button and glass break
- Powered by the hub: 7–30 V operating range, 24 V nominal
- Output to the connected wired device: 10.5–15 V, up to 50 mA
Frequently asked questions
How is the Superior Transmitter Fibra powered?
The hub powers the module. Its operating voltage range is 7–30 V⎓, with a nominal operating voltage of 24 V⎓.
Can it power the wired detector it connects?
Yes. It has an output to the connected wired device of 10.5–15 V⎓, up to 50 mA (total maximum current consumption), from its 12V power supply output pin.
How long can the Fibra line be?
Up to 2,000 m when using the U/UTP cat.5 twisted pair cable. The module connects to any point of the Fibra line.
Where is the module fitted?
It should be installed inside the wired detector case, which needs a space of at least 40 × 15 × 12 mm. The signal cable to the detector can be up to 3 m with a 0.22 mm² copper conductor.
What is in the box?
Superior Transmitter Fibra, an accessory 5-pin cable and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 143643.182.NC1 |
| Manufacturer Part Number (MPN) | 143643.182.NC1 |
| Communication | Fibra communication technology |
| Line connection | 4-core cable |
| Connection | to any point of the Fibra line |
| Fibra line length | up to 2,000 m (U/UTP cat.5 twisted pair cable) |
| Supported configurations | roller shutter, tamper, wired device with 15 event types |
| Inputs | 2 inputs (Z1 and Z2), AATT scheme |
| Cable length | up to 3 m (0.22 mm² copper conductor) |
| Operation mode | pulse, bistable |
| Event types | 15 event types of wired devices |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s |
| Module's operating voltage range | 7–30 V⎓, 185 mW (no load) / 1224 mW (with load) |
| Module's nominal operating voltage | 24 V⎓ |
| Quiescent current consumption at nominal voltage | 2.1 mA |
| Maximum current consumption at nominal voltage | 7.7 mA (no load), 51 mA (with load) |
| Output to the connected wired device | 10.5–15 V⎓, up to 50 mA (total maximum current consumption) |
| Dimensions | 40 × 15 × 12 mm |
| Weight | 6 g |
| Operating temperature range | from −25 °C to +50 °C |
| Operating humidity | up to 75% |
| Electric shock protection | Class II |
| Complete set | Superior Transmitter Fibra, Accessory 5-pin cable, Quick start guide |
