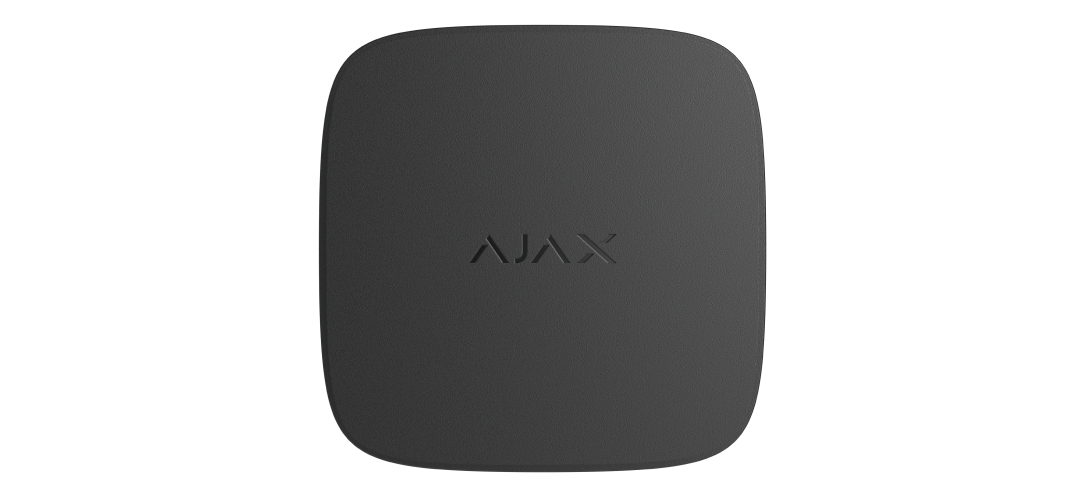

Ajax 52257.150.BL1 Wireless Heat, Smoke and CO Detector, 10-Year Sealed Batteries, Black
About this product
The Ajax FireProtect 2 SB (Heat/Smoke/CO) Jeweller, article code 52257.150.BL1 in black, is a wireless combined heat, smoke and CO detector with sealed batteries. It detects smoke, dangerous temperatures and carbon monoxide indoors, sounds an 85 dB in-built siren and reports alarms by Jeweller radio to a hub up to 1,700 m away in an open space.
Key features
- Three sensors in one: smoke sensor, heat sensor and CO (carbon monoxide) sensor

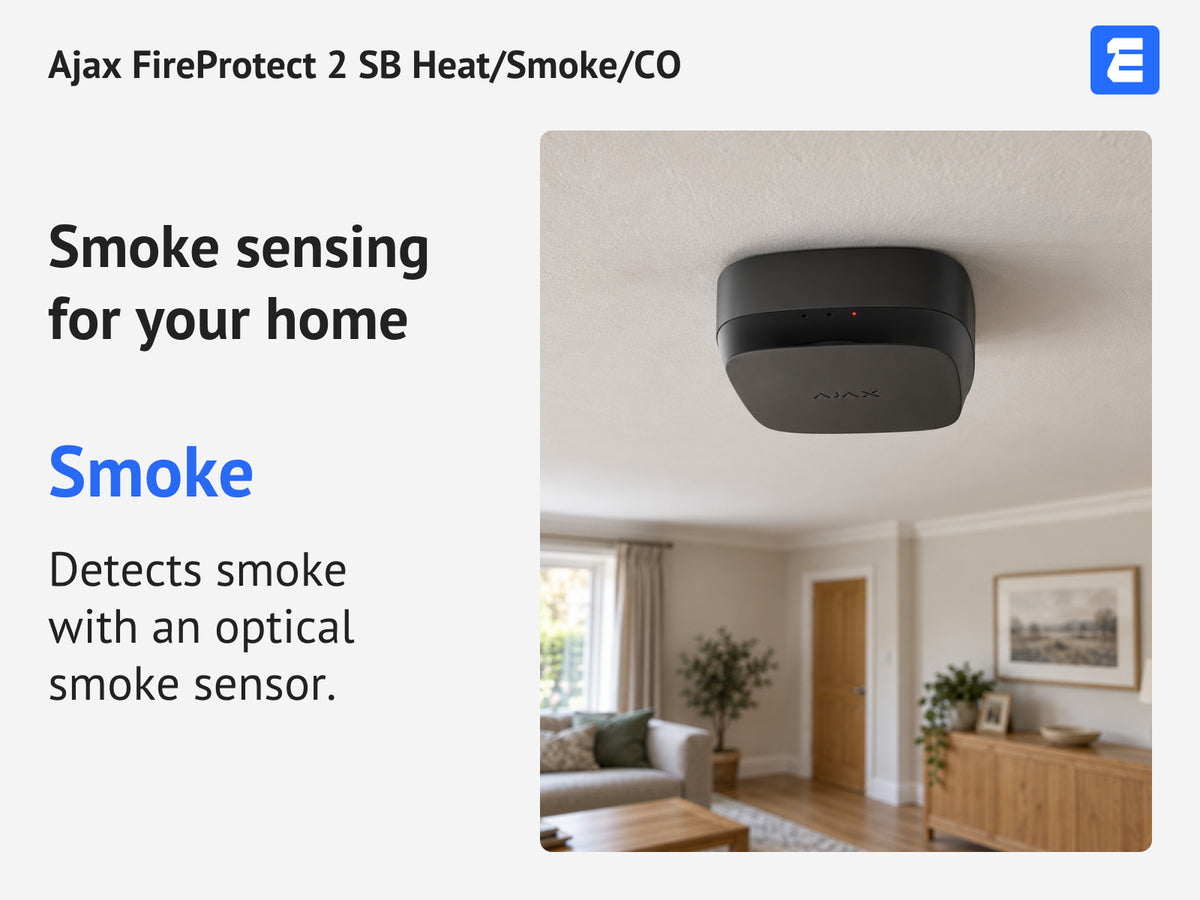

- Double-spectrum optical smoke sensor that does not react to water vapour
- Heat sensing to the requirements for Class A1R heat detectors (EN 54-5 and BS 5446-2)
- Chemical CO sensor with accumulated-dose alarm thresholds

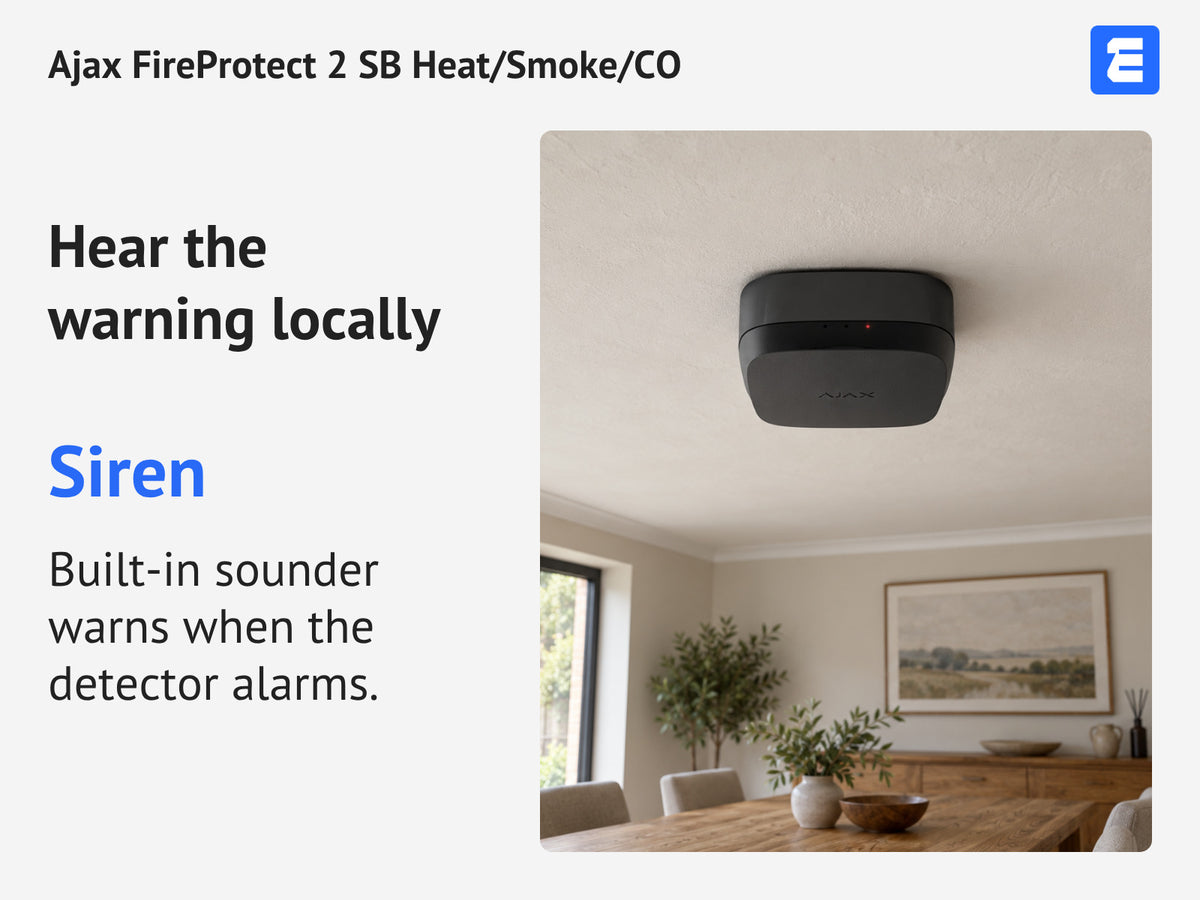

- In-built siren: 85 dB at a distance of 3 meters
- 2 non-replaceable lithium batteries with 10 years of battery life
- Jeweller radio communication range up to 1,700 m in an open space
- Tamper alarm on attempts to detach the detector or remove the mounting panel
Frequently asked questions
What does the FireProtect 2 SB (Heat/Smoke/CO) Jeweller detect?
It has a smoke sensor, a heat sensor and a CO (carbon monoxide) sensor, so one detector covers smoke, dangerous temperatures and carbon monoxide.
Can the batteries be replaced?
No. It runs on 2 non-replaceable lithium batteries with 10 years of battery life. After 10 years of operation, the detector must be replaced with a new one.
How loud is the siren?
The in-built siren has a volume of 85 dB at a distance of 3 meters.
What is the wireless range?
Radio communication range is up to 1,700 m between the detector and a hub (or radio signal range extender) in an open space, using Jeweller communication technology.
Can it be installed outdoors?
No. The device is designed only for indoor installation, with an operating temperature range from 0 °C to +50 °C and protection class IP20.
What is in the box?
The FireProtect 2 SB (Heat/Smoke/CO) Jeweller, a SmartBracket mounting panel, an installation kit and a Quick Start Guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 52257.150.BL1 |
| Manufacturer Part Number (MPN) | 52257.150.BL1 |
| Sensitive elements | smoke sensor, heat sensor, CO (carbon monoxide) sensor |
| Smoke sensitive element | double-spectrum optical sensor |
| Heat sensitive element | to the requirements for Class A1R heat detectors (EN 54-5 and BS 5446-2) |
| High temperature alarm | at temperatures above 64°C |
| Temperature spike alarm | when the temperature rises more than 10°C in 1 minute or less |
| CO sensitive element | chemical CO sensor |
| CO accumulated dose alarm | more than 50 ppm (0.005%) — no more than in 90 minutes; more than 100 ppm (0.01%) — no more than in 40 minutes; more than 300 ppm (0.03%) — no more than in 3 minutes |
| Sensor life | 10 years |
| In-built siren | volume 85 dB at a distance of 3 meters |
| Communication | Jeweller communication technology |
| Radio frequency bands | 866.0 – 866.5 MHz; 868.0 – 868.6 MHz; 868.7 – 869.2 MHz; 905.0 – 926.5 MHz; 915.85 – 926.5 MHz; 921.0 – 922.0 MHz (depends on the region of sale) |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m (between the detector and a hub or radio signal range extender, in an open space) |
| Detection of communication failure | within 15 minutes (depends on the settings for the number of undelivered data packages) |
| Polling interval | 300 seconds |
| Power supply | 2 non-replaceable lithium batteries |
| Battery life | 10 years |
| Dimensions | 124 × 124 × 45 mm |
| Weight | 270 g |
| Operating temperature range | from 0 °C to +50 °C |
| Operating humidity | up to 80% |
| Protection class | IP20 |
| Complete set | FireProtect 2 SB (Heat/Smoke/CO) Jeweller; SmartBracket mounting panel; Installation kit; Quick Start Guide |
| Colour | Black |
