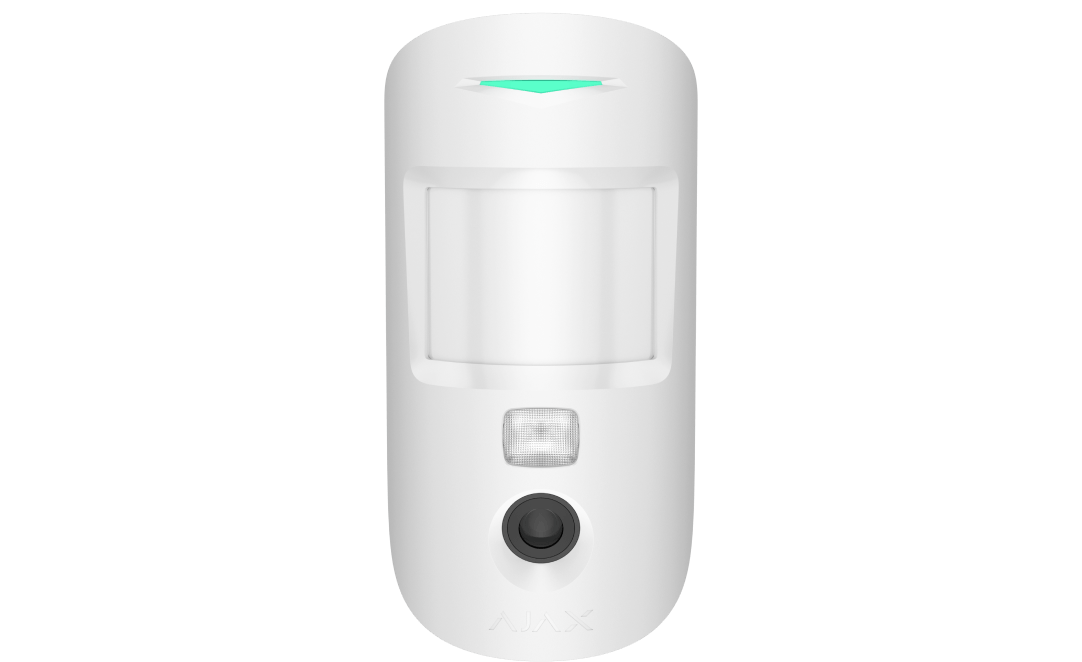

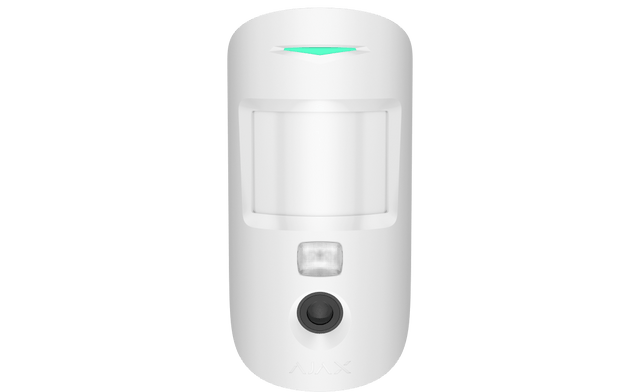

Ajax 132783.23.WH1 Wireless PIR Motion Detector, Photo by Alarm, Up to 12 m Detection
About this product
The Ajax MotionCam U Jeweller (132783.23.WH1, White) is a wireless PIR motion detector that takes photos by alarm, designed for indoor use only. It detects movement up to 12 m away when installed at a height of 2.4 m, and its built-in camera is activated if the detector is armed and movement is detected.
Key features
- PIR sensor with motion detection up to 12 m when installed at a height of 2.4 m
- Horizontal motion detection angle of 88.5°
- Built-in camera takes photos by alarm, with adjustable resolution of 640 × 480, 320 × 240 (by default) or 160 × 120 px
- IR illumination for night photography and low-light conditions
- Pet immunity: weight up to 20 kg, height up to 50 cm
- Radio communication range up to 1,700 m to a hub (or a range extender) in an open space
- Runs on 2 × CR123A batteries (pre-installed), with a calculated battery life of up to 4 years
- Tamper alarm on attempts to detach the device from the surface or remove it from the mounting panel
Frequently asked questions
How far does the MotionCam U Jeweller detect motion?
Up to 12 m when installed at a height of 2.4 m, with a horizontal detection angle of 88.5°.
When does it take photos?
The built-in camera is activated if the detector is armed and movement is detected. It can take a series of 1 to 5 images at 320 × 240 px or 160 × 120 px, or 1 to 3 images at 640 × 480 px.
How long does a photo take to arrive?
Up to 7 s at 160 × 120 px, up to 9 s at 320 × 240 px and up to 20 s at 640 × 480 px resolution. The time depends on the image resolution selected in the device settings.
Is it pet friendly?
It has pet immunity for animals with a weight up to 20 kg and a height up to 50 cm.
What batteries does it use and how long do they last?
It uses 2 × CR123A batteries, pre-installed, with a calculated battery life of up to 4 years.
Can it be installed outdoors?
No. The device is designed for indoor use only, and its protection class is IP50, IK04.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 132783.23.WH1 |
| Manufacturer Part Number (MPN) | 132783.23.WH1 |
| Sensitive element | PIR sensor |
| Motion detection distance | up to 12 m (when installed at a height of 2.4 m) |
| Motion detection angle | horizontal: 88.5° |
| Motion detection speed | from 0.3 to 2 m/s |
| Sensitivity | 3 levels |
| Pet immunity | weight: up to 20 kg; height: up to 50 cm |
| False alarm prevention | SmartDetect |
| Temperature compensation | Effective movement detection in temperatures from −10 °C to +40 °C |
| Adjustable photo resolution | 640 × 480 px; 320 × 240 px (by default); 160 × 120 px |
| Series of pictures | from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px; from 1 to 3 images with a resolution of 640 × 480 px |
| Frequency bands | 868.0–868.6 MHz |
| Radio communication range | up to 1,700 m (between the device and a hub or a range extender, in an open space) |
| Batteries | 2 × CR123A (pre-installed) |
| Calculated battery life | up to 4 years |
| Dimensions | 135 × 70 × 60 mm |
| Weight of the white device | 170 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50, IK04 |
| Complete set | MotionCam U Jeweller; SmartBracket mounting panel with holding screw; 2 × CR123A battery (pre-installed); Installation kit; Quick start guide |
| Colour | White |
