Ajax 132784.23.BL1 Wireless PIR Motion Detector, Photo Verification
About this product

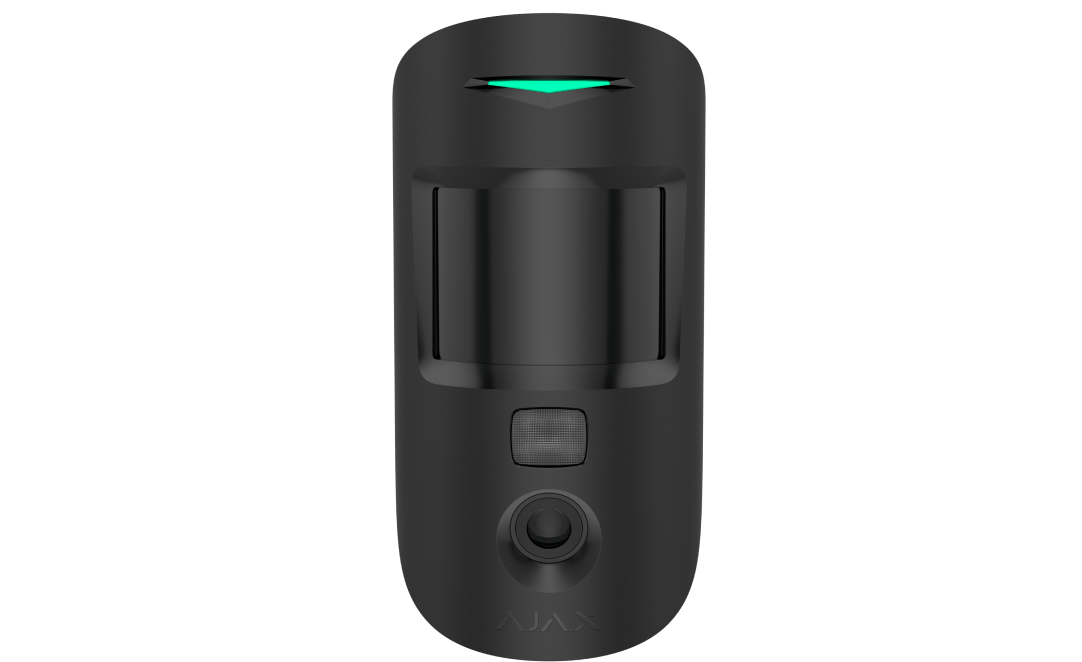

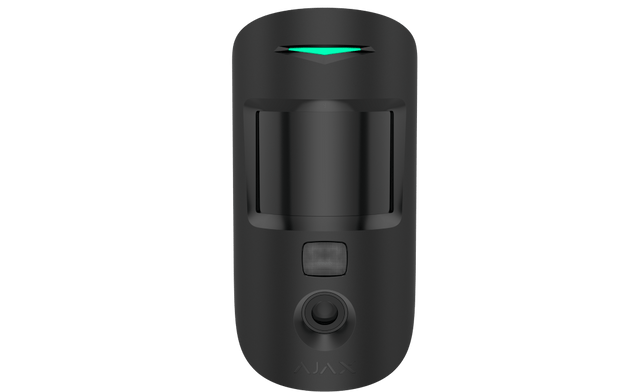

The Ajax MotionCam U Jeweller (132784.23.BL1, Black) is a wireless PIR motion detector that takes photos by alarm, for Ajax security systems. It detects movement up to 12 m away when installed at a height of 2.4 m, and its built-in camera captures photos when the detector is armed and movement is detected, sent over the Wings radio technology.
Key features
- PIR detection distance up to 12 m (installed at a height of 2.4 m)
- Horizontal detection angle 88.5°
- Photo by alarm: 640 × 480, 320 × 240 (by default) or 160 × 120 px, with HDR and IR illumination
- Pet immunity: weight up to 20 kg, height up to 50 cm
- Jeweller radio range up to 1,700 m in an open space
- 2 × CR123A batteries pre-installed, calculated battery life up to 4 years
- SmartDetect false alarm prevention algorithm
- Protection class IP50, IK04
Frequently asked questions
How long do the batteries last in the MotionCam U Jeweller?
Calculated battery life is up to 4 years from the 2 × CR123A batteries, which come pre-installed.
Will pets set it off?
Pet immunity covers animals with a weight up to 20 kg and a height up to 50 cm.
What resolution are the alarm photos?
Photo resolution is adjustable to 640 × 480 px, 320 × 240 px (by default) or 160 × 120 px, with HDR and IR illumination for low-light conditions.
How far can it be from the hub?
Radio communication range is up to 1,700 m between the device and a hub (or a range extender) in an open space.
Can it be fitted outdoors?
No. The device is designed for indoor use only, with protection class IP50, IK04.
What comes in the box?
The detector, a SmartBracket mounting panel with holding screw, 2 × CR123A batteries (pre-installed), an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 132784.23.BL1 |
| Manufacturer Part Number (MPN) | 132784.23.BL1 |
| Sensitive element | PIR sensor |
| Motion detection distance | up to 12 m (when installed at a height of 2.4 m) |
| Motion detection angle | horizontal: 88.5° |
| Motion detection speed | from 0.3 to 2 m/s |
| Sensitivity | 3 levels |
| Pet immunity | weight: up to 20 kg; height: up to 50 cm |
| False alarm prevention | SmartDetect |
| Adjustable photo resolution | 640 × 480 px; 320 × 240 px (by default); 160 × 120 px |
| Communication technology | Jeweller (commands, alarms, events); Wings (photo verifications) |
| Frequency bands | 868.0–868.6 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio communication range | up to 1,700 m (in an open space) |
| Communication loss detection | after 36 s |
| Batteries | 2 × CR123A (pre-installed) |
| Calculated battery life | up to 4 years |
| Dimensions | 135 × 70 × 60 mm |
| Weight of the black device | 157 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50, IK04 |
| Colour | Black |
