Introduction to the All‑Rack 24‑Port Cat6 Patch Panel and its key features

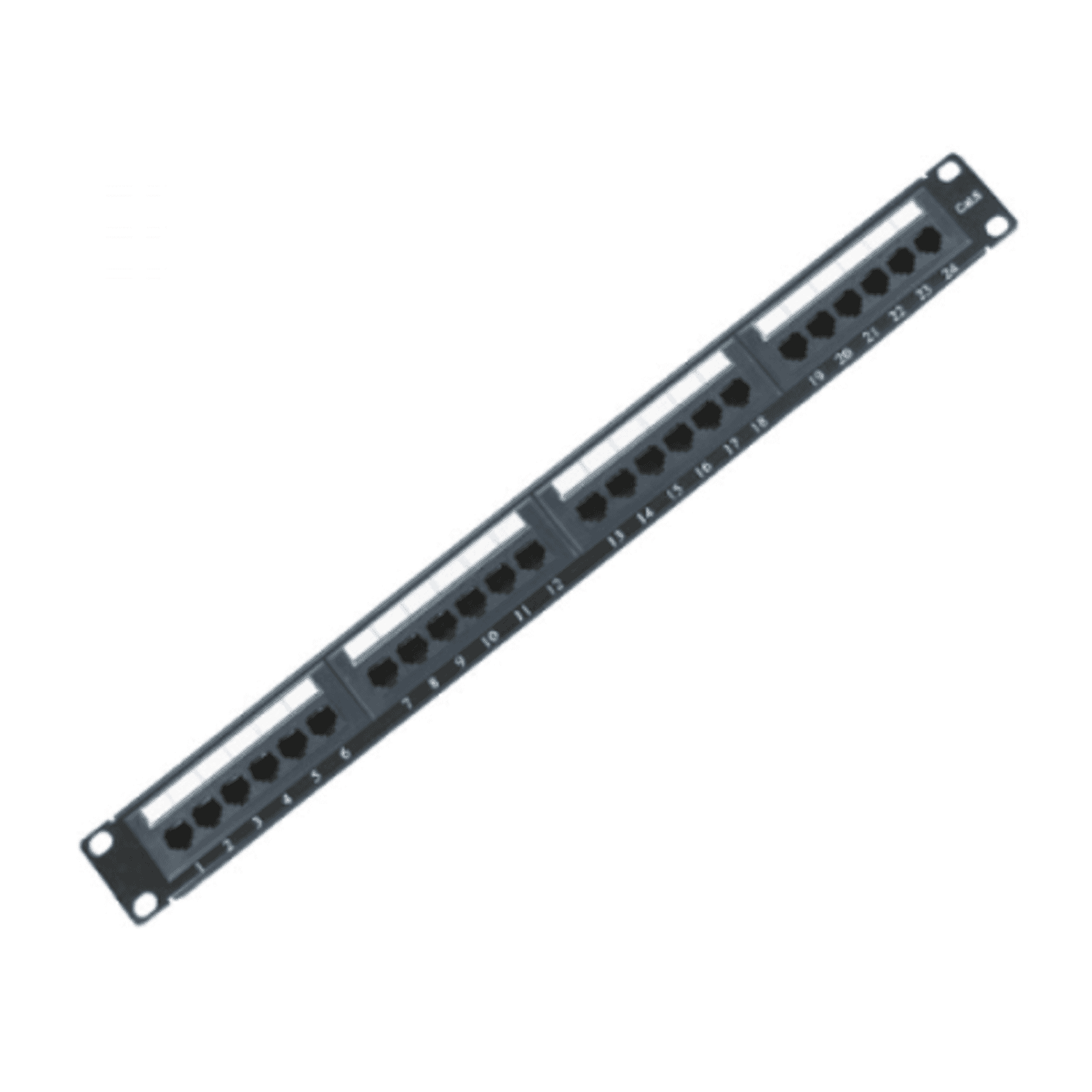

All‑Rack 24‑Port Cat6 Patch Panel (PNL24ABCAT6)is a straightforward, no-nonsense 1U rackmount panel designed to centralise and organise up to 24 Ethernet runs in a standard 19" rack or cabinet. Built for Category 6 performance and rear IDC (110/Krone style) punch‑down termination, this panel delivers a neat front‑facing RJ45 port presentation with numbered ports for easy identification and labelling.
Detailed description of the product's specifications and benefits
The PNL24ABCAT6 is engineered to provide reliable Cat6 performance across 24 ports. Key specifications include:
- Port count:24 front‑facing RJ45 ports supporting unshielded Cat6 (uTP) cabling.
- Termination method:Rear IDC (punch‑down) termination, using 110/Krone style blocks for fast mass termination.
- Mounting:Standard 19" rack, 1U height for efficient rack space usage.
- Presentation:Front port numbering for straightforward labelling and documentation.
Benefits of the PNL24ABCAT6 stem from its simplicity and compatibility with common installation practices. Rear IDC termination speeds up the process of connecting multiple conductors because installers can punch down several cables quickly without soldering or individual crimping. The 1U form factor conserves rack space while providing a clean, front‑accessible set of ports for patching between switches, routers and wall outlets. Numbered ports reduce human error during moves, adds and changes and help maintain accurate network documentation.
Use cases and scenarios where the product excels
The PNL24ABCAT6 is well suited to a range of environments where structured cabling clarity and cost effectiveness matter. Typical use cases include:
- Small office networks:Centralising up to 24 wall drops from a floor or small office into a single patch panel for neat presentation and easy connection to a single switch or multiple switches using short patch cords.
- Branch and remote sites:Economical, easy‑to‑install panels for branch offices and retail locations where installers need to terminate multiple cables quickly with consistent results.
- Server rooms and comms cabinets:Neat front‑facing ports and port numbering make it simple to manage device connections in compact racks, particularly where space is at a premium and a 1U footprint is preferred.
- Installer and DIY upgrades:Suitable for certified installers and competent DIYers working on structured cabling upgrades — rear IDC termination eliminates the need for crimping 24 individual RJ45 plugs for each run, saving time during mass installs.
- Temporary or flexible environments:For pop‑up events, temporary offices or lab setups, a 24‑port Cat6 panel offers a balance of scale and convenience without high cost or complexity.
For installations that require shielded cabling, higher bandwidths (10GBASE‑T at full distance), or integrated cable management features (vertical managers, angled panels, integrated rear cable retention), consider complementary or alternative products; however, for straightforward Cat6 deployments the All‑Rack panel covers the most common needs.
Comparisons with similar products in the market
When choosing a patch panel, buyers typically weigh factors such as termination style, shielding, build quality, certification and price. The All‑Rack 24‑Port Cat6 panel compares as follows:
- Rear IDC vs keystone/field‑terminable panels:Rear IDC panels like the PNL24ABCAT6 offer fast punch‑down termination and predictable pair alignment. Keystone panels provide flexibility to mix port types (e.g. HDMI, USB, voice) but require keystone jacks and may add cost. For pure Cat6 Ethernet runs, IDC termination is a time‑efficient choice.
- Unshielded vs shielded panels:The PNL24ABCAT6 is designed for uTP Cat6 cable. Shielded panels are preferable in high EMI environments or where shielded cabling is specified; they typically cost more and require grounded installation practices.
- Price vs premium brand panels:Compared to higher‑end branded panels with extensive certification documentation, thicker metal finishes and gold‑plated contacts, the All‑Rack panel is positioned as an economical, practical option. If you require vendor traceability, extended warranties or guaranteed contact plating details, a premium product might be more appropriate.
- Angled vs flat patch panels:Angled panels improve cable routing and reduce bend radius for front‑mounted switch connections, while the All‑Rack panel’s flat design is compact and cost effective. If rear cable management and tidy front routing are priorities, pair this panel with separate horizontal managers or brush panels.
Ultimately, the All‑Rack PNL24ABCAT6 is comparable to many mid‑market 24‑port Cat6 patch panels: it covers the standard features most installers expect and offers a competitive price for projects that don’t require specialist materials or certifications.
Customer testimonials and reviews
That said, feedback commonly reported by installers using similar rear IDC Cat6 panels includes the following themes:
- "Fast termination — saves time on site compared with soldering or individually crimping RJ45 plugs."
- "Neat presentation — front numbering makes it easy to identify ports during moves and troubleshooting."
- "Requires good cable management behind the rack — recommend pairing with cable ties or horizontal managers to reduce strain on IDC terminations."
These sentiments reflect typical strengths and practical considerations for rear IDC Cat6 panels.
Installation notes, compliance and practical tips
Before installation, confirm mechanical dimensions, contact plating and certification claims from the manufacturer datasheet. Follow standard cabling best practices: maintain correct pair untwist lengths, respect bend radii, and use proper punch‑down tools. Isolate powered equipment when terminating live circuits and ensure earthing/grounding practices are followed where applicable, especially if you later deploy shielded components in the same cabinet.
Conclusion: why this product is a great choice
The All‑Rack 24‑Port Cat6 Patch Panel PNL24ABCAT6 is a practical, cost‑effective solution for organisations seeking a tidy, easy‑to‑manage termination point for up to 24 Cat6 Ethernet runs. Its rear IDC punch‑down termination accelerates installation, the 1U 19" rackmount profile conserves valuable rack space, and the front‑facing numbered RJ45 ports simplify everyday network operations.
For many typical Cat6 installations, the All‑Rack PNL24ABCAT6 offers a reliable balance of performance, convenience and value.
