About this product

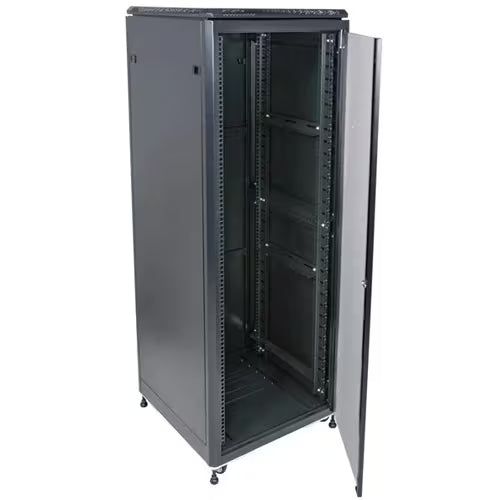

The All-Rack CAB426X6 is a 42U floor standing cabinet measuring 600mm (w) x 600mm (d), in black RAL9005. It has a tempered lockable glass door, a lockable rear door, lockable and removable side panels and fully adjustable front and rear mounting rails, and comes pre-built as standard.
Key features
- 42U, 600mm (w) x 600mm (d)
- Tempered lockable glass door; doors have a 180 degree opening angle
- Lockable rear door and lockable, removable side panels
- Front and rear mounting rails are fully adjustable, in quarter inch increments
- Static loading capacity of 800kg
- Useable depth of 550mm
- Cable entry through 1 x removable blank panel on the roof and 7 x removable blank panels on the base
- Comes pre-built as standard
Frequently asked questions
What size is the CAB426X6?
It is a 42U cabinet measuring 600mm (w) x 600mm (d), with a useable depth of 550mm.
How much weight can the cabinet hold?
The static loading capacity is 800kg.
Does the cabinet come assembled?
Yes. It comes pre-built as standard.
What fixings are needed to mount equipment?
M6 cagenuts are required to mount equipment to the uprights.
Are the doors and side panels lockable?
Yes. The doors and side panels are lockable, and the side panels are also removable.
Where do cables enter the cabinet?
Cable entry is through 1 x removable blank panel on the roof and 7 x removable blank panels on the base.
Specifications
Specifications
| Brand | All-Rack |
|---|---|
| Model | CAB426X6 |
| Manufacturer Part Number (MPN) | CAB426X6 |
| Size | 42U 600mm (w) X 600mm (d) |
| Static loading capacity | 800kg |
| Useable depth | 550mm |
| Net weight | 83kg |
| Gross weight | 86kg |
| Doors | 180 Degree opening angle, toughened glass as standard |
| Security | Lockable Doors and side Panels |
| Side panels | Lockable and removable |
| Cable entry | 1 x removable blank panel on the roof, 7 x removable blank panels on the base |
| Uprights | Front and rear mounting rails are fully adjustable, M6 cagenuts are required |
| Build | Pre-built as standard |
| Colour | Black |
