Altron SB1-1000PM Parapet Mounted Swivel Arm Bracket, 1m Arm
About this product

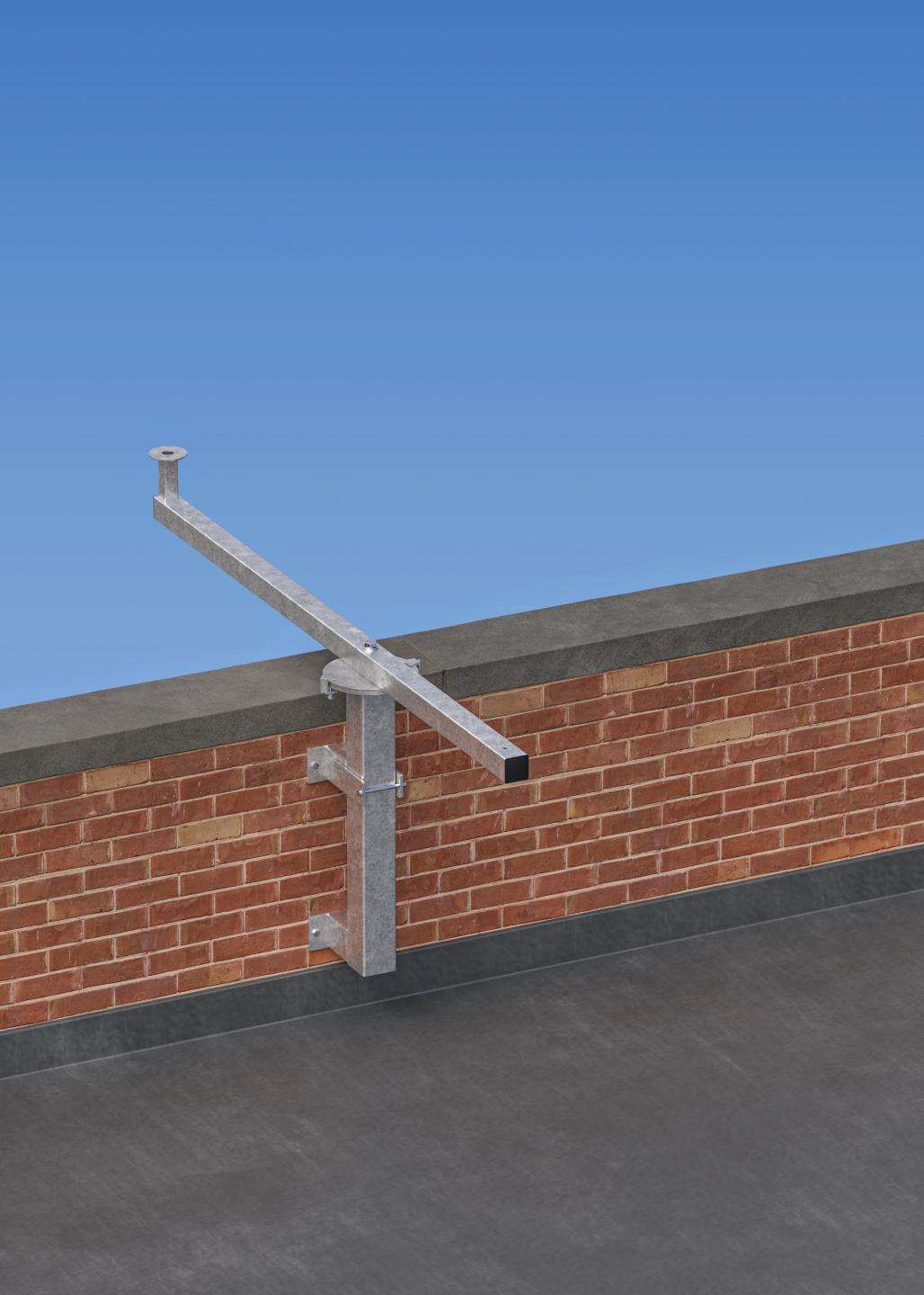

The Altron SB1-1000PM is a parapet mounted swivel arm bracket with a 1m arm, for mounting CCTV cameras on roof parapets. The swivel arm locks solidly in the operating position and can be brought back within the parapet, so cameras can be serviced safely within the roof space.
Key features
- 1m swivel arm
- Max. load capacity 25kgs / 0.25m2 (arm length up to 1.5m)
- Swivel plates and double clamping arrangement lock the arm in the operating position
- Adjustable top wall bracket for accurate alignment with brick courses
- Standard 101.6 PCD camera mount fixing holes
- High tensile steel, hot dip galvanised
- Stainless steel grade A2 and galvanised grade 8.8 fixings
Frequently asked questions
What arm length does the SB1-1000PM have?
The SB1-1000PM has a 1m arm.
How much weight can the bracket carry?
Max. load capacity for arm lengths up to 1.5m is 25kgs / 0.25m2. The product head load must not be exceeded.
What is the minimum parapet height?
The minimum parapet height is 1100mm.
Can it be fitted to a brick parapet?
Parapets must be of solid construction, preferably pre-cast concrete or steel-framed. For brick built parapets, single skin construction is not suitable, nor is brickwork that is not in good condition.
How is the camera serviced?
The swivel arm is unlocked from its operating position and brought back within the parapet, so cameras can be serviced safely within the roof space.
What camera fixing does it use?
It has standard 101.6 PCD camera mount fixing holes.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | SB1-1000PM |
| Manufacturer Part Number (MPN) | SB1-1000PM |
| Arm Length | 1m |
| Max. load capacity (arm length up to 1.5m) | 25kgs / 0.25m2 |
| Minimum parapet height | 1100mm |
| Standard post height and stand-off | 1m post height and 150mm stand-off |
| Camera mount fixing | Standard 101.6 PCD |
| Material | High tensile steel |
| Finish | Hot dip galvanised |
| Fixings | Stainless steel grade A2 and galvanised grade 8.8 |
