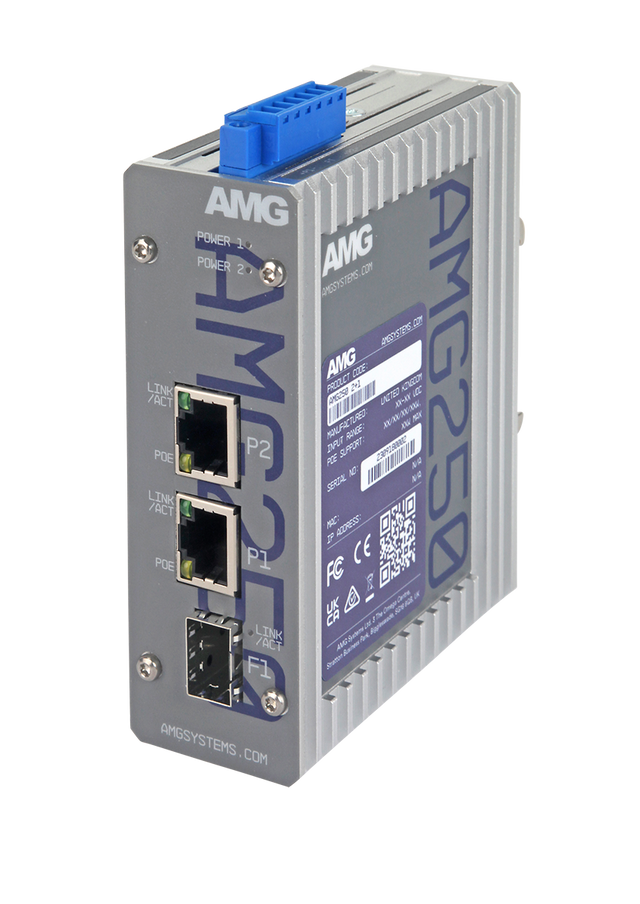

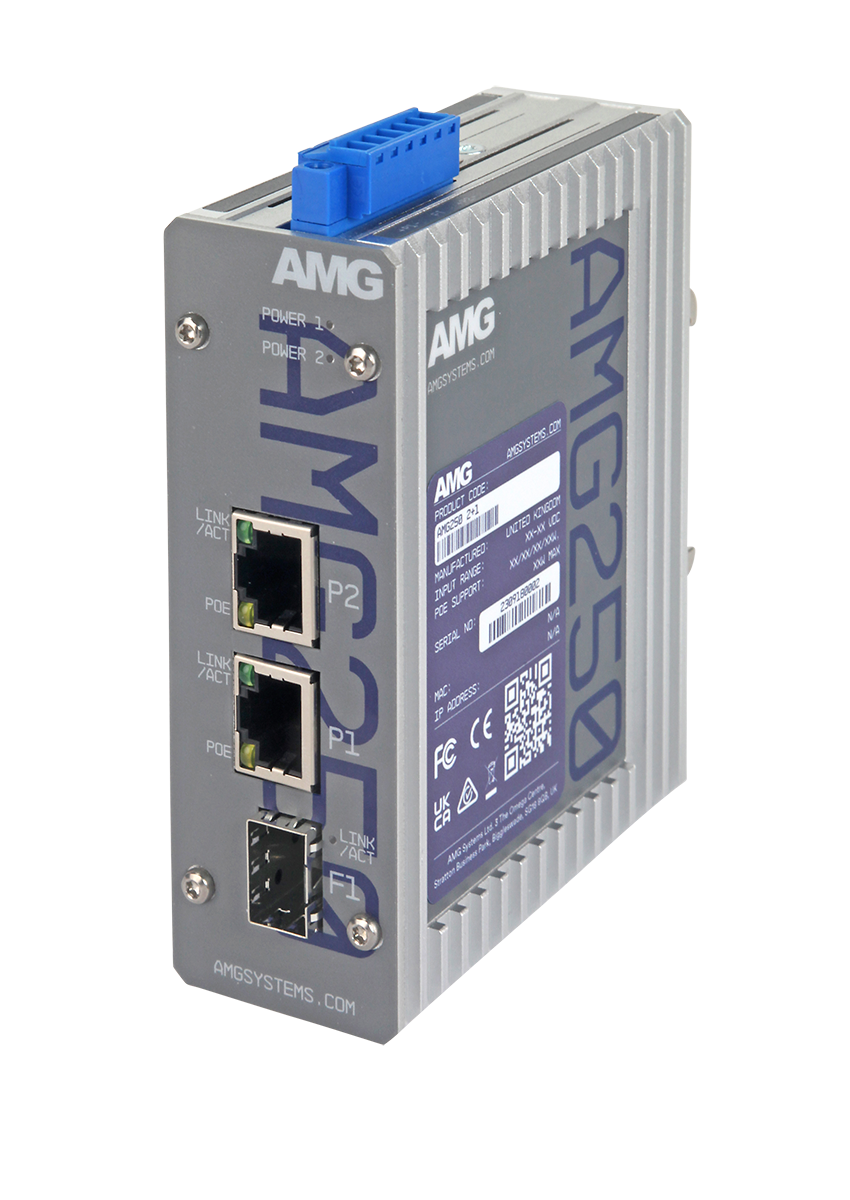

AMG Systems AMG250-2G-1S 2+1 Industrial Multirate Media Converter, 2 x RJ45 + 1 x SFP, -40°C to +75°C
About this product
The AMG Systems AMG250-2G-1S is a 2+1 industrial multirate media converter with 2 x 10/100/1000Base-T(x) RJ45 ports and 1 x 100/1000Base-Fx SFP port, in a DIN rail / wall mount housing. It is for connecting equipment to Ethernet networks over long distances using all types of fibre through the integrated SFP port, and works from -40°C to +75°C.
Key features
- 2 x 10/100/1000Base-T(x) RJ45 ports and 1 x 100/1000Base-Fx SFP port
- Multirate 100Mb/Gigabit SFP port supporting single and multimode, single or dual fibre options up to 120Km
- Dual redundant power inputs with fault relay
- Plug & Play – no need for any user configuration
- Auto-Negotiation (802.3u), Auto MDI/MDI-X and 1.5 kV isolation protection on the RJ45 ports
- -40°C to +75°C operating temperature, IP40 rating
- DIN rail or wall mount; compact size for confined spaces, including camera poles and roadside cabinets
- NDAA and TAA compliant; NEMA TS2 traffic certification
Frequently asked questions
How far can the fibre link reach?
The SFP port is multirate 100Mb/Gigabit and supports single and multimode, single or dual fibre options up to 120Km; fibre connectivity is determined by separate SFP device selection.
Does the AMG250-2G-1S supply PoE?
No. It is a non-PoE model.
How is it mounted?
On a DIN rail or a wall. A DIN rail adapter and 2x wall mounting brackets with screws are included.
What temperatures does it work in?
Operating temperature is -40°C to +75°C and storage temperature is -40°C to +85°C.
Does it need configuring?
No. It is plug & play, with no need for any user configuration, and supports Auto-Negotiation (802.3u).
-
Download
- AMG250-2G-1S Tech Sheet
Specifications
Specifications
| Brand | AMG Systems |
|---|---|
| Model | AMG250-2G-1S |
| Manufacturer Part Number (MPN) | AMG250-2G-1S |
| Ports | 2 x 10/100/1000Base-T(x) RJ45 Ports, 1 x 100/1000Base-Fx SFP Port |
| PoE | Non-PoE |
| RJ45 Port(s) Feature | 1.5 kV Isolation Protection, Auto MDI/MDI-X |
| Ethernet Standards | IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-TX & 100Base-FX), IEEE 802.3z (1000Base-X), IEEE 802.3x (Flow Control) |
| Power Inputs | 2 |
| Power Interface | 6 Pin Removable Terminal Block |
| Power Consumption (W) | 2 |
| Fault Relay | Form A, 60V @ 2A Max |
| Heat Dissipation at Max Load (BTU/h) | 7 |
| MTBF (Hours) | 2573692 |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| IP Rating | IP40 |
| Product Class | Industrial Grade |
| Housing | Anodised Aluminium |
| Cooling | Passive Cooling |
| Mounting | DIN Rail / Wall Mount |
| Width | 36 (mm) / 1.42 (in) |
| Depth | 88 (mm) / 3.46 (in) |
| Height | 107 (mm) / 4.21 (in) |
| Weight | 0.48kg / 1.06lb |
| Compliance | NDAA Compliant, TAA Compliant |
| Traffic Certification | NEMA TS2 |
