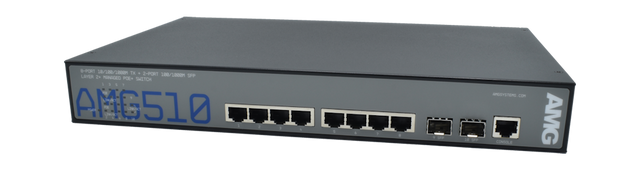

AMG Systems AMG510-8GAT-2S-P210 Commercial 10 Port Managed PoE Switch, 8 PoE Ports, 210W PoE Budget
About this product
The AMG Systems AMG510-8GAT-2S-P210 is a commercial 10 port managed switch with 8 x 10/100/1000Base-T(x) RJ45 ports carrying 802.3at 30W PoE (210W max) and 2 x 100/1000Base-FX SFP ports. Part of AMG's fully managed layer 2+ Ethernet PoE switch range for commercial network applications, it is designed for 19inch 1U rack or desktop/shelf mounting.
Key features
- 8 x 10/100/1000Base-T(x) RJ45 ports with 802.3at 30W PoE
- 210W total PoE budget
- 2 x 100/1000Base-FX SFP ports (100Mb and 1Gb supported)
- Layer 2+ management with RSTP, MSTP and ERPS for network redundancy
- IGMP v1-3 for the multicast traffic commonly used in IP CCTV deployments
- Layer 3 static routing (8 interfaces max, 32 routes max)
- 20Gbps switch fabric
- 19inch 1U rack or desktop/shelf mount
Frequently asked questions
What is the PoE budget of the AMG510-8GAT-2S-P210?
It has a total PoE budget of 210W, shared across 8 ports of 802.3at 30W PoE.
Are SFP modules included?
No. SFPs need to be ordered separately. The 2 SFP ports are dual speed, supporting 100Mb and 1Gb.
Can it be rack mounted?
Yes. It suits a 19inch 1U rack or a desktop/shelf mount and measures 330 mm wide, 210 mm deep and 44 mm high.
Is it suited to IP CCTV networks?
IGMP is supported to handle the multicast traffic commonly used in IP CCTV deployments, with IGMP snooping v1/v2/v3 and 1024 IGMP groups.
Which redundancy protocols does it support?
Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP) and Ethernet Ring Protection Switching (ERPS).
What operating temperature range does it cover?
0°C to +50°C, for commercial grade applications.
Specifications
Specifications
| Brand | AMG Systems |
|---|---|
| Model | AMG510-8GAT-2S-P210 |
| Manufacturer Part Number (MPN) | AMG510-8GAT-2S-P210 |
| Switch Fabric | 20Gbps |
| 1Gb RJ45 Ports | 8 |
| 100MB/1Gb SFP Ports | 2 |
| Total Number of Ports | 10 |
| 30W PoE Ports | 8 |
| Total PoE Budget (W) | 210 |
| Management Type | Layer 2+ |
| Management Access | SNMP, Web GUI, Telnet / SSH v2.0 / CLI |
| SNMP | v1/v2c/v3 |
| Redundancy | STP, RSTP, MSTP, ERPS |
| IGMP Groups | 1024 |
| IGMP Snooping | v1/v2/v3 (8 VLAN’s Max) |
| VLANs | 4K (802.1Q, Port Based VLAN, Private VLAN, Voice VLAN) |
| Static Routing | 8 interfaces max, 32 routes max |
| Port trunk | LACP |
| Ethernet speeds | Compliant with all IEEE 802.3 speeds (i/u/ab/z) |
| Jumbo frames | 9.6K bytes |
| Priority Queues | 8 |
| Custom User Rights | 15 Levels (20 Users Max) |
| Power Consumption (W) | 12 |
| Power Inputs | 1 |
| Power Interface | IEC C14 Socket |
| Heat Dissipation at Max Load (BTU/h) | 758 |
| MTBF (Hours) | 126424 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +80°C |
| IP Rating | IP20 |
| Product Class | Commercial Grade |
| Compliance | NDAA Compliant, TAA Compliant |
| Mounting | 19inch 1U rack or desktop/shelf mount |
| Dimensions | Width = 330 (mm), Depth = 210 (mm), Height = 44 (mm) |
