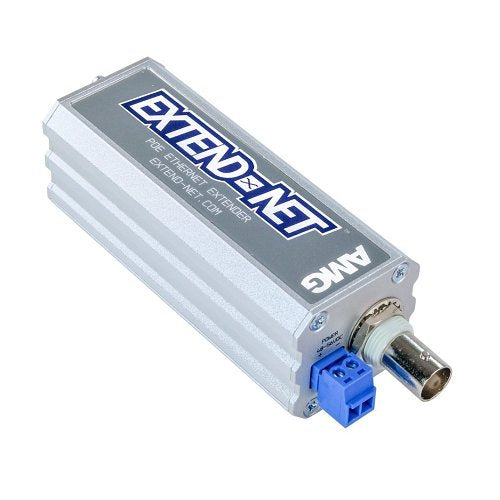

AMG Systems AMG160-1F-1EC extender over coax, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
AMG Systems AMG160-1F-1EC is an extender over coax from the AMG160 range.
AMG's Extend-Net™ industrial Ethernet extenders provide 10/100Mb Ethernet over long distances of coax, 2-wire twisted pair and UTP cables with support for pass-through 30W, 60W & 90W PoE. These single channel models feature coaxial, screw terminal or RJ45 connectors and support distances up to 1Km. Designed in a compact tube style housing that can be DIN rail or wall mounted using the included accessory brackets, the AMG160 Extend-Net™ series industrial Ethernet Extenders are ideally suited for connecting equipment to Ethernet networks over long distances using standard Coax & UTP cables.
Distances up to 550m @ 100Mb speed and 1000m @ 10Mb speed are possible over standard cables. The AMG160 Coax and 2-Wire series support IEEE802.3af 15.4W and IEEE802.3at 30W PoE pass-through while the UTP series additionally support IEEE802.3bt 90W PoE pass-through and are suitable for powering the latest PoE devices over a wide industrial operating temperature range at extended distances. A 24-56VDC local power input is provided for instances where local power is available and the maximum possible PoE level is required at the remote device but this is not required for operation when used with a PoE enabled edge device such as an IP camera as the units also support pass-through PoE powering.
Key features
- Compact size - ideal for confined spaces, including conduit, camera poles and roadside cabinets
- 40°C to +75°C temperature maintains performance in extreme conditions
- DIP switches for Local/Remote & 10/100Mb modes
- Standalone, DIN rail or wall mountable - flexible mounting options are included with every unit
- Extends Ethernet up to 550m (1,800 ft) at 100Mbps
- Extends Ethernet up to 1000m (3,280 ft) at 10Mbps
- Supports 15W & 30W PoE Pass-Through
- Integrated surge protection on Extend-Net™ port
- Unicast, Multicast & Jumbo Frames are supported along with full symmetrical bandwidth performance
- Designed in the USA & UK. Manufactured in the United Kingdom
-
Download
- AMG160-1F-1EC — Product Manual
Specifications
General information
Technical information
Environmental conditions
Interfaces/ports
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | AMG Systems |
|---|---|
| Manufacturer Part Number | AMG160-1F-1EC |
| Product Series | AMG160 |
| Product Type | Ethernet Extender |
General information
| Maximum Transfer Distance | 1000m |
|---|
Technical information
| Maximum Data Transfer Rate | 12.5Mbps |
|---|
Environmental conditions
| Operating Relative Humidity (H-H) | 5-90% |
|---|---|
| Operating Temperature (T-T) | -40-75°C |
| Storage Temperature (T-T) | -40-85°C |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
Network & communication
| Networking Standards | IEEE 802.3af, IEEE 802.3at |
|---|
Physical characteristics
| Depth | 35.00mm |
|---|---|
| Height | 32.00mm |
| Material | Anodised Aluminium |
| Width | 89.00mm |
Power description
| Input Voltage | 24-56V DC |
|---|---|
| Maximum Output Power | 30.00W |
| Power over Ethernet (PoE) | Yes |
Product information
| Mount Type | Wall Mount |
|---|---|
| Protection Type | Surge Protection |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | AMG160 Series Industrial Ethernet Extenders Over Coax With 30W POE DIN Rail Adapter Wall Mount Adapter |
Attributes
| Input Voltage | 24-56V DC |
|---|---|
| Maximum Output Power | 30.00W |
| Package Contents | AMG160 Series Industrial Ethernet Extenders Over Coax With 30W POE DIN Rail Adapter Wall Mount Adapter |
